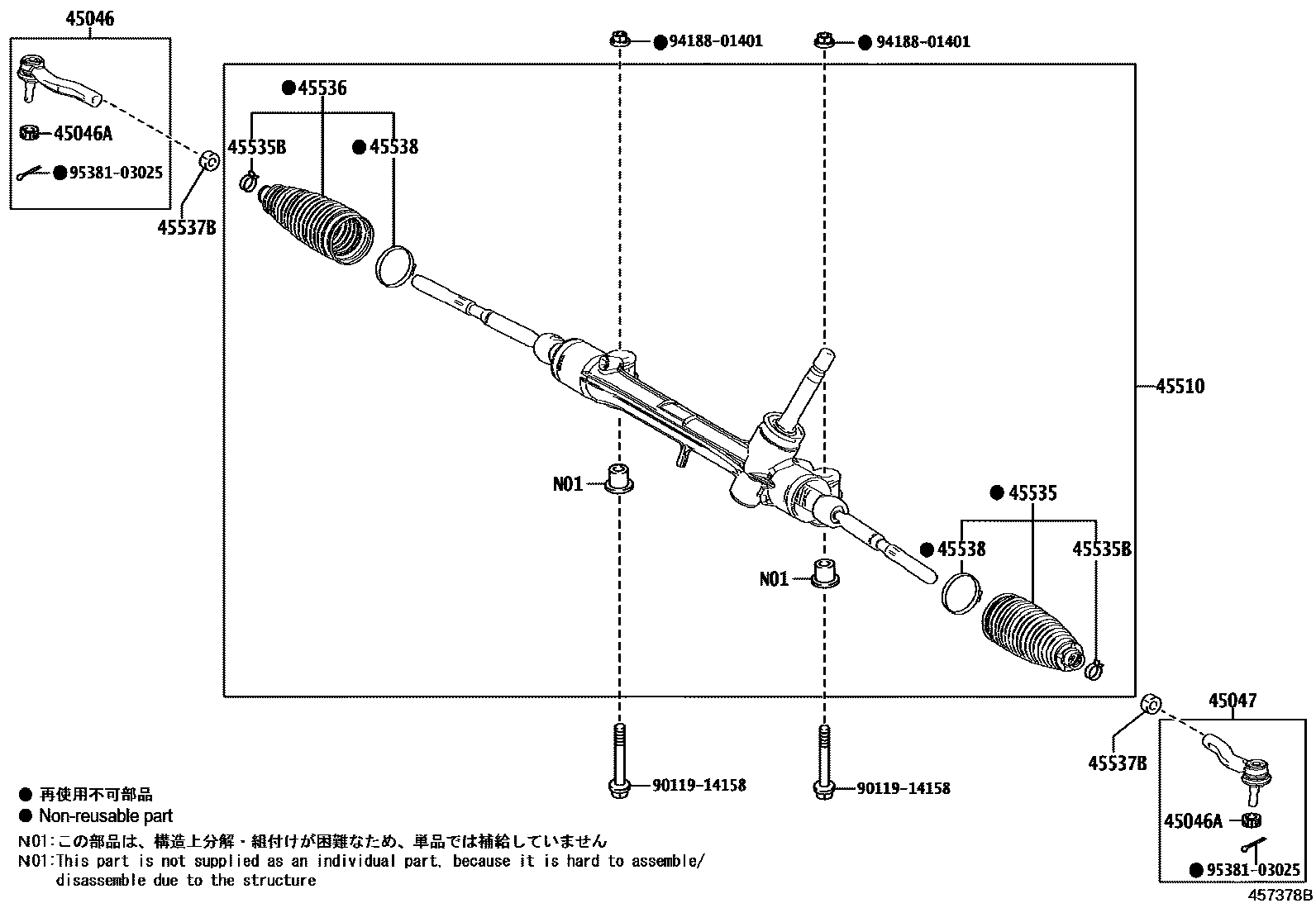

Toyota COROLLA HATCHBACK — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49255iMZEA12..CVT¥2,690201806-202209

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMZEA12..CVT¥130201806-202209

45047END SUB-ASSY, TIE ROD, LH

main45047-49195iMZEA12..CVT¥2,690201806-202209

45510GEAR ASSY, STEERING

main45510-12530iMZEA12..CVT201806-202209

main45510-12580iMZEA12202209

45535BOOT, STEERING RACK, NO.1

main45535-59075iMZEA12..CVT¥790201806-202209

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iMZEA12..CVT¥320201806-202209

45536BOOT, STEERING RACK, NO.2

main45535-59075iMZEA12..CVT¥790201806-202209

45537BNUT, RACK END LOCK

main90178-16001iMZEA12..CVT¥120201806-202209

45538RETAINER, STEERING RACK BOOT

main45538-48020iMZEA12..CVT¥240201806-202209

9011914158

main90119-14158¥430

9418801401

main94188-01401¥190

9538103025

main95381-03025¥130

12 parts on this diagram · 1 diagram in section
