Toyota COROLLA HATCHBACK — FRONT FENDER APRON & DASH PANEL

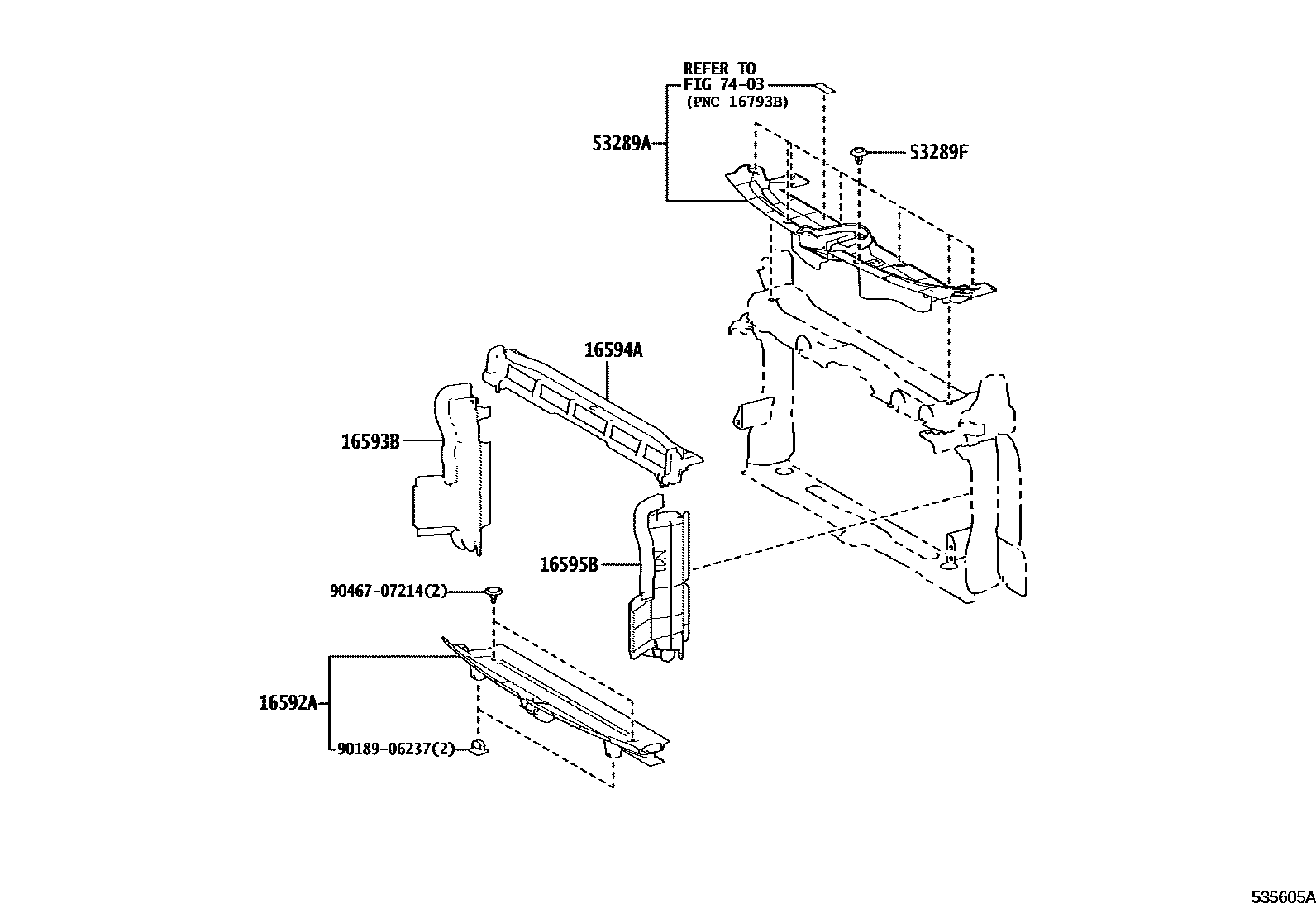

0001 1AIR GUIDE & RADIATOR SUPPORT 0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-24010iM20AFKS..MZEA12..CVT¥4,240201806-202209

sub16592-24050¥3,850

main16592-24010iM20AFKS..MZEA12..6F¥4,240201806

sub16592-24050¥3,850

main16592-24050iM20AFKS..MZEA12¥3,850202209

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-24020iM20AFKS..MZEA12..6F¥1,850201806

main16593-24020iM20AFKS..MZEA12..CVT¥1,850201806-202209

main16593-24020iM20AFKS..MZEA12¥1,850202209

16594AGUIDE, RADIATOR AIR, NO.2

main16594-24010iM20AFKS..MZEA12..CVT¥2,070201806-202209

main16594-24010iM20AFKS..MZEA12..6F¥2,070201806

main16594-24040iM20AFKS..MZEA12¥2,400202209

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-24020iM20AFKS..MZEA12..CVT¥2,000201806-202209

main16595-24020iM20AFKS..MZEA12..6F¥2,000201806

main16595-24020iM20AFKS..MZEA12¥2,000202209

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-12090iMZEA12¥4,850201806-202208

main53289-12130iMZEA12¥4,090202209

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07214iMZEA12¥70202307-202311

main90467-07217iMZEA12¥80202311

main90467-07217iMZEA12¥80202209-202307

main90467-07217iMZEA12..CVT¥80201806-202209

main90467-07217iMZEA12..6F¥80201806

7403

9018906237

main90189-06237¥100

9046707214

main90467-07214¥70

9 parts on this diagram · 3 diagrams in section
