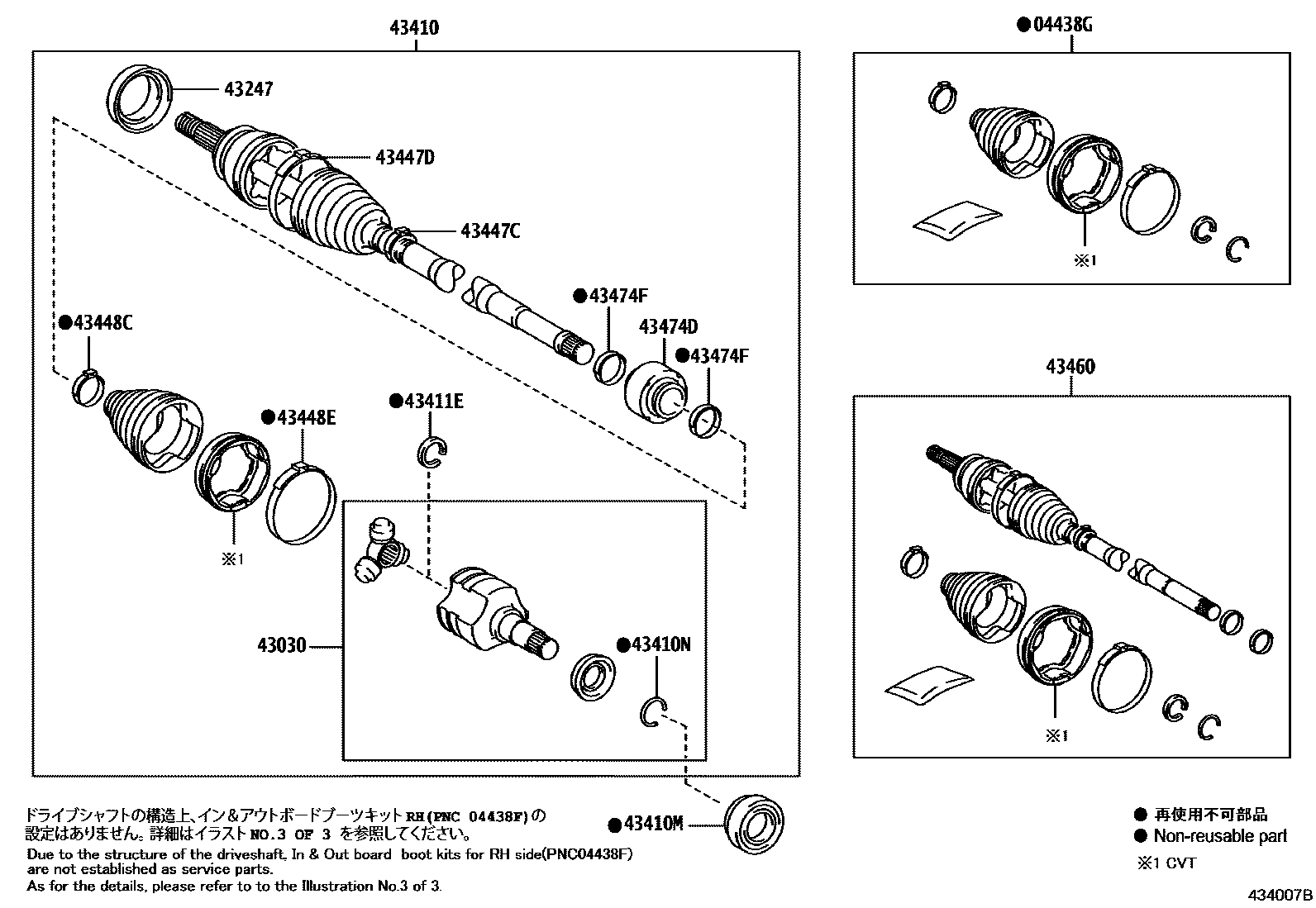

Toyota COROLLA HATCHBACK — FRONT DRIVE SHAFT
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2
(J)
43410SHAFT ASSY, FRONT DRIVE, RH
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43474DDAMPER, FRONT DRIVE SHAFT, RH
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
14 parts on this diagram · 3 diagrams in section
