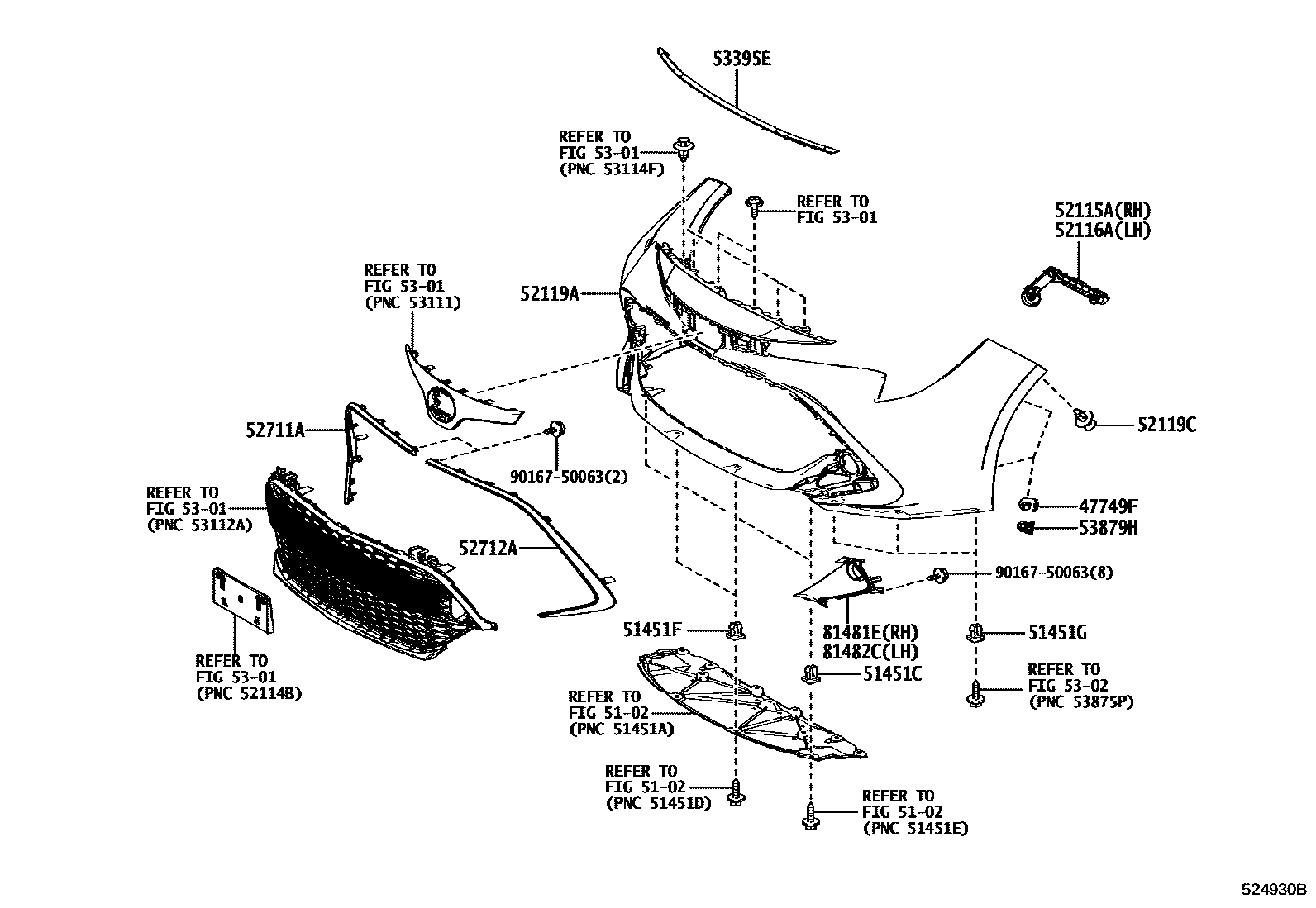

Toyota COROLLA HATCHBACK — FRONT BUMPER & BUMPER STAY

0001 1BUMPER COVER 0002 1BUMPER REINFORCEMENT 0003 1BUMPER COVER 0004 1BUMPER REINFORCEMENT

47749FCLIP, PIN HOLD

main47749-33030iMZEA12..CVT¥200201806-202209

5102

51451CGROMMET(FOR ENGINE UNDER COVER)

main90189-06237iMZEA12..CVT¥100201806-202209

51451FGROMMET, NO.1

main90189-06237iMZEA12..CVT¥100201806-202209

51451GGROMMET, NO.2

main90189-06237iMZEA12..CVT¥100201806-202209

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12520iMZEA12..CVT¥1,150201806-202209

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12470iMZEA12..CVT¥1,150201806-202209

52119ACOVER, FRONT BUMPER

main52119-12994iMZEA12..CVT¥26,900201806-202209

main52119-1A964iMZEA12¥24,400202209

PAINT REQ.

52119CCLIP, FRONT BUMPER COVER

main90467-05170iMZEA12..CVT¥80201806-202209

52711AGARNISH, FRONT BUMPER

main52711-12380iMZEA12..CVT¥4,230201806-202209

52712AGARNISH, FRONT BUMPER, LH

main52712-12060iMZEA12..CVT¥4,230201806-202209

5301

5302

53395ESEAL, HOOD TO FRONT END PANEL

main53395-12140iMZEA12..CVT¥870201806-202209

53879HRETAINER, FRONT FENDER LINER

main53879-33030iMZEA12..CVT¥270201806-202209

81481ECOVER, FOG LAMP, RH

main81481-12390iMZEA12..CVT¥2,290201806-202209

81482CCOVER, FOG LAMP, LH

main81482-12300iMZEA12..CVT¥2,290201806-202209

9016750063

main90167-50063¥60

18 parts on this diagram · 4 diagrams in section
