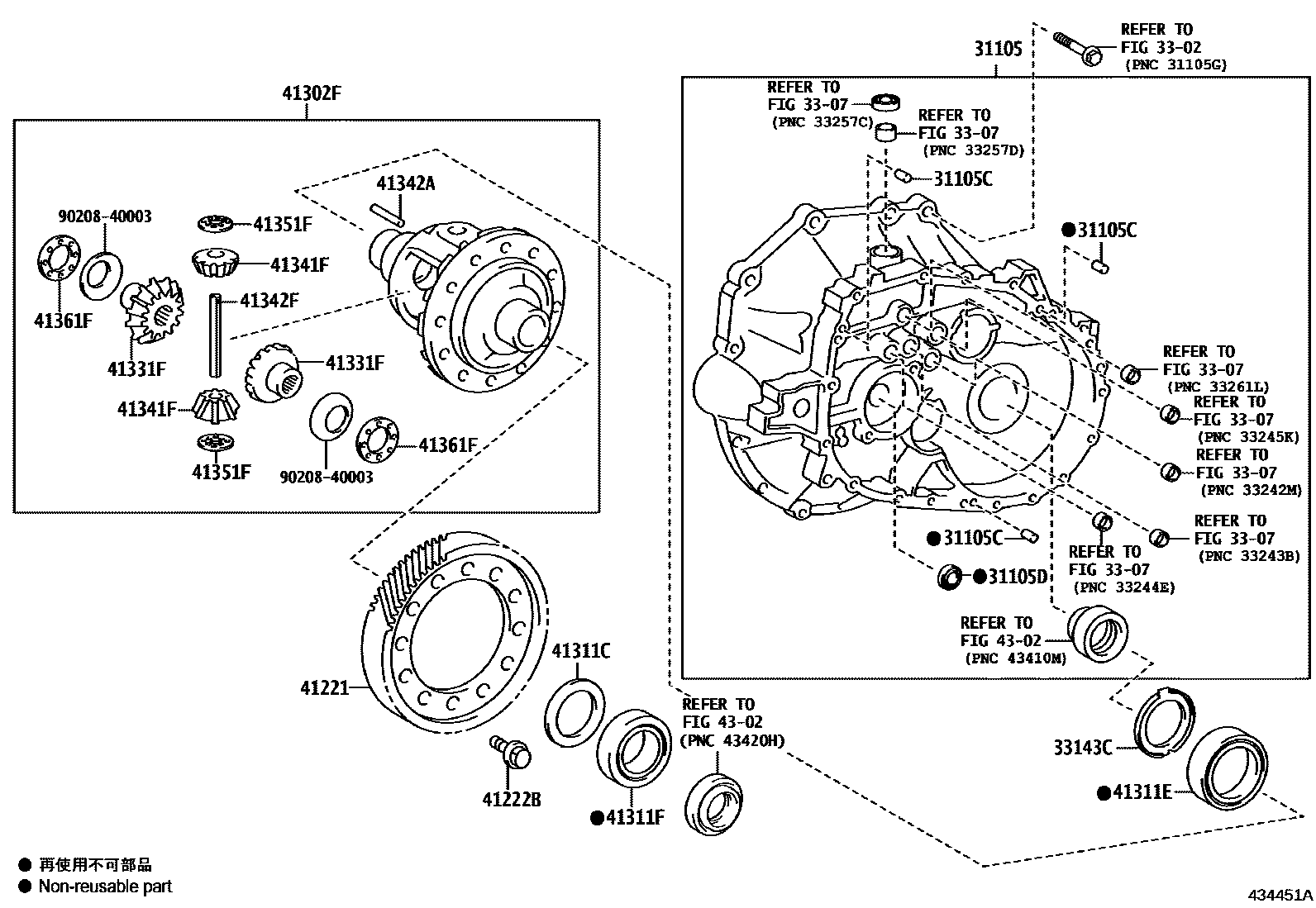

Toyota COROLLA HATCHBACK — FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
3302
3307
33143CBAFFLE, FRONT DIFFERENTIAL OIL
41221GEAR, FRONT DIFFERENTIAL RING
TOYOTA:REFER 34-01
TMH:REFER FIG.34-01
AISIN AW:REFER 34-01
AISIN AI:REFER 34-01
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.05,MARK A
T=2.10,MARK B
T=2.15,MARK C
T=2.20,MARK D
T=2.25,MARK E
T=2.30,MARK F
T=2.35,MARK G
T=2.40,MARK H
T=2.45,MARK J
T=2.50,MARK K
T=2.55,MARK L
T=2.60,MARK M
T=2.65,MARK N
T=2.70,MARK P
T=2.75,MARK Q
T=2.80,MARK R
T=2.85,MARK S
T=2.90,MARK T
T=2.075,MARK AA
T=2.125,MARK BB
T=2.175,MARK CC
T=2.225,MARK DD
T=2.275,MARK EE
T=2.325,MARK FF
T=2.375,MARK GG
T=2.425,MARK HH
T=2.475,MARK JJ
T=2.525,MARK KK
T=2.575,MARK LL
T=2.625,MARK MM
T=2.675,MARK NN
T=2.725,MARK PP
T=2.775,MARK QQ
T=2.825,MARK RR
T=2.875,MARK SS
T=1.76,MARK A
T=1.79,MARK B
T=1.82,MARK C
T=1.85,MARK D
T=1.88,MARK E
T=1.91,MARK F
T=1.94,MARK G
T=1.97,MARK H
T=2.00,MARK J
T=2.03,MARK K
T=2.06,MARK L
T=2.09,MARK M
T=2.12,MARK N
T=2.15,MARK P
T=2.18,MARK Q
T=2.21,MARK R
T=2.24,MARK S
T=2.27,MARK T
T=2.30,MARK U
T=2.33,MARK V
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
4302
9020840003
20 parts on this diagram · 2 diagrams in section
