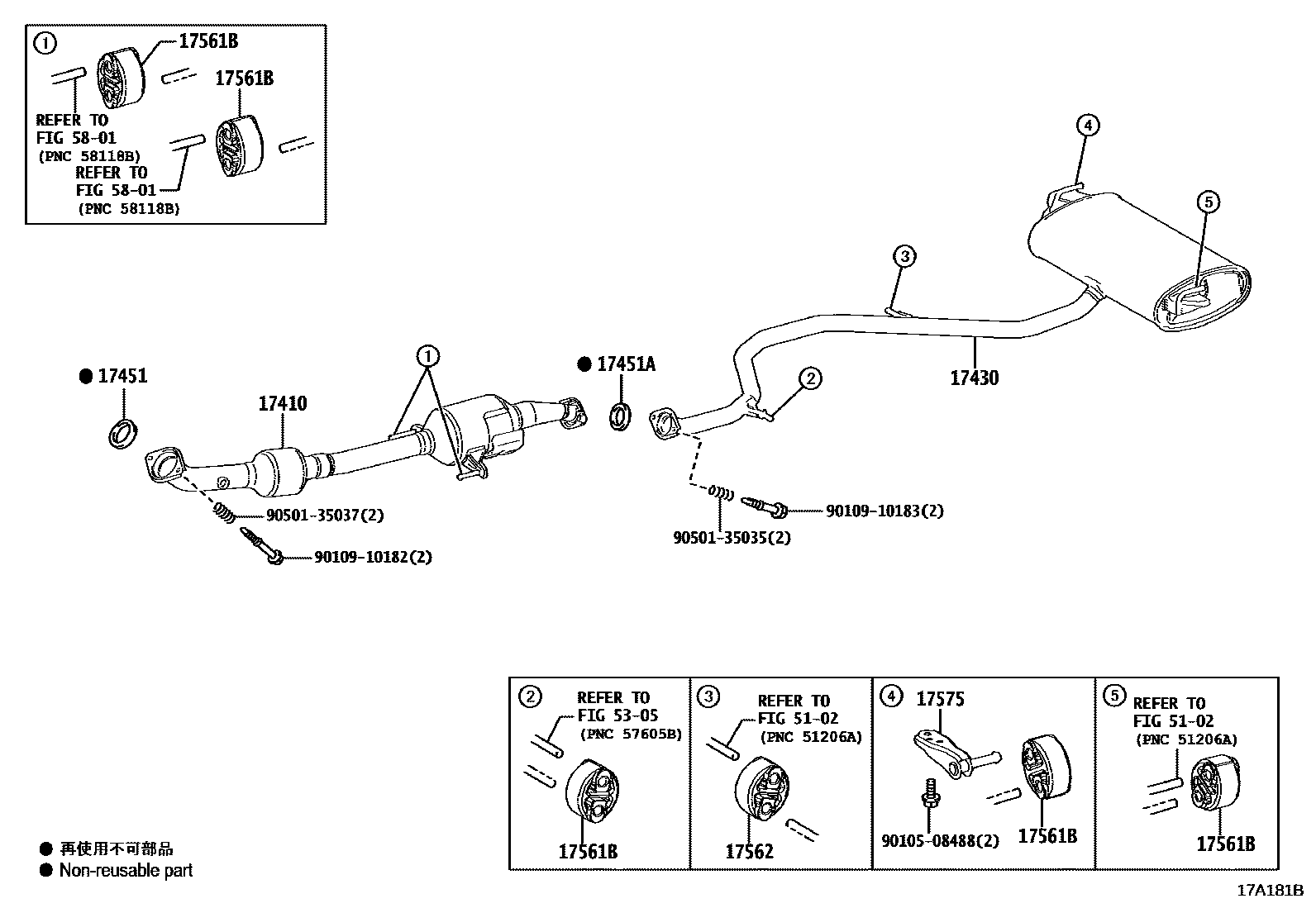

Toyota COROLLA HATCHBACK — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-24250iM20AFKS..MZEA12201806-202006

main17410-24470iM20AFKS..MZEA12..CVT202006-202308

main17410-24750iM20AFKS..MZEA12202308-202507

17430PIPE ASSY, EXHAUST, TAIL

main17430-24360iM20AFKS..MZEA12..CVT201806-202209

17451GASKET, EXHAUST PIPE

main17451-28040iM20AFKS..MZEA12..CVT¥1,510201806-202311

sub17451-28041¥1,510

main17451-28041iM20AFKS..MZEA12¥1,510202311

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042iM20AFKS..MZEA12..CVT¥790201806-202311

sub17451-23043¥720

main17451-23043iM20AFKS..MZEA12¥720202311

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040iM20AFKS..MZEA12..CVT¥670201806-202209

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-28010iM20AFKS..MZEA12..CVT¥670201806-202209

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-37030iM20AFKS..MZEA12..CVT¥590201806-202209

5102

5305

5801

9010508488

main90105-08488¥80

9010910182

main90109-10182¥190

9010910183

main90109-10183¥190

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

15 parts on this diagram · 1 diagram in section
