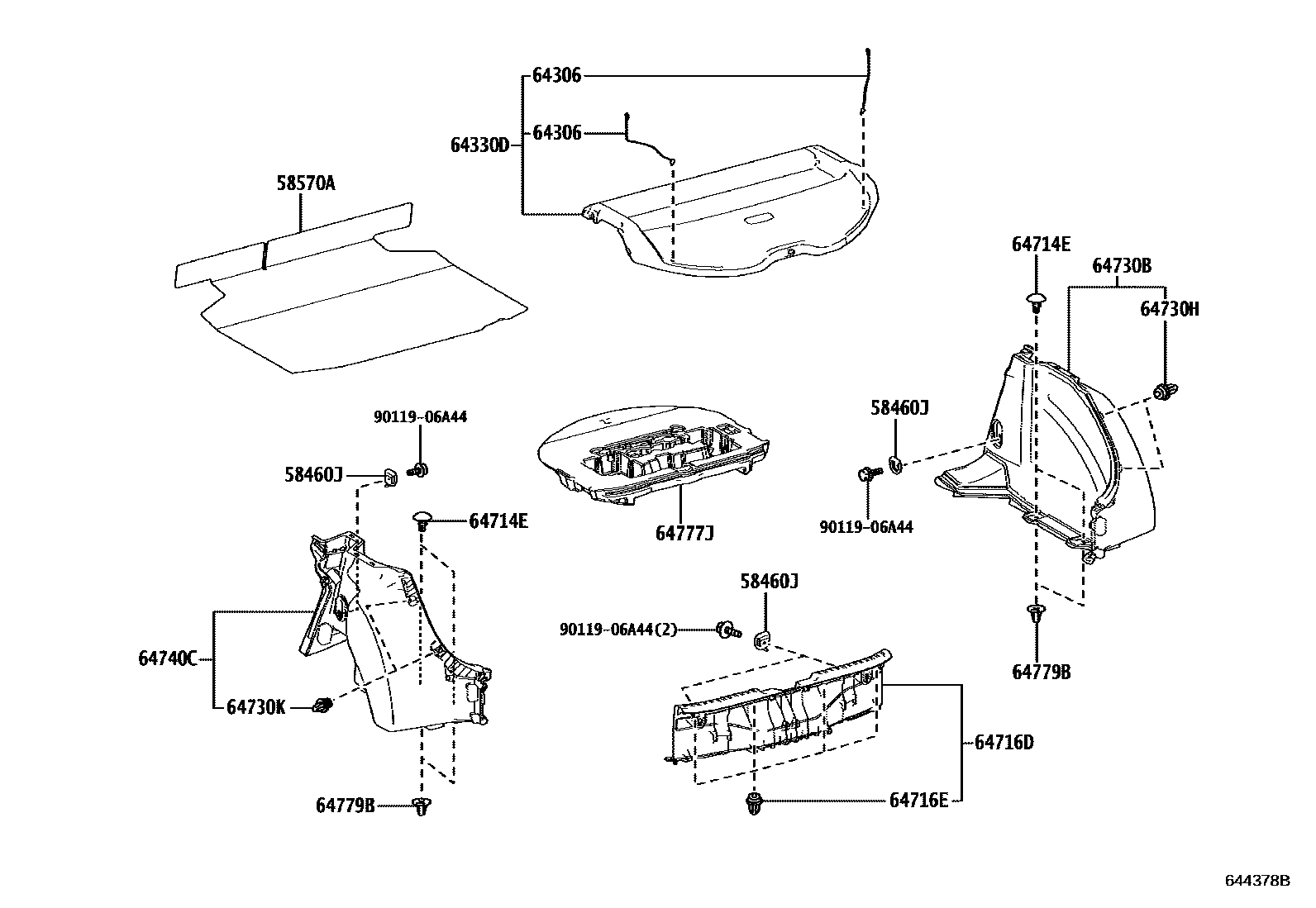

Toyota COROLLA HATCHBACK — DECK BOARD & DECK TRIM COVER

0001 1DECK BOARD(LOW FLOOR TYPE) 0002 1DECK BOARD(HIGH FLOOR TYPE)

58460JSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMZEA12..CVT¥620201806-202209

58570AMAT ASSY, REAR FLOOR

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-12130iMZEA12¥540201806-201811

main64306-12131iMZEA12..CVT¥400201812-202209

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-12C30-C1iMZEA12201806-202105

BLACK,TRIM1#,2#,3#,4#

sub64330-12C31¥10,700

main64330-12C31-C1iMZEA12..CVT202106-202209

BLACK,TRIM1#,2#,3#,4#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main64726-26010-C2iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#,3#,4#

64716DCOVER, DECK TRIM, REAR

main64716-12380-C0iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#,3#,4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10167iMZEA12..CVT¥90201806-202209

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-12490-C0iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#,3#,4#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-10161iMZEA12..CVT¥90201806-202209

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iMZEA12..CVT¥90201806-202209

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-12470-C0iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#,3#,4#

64777JCUSHION, SPARE WHEEL

64779BSTOPPER, SPARE WHEEL COVER

main64779-26010iMZEA12..CVT¥220201806-202209

9011906A44

main90119-06A44¥60

14 parts on this diagram · 2 diagrams in section
