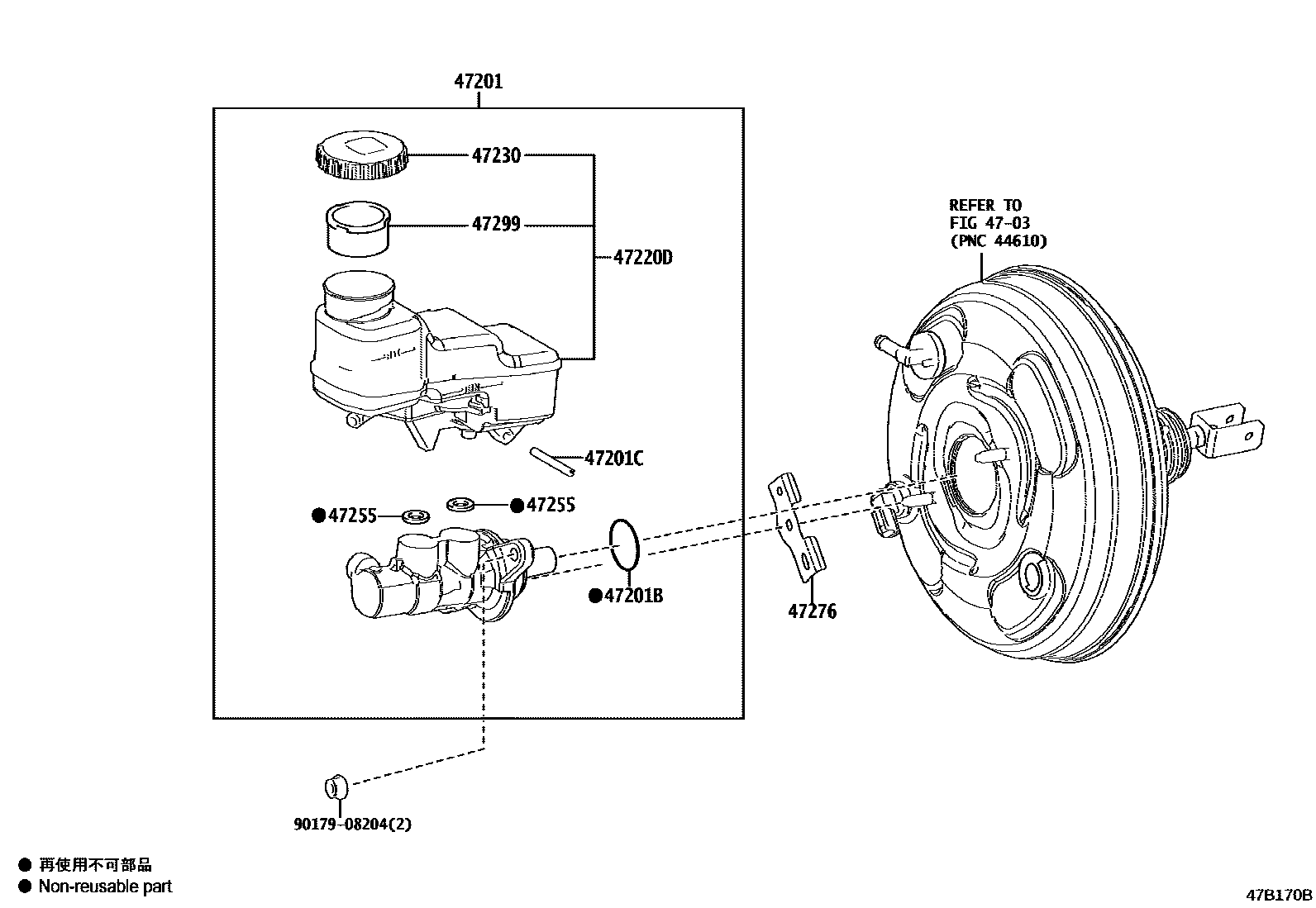

Toyota COROLLA HATCHBACK — BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12C30iMZEA12..CVT201806-202209

main47201-12C40iMZEA12..6F201806

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iMZEA12..CVT¥200201806-202209

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMZEA12..CVT¥130201806-202209

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-12320iMZEA12..CVT201806-202209

main47220-12330iMZEA12..6F201806

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMZEA12..CVT¥770201806-202209

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iMZEA12..CVT¥360201806-202209

sub90016-AT001¥360

47276BRACKET, BRAKE MASTER CYLINDER

main47276-12050iMZEA12..CVT201806-202209

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMZEA12..CVT¥140201806-202209

9017908204

main90179-08204¥140

10 parts on this diagram · 1 diagram in section
