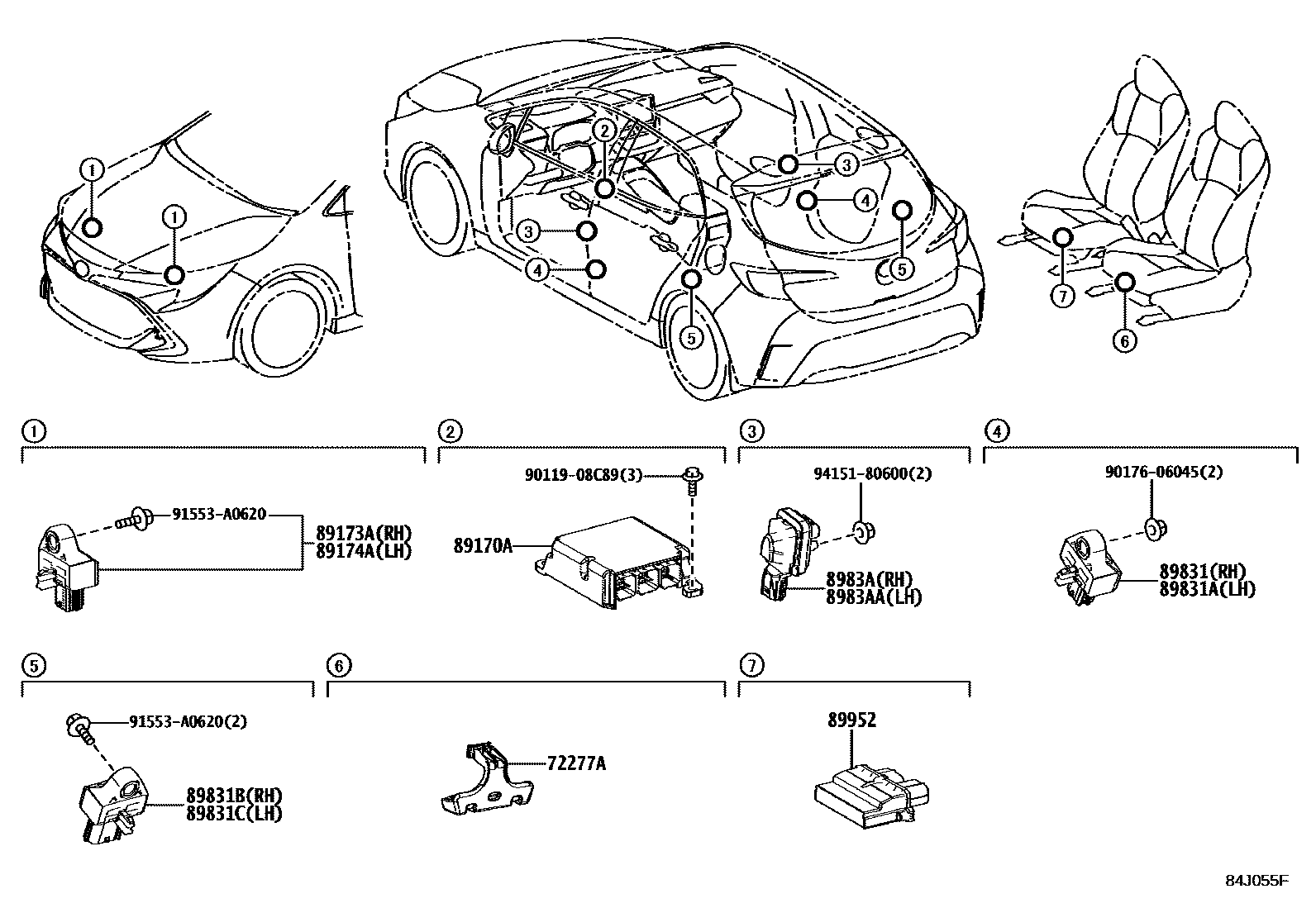

Toyota COROLLA HATCHBACK — AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89831SENSOR, SIDE AIRBAG, RH, NO.1
89831ASENSOR, SIDE AIRBAG, LH, NO.1
89831BSENSOR, SIDE AIRBAG, RH, NO.2
89831CSENSOR, SIDE AIRBAG, LH, NO.2
8983ASENSOR, SIDE AIRBAG PRESSURE, RH
8983AASENSOR, SIDE AIRBAG PRESSURE, LH
89952COMPUTER, OCCUPANT DETECTION
9011908C89
9017606045
91553A0620
9415180600
15 parts on this diagram · 1 diagram in section
