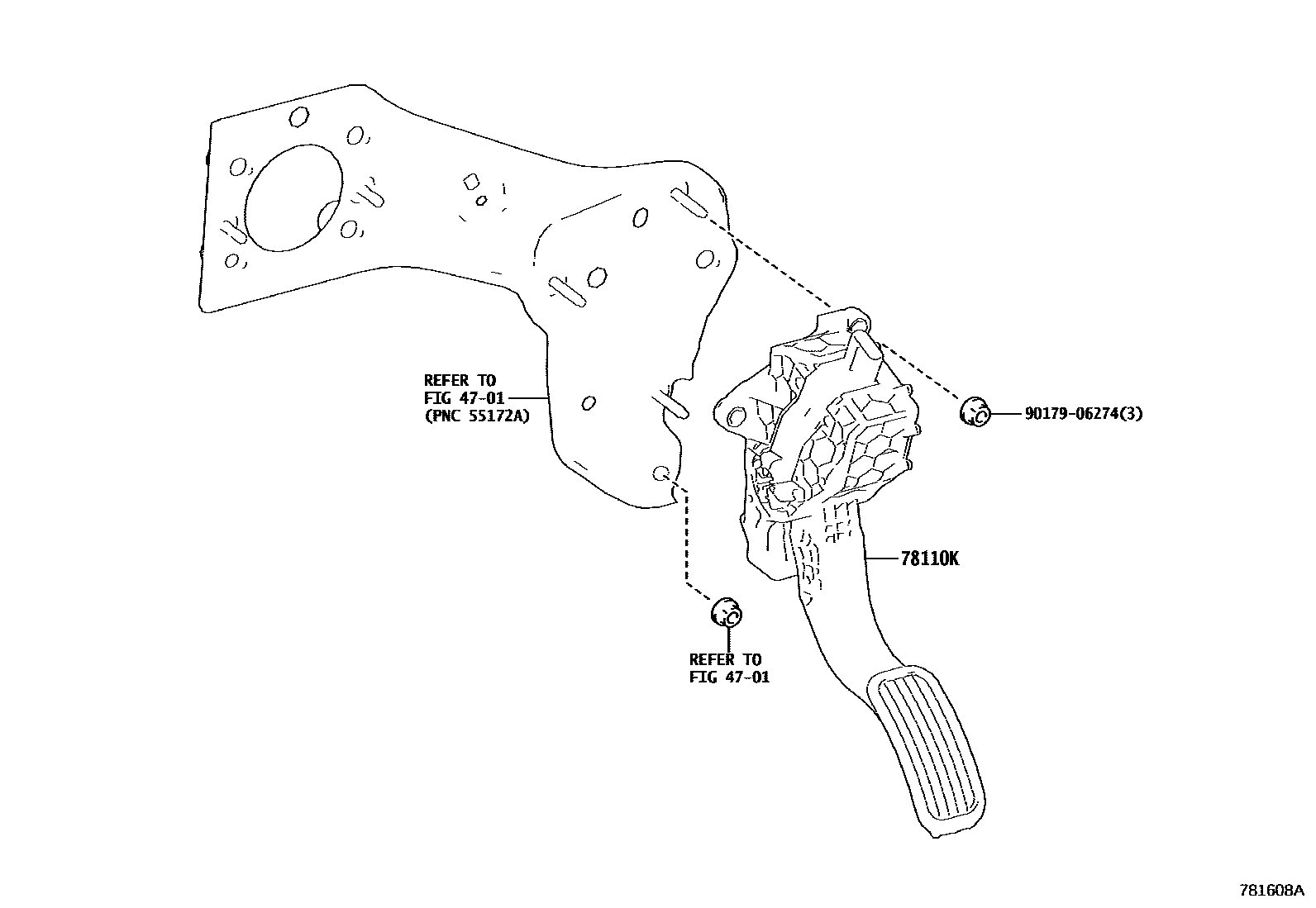

Toyota COROLLA HATCHBACK — ACCELERATOR LINK

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-12100iMZEA12¥10,100201806-202010

sub78110-12101

main78110-12101iMZEA12..CVT202011-202209

main78110-12101iMZEA12..6F202011

main78110-12101iMZEA12202209

9017906274

main90179-06274¥70

3 parts on this diagram · 1 diagram in section
