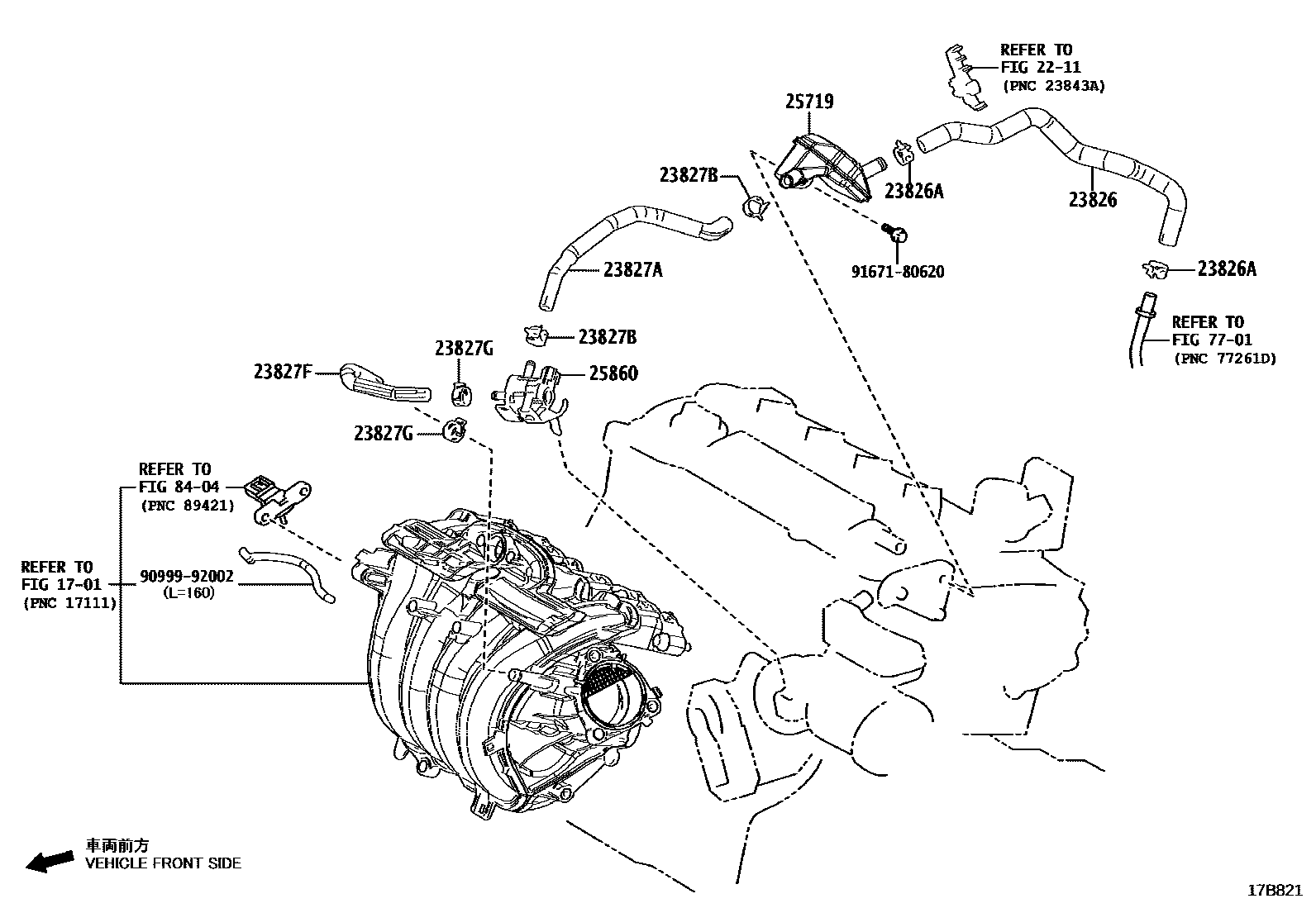

Toyota COROLLA CROSS — VACUUM PIPING

0001 1 0002 1MEXICO SPEC 0003 1

1701

2211

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-F2010iM20AFKS..MXGA1#202109-202412

main23826-F2300iM20AFXS..MXGH15202305-202412

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-A0032iM20AFXS..MXGH15202109-202412

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-F2030iM20AFKS..MXGA1#202109-202412

main23826-F2310iM20AFXS..MXGH15202305-202412

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-A0032iM20AFKS..MXGA1#202109-202412

23827FHOSE, FUEL VAPOR FEED, NO.3

main23826-F2040iM20AFKS..MXGA1#202109-202412

23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)

main90466-A0032iM20AFKS..MXGA1#202109-202412

25719TANK, VACUUM SURGE

main25719-24020iM20AFKS..MXGA1#¥1,030202109-202412

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-24040iM20AFKS..MXGA1#202109-202412

main25860-24090iM20AFXS..MXGH15¥3,480202305-202412

7701

8404

9099992002

main90999-92002¥460

9167180620

main91671-80620¥60

14 parts on this diagram · 3 diagrams in section
