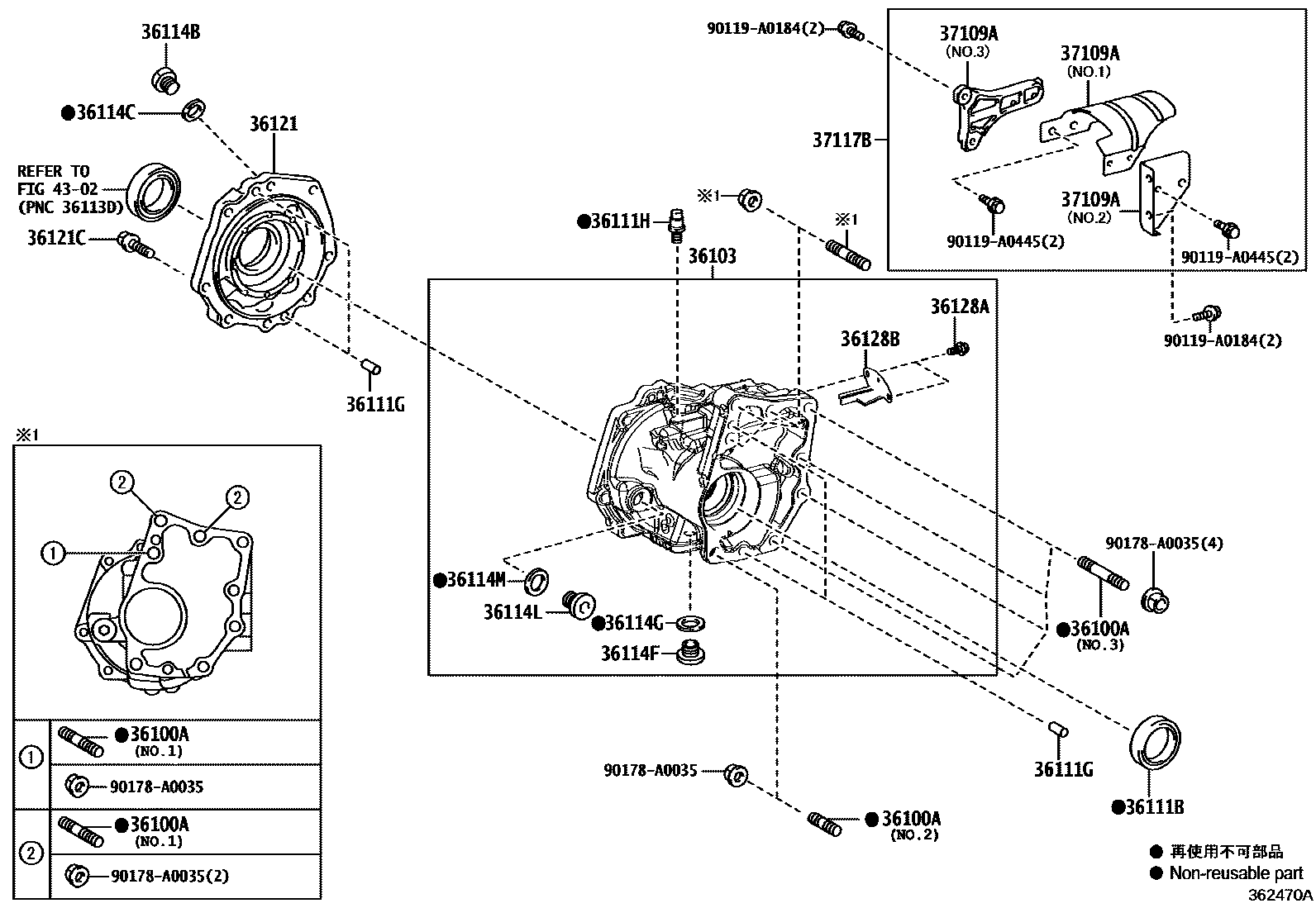

Toyota COROLLA CROSS — TRANSFER CASE & EXTENSION HOUSING
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=30 & 22,L=64,NO.3
S=22 & 22,L=73,NO.1
S=22 & 22,L=53,NO.2
36103CASE SUB-ASSY, TRANSFER
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114LPLUG, FILLER(FOR TRANSFER)
36114MGASKET (FOR TRANSFER FILLER PLUG)
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36128BDEFLECTOR, BREATHER OIL
37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR
NO.1
NO.2
NO.3
37117BINSULATOR, PROPELLER SHAFT HEAT
4302
90119A0184
main90119-A0184
90119A0445
main90119-A0445
90178A0035
main90178-A0035
21 parts on this diagram · 1 diagram in section
