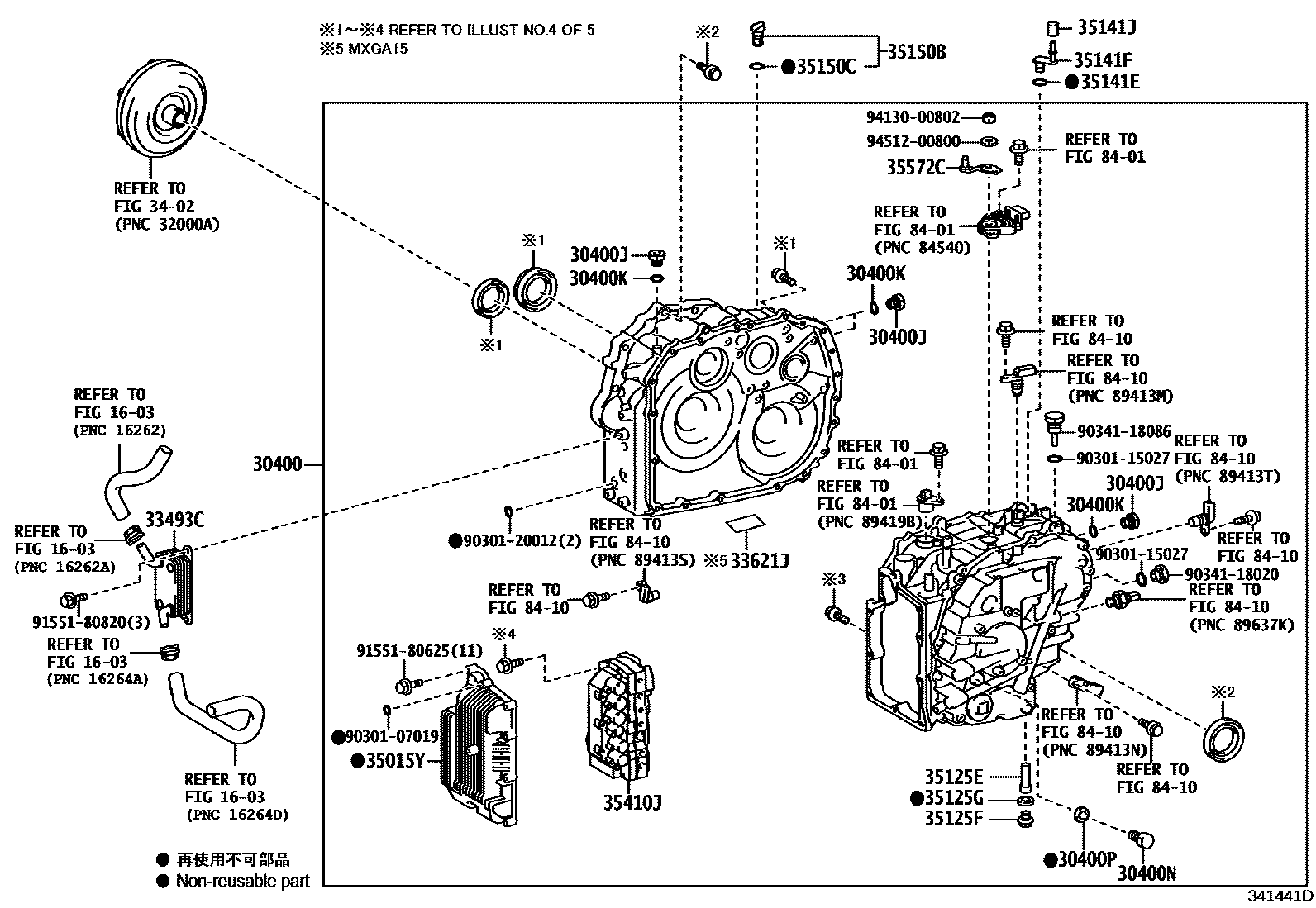

Toyota COROLLA CROSS — TRANSAXLE ASSY(CVT)

0001 1K120, K120F 0002 1K120, K120F 0003 1K120, K120F 0004 1K120, K120F 0005 1K120, K120F 0006 1K121, K121F 0007 1K121, K121F 0008 1K121, K121F 0009 1K121, K121F 0010 1K121, K121F

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-16020iMXGA10¥351,000202109-202311

K120

main30400-16030iMXGA15202109-202311

K120F

main30400-16040iMXGA15202311-202412

K121F

main30400-16060iMXGA10202311-202412

K121

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMXGA1#¥120202109-202412

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMXGA1#¥170202109-202412

30400NPLUG, REFILL(CVT)

main90341-18077iMXGA1#¥190202109-202412

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMXGA1#¥110202109-202412

33493CCOOLER, TRANSMISSION OIL

main33493-12090iMXGA1#¥11,900202109-202412

33621JLABEL, TRANSAXLE OIL INFORMATION

main33621-28021iMXGA15¥120202109-202412

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-12010iMXGA1#¥9,500202109-202205

main35015-42010iMXGA1#¥8,700202206-202311

main35015-42020iMXGA1#202311-202412

35125ETUBE, OVERFLOW(CVT)

main35125-12500iMXGA1#¥300202109-202412

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMXGA1#¥190202109-202412

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMXGA1#¥110202109-202412

35141ERING, O(FOR BREATHER PLUG)

main90301-09173iMXGA1#¥140202109-202412

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03240iMXGA1#¥660202109-202412

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03243iMXGA1#¥140202109-202412

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iMXGA1#¥280202109-202412

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMXGA1#¥140202109-202211

main90301-11008iMXGA1#¥160202311-202412

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12881iMXGA1#¥53,700202109-202311

main35410-42080iMXGA1#202311-202412

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMXGA1#¥590202109-202412

8401

8410

9030107019

main90301-07019¥170

9030115027

main90301-15027¥130

9030120012

main90301-20012¥170

9034118020

main90341-18020¥310

9034118086

main90341-18086¥310

9155180625

main91551-80625¥60

9155180820

main91551-80820¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

31 parts on this diagram · 10 diagrams in section
