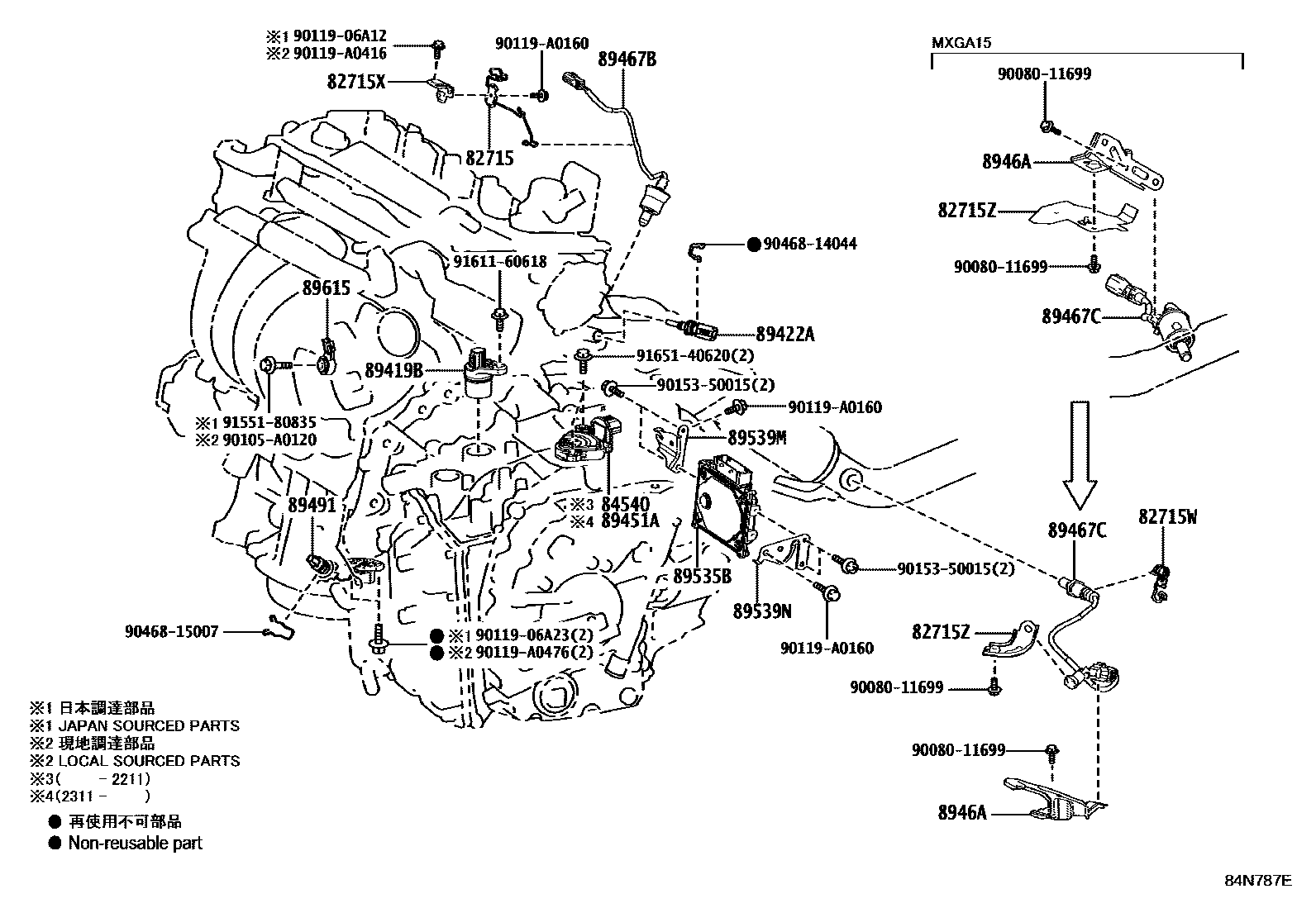

Toyota COROLLA CROSS — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1STEERING 0011 1SEAT 0012 1DOOR & ROOF 0013 1FLOOR & BACK DOOR 0014 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-12V90iMXGA1#,MXGH15¥300202412

main82715-12V90iMXGA1#¥300202109-202211

main82715-12V90iMXGA1#,MXGH15¥300202211-202412

82715WBRACKET, WIRING HARNESS CLAMP

main82729-20040iMXGA10¥220202109-202211

main82729-20040iMXGA10,MXGH15¥220202412

main82729-20040iMXGA10,MXGH15¥220202211-202412

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-0Z390iMXGA1#,MXGH15202412

main82715-0Z390iMXGA1#202109-202211

main82715-0Z390iMXGA1#,MXGH15202211-202412

main82715-0Z430iMXGA1#202412

*502

main82715-0Z430iMXGA1#202211-202412

*502

82715ZBRACKET, WIRING HARNESS CLAMP

main8946A-0A020iMXGA10202109-202211

main8946A-0A020iMXGA10,MXGH15202412

main8946A-0A020iMXGA10,MXGH15202211-202412

main8946A-0A070iMXGA15202109-202211

main8946A-0A070iMXGA15202211-202412

main8946A-0A070iMXGA15202412

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMXGA1#¥7,600202109-202211

89419BSENSOR, SHIFT STROKE

main89419-12011iMXGA10¥4,100202109-202203

MARK=CS1

main89419-K2010iMXGA1#¥4,100202412

MARK=HK-82

main89419-K2010iMXGA1#¥4,100202109-202211

MARK=HK-82

main89419-K2010iMXGA1#¥4,100202211-202412

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMXGA1#,MXGH15¥2,410202412

main89422-33040iMXGA1#¥2,410202109-202211

main89422-33040iMXGA1#,MXGH15¥2,410202211-202412

89451ASENSOR, SHIFT LEVER POSITION

main89451-28020iMXGH15¥5,900202412

main89451-28020iMXGH15¥5,900202305-202412

main89451-42010iMXGA1#¥5,900202412

main89451-42010iMXGA1#¥5,900202311-202412

89467BSENSOR, AIR FUEL RATIO

main89467-0A010iMXGA1#202109-202211

main89467-0A010iMXGA1#,MXGH15202412

main89467-0A010iMXGA1#,MXGH15202211-202412

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0A020iMXGA10202211-202311

main89467-0A020iMXGH15202412

main89467-0A020iMXGA10202109-202211

main89467-0A020iMXGH15202211-202412

main89467-0A030iMXGA15202211-202311

main89467-0A030iMXGA15202109-202211

main89467-0A040iMXGA10202311-202412

main89467-0A040iMXGA10202412

main89467-0A080iMXGA15202311-202412

main89467-0A080iMXGA15202412

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-0A010iMXGA10202109-202211

main8946A-0A010iMXGA10202412

main8946A-0A010iMXGA10202211-202412

main8946A-0A040iMXGA15202109-202211

main8946A-0A040iMXGA15202412

main8946A-0A040iMXGA15202211-202412

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iMXGA1#¥3,670202109-202204

sub89491-33052¥3,330

main89491-33052iMXGH15¥3,330202412

main89491-33052iMXGA1#¥3,330202205-202211

main89491-33052iMXGA1#¥3,330202211-202311

main89491-33052iMXGH15¥3,330202211-202412

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-16050iMXGA10202109-202211

*614

main89535-16060iMXGA15202109-202211

*614

main89535-16100iMXGA10202211-202311

main89535-16110iMXGA15202211-202311

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMXGA1#¥230202109-202211

main89539-12070iMXGA1#¥230202211-202311

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMXGA1#¥230202109-202211

main89539-12080iMXGA1#¥230202211-202311

89615SENSOR, KNOCK CONTROL

main89615-06010iMXGA1#202109-202211

main89615-06010iMXGA1#,MXGH15202211-202412

(L)

main89615-06010iMXGA1#,MXGH15202412

(L)

main89615-20090iMXGA1#,MXGH15¥2,370202412

(J)

main89615-20090iMXGA1#,MXGH15¥2,370202211-202412

(J)

9008011699

main90080-11699¥110

90105A0120

main90105-A0120

9011906A12

main90119-06A12¥60

9011906A23

main90119-06A23¥60

90119A0160

main90119-A0160

90119A0416

main90119-A0416

90119A0476

main90119-A0476

9015350015

main90153-50015¥60

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180835

main91551-80835¥80

9161160618

main91611-60618¥120

9165140620

main91651-40620¥70

29 parts on this diagram · 14 diagrams in section
