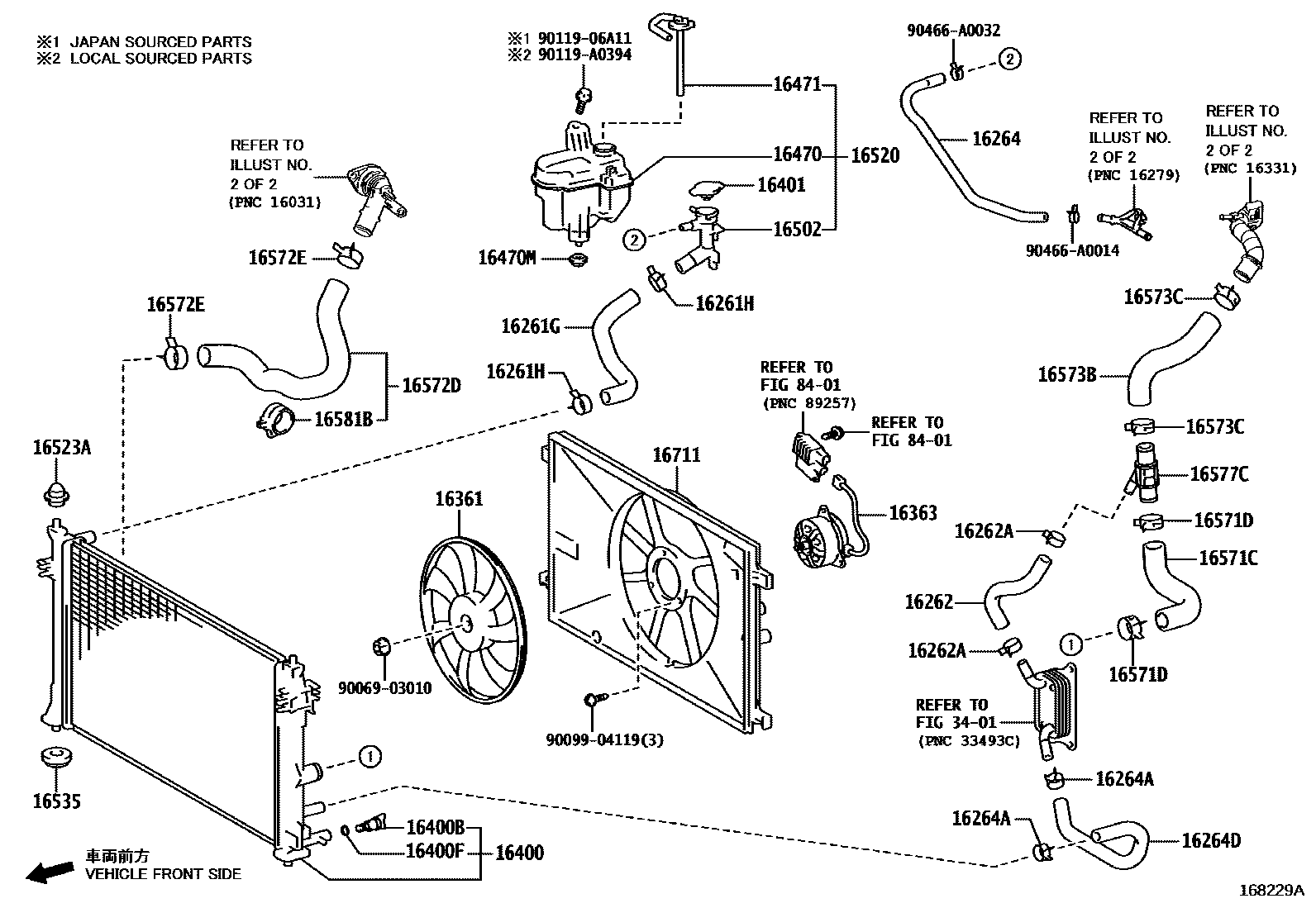

Toyota COROLLA CROSS — RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264DHOSE, WATER BY-PASS, NO.2
16361FAN
16363MOTOR, COOLING FAN
16400BPLUG, RADIATOR DRAIN COCK
PNC16400=MARK 0T60,1
PNC16400=MARK 0T60,1
PNC 16400=MARK 2439
PNC 16400=MARK 2439
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16471CAP SUB-ASSY, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16520FILLER ASSY, WATER
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577CPIPE, RADIATOR
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16711SHROUD, FAN
3401
8401
9006903010
9009904119
main90099-04119
9011906A11
90119A0394
main90119-A0394
90466A0014
main90466-A0014
90466A0032
main90466-A0032
37 parts on this diagram · 4 diagrams in section
