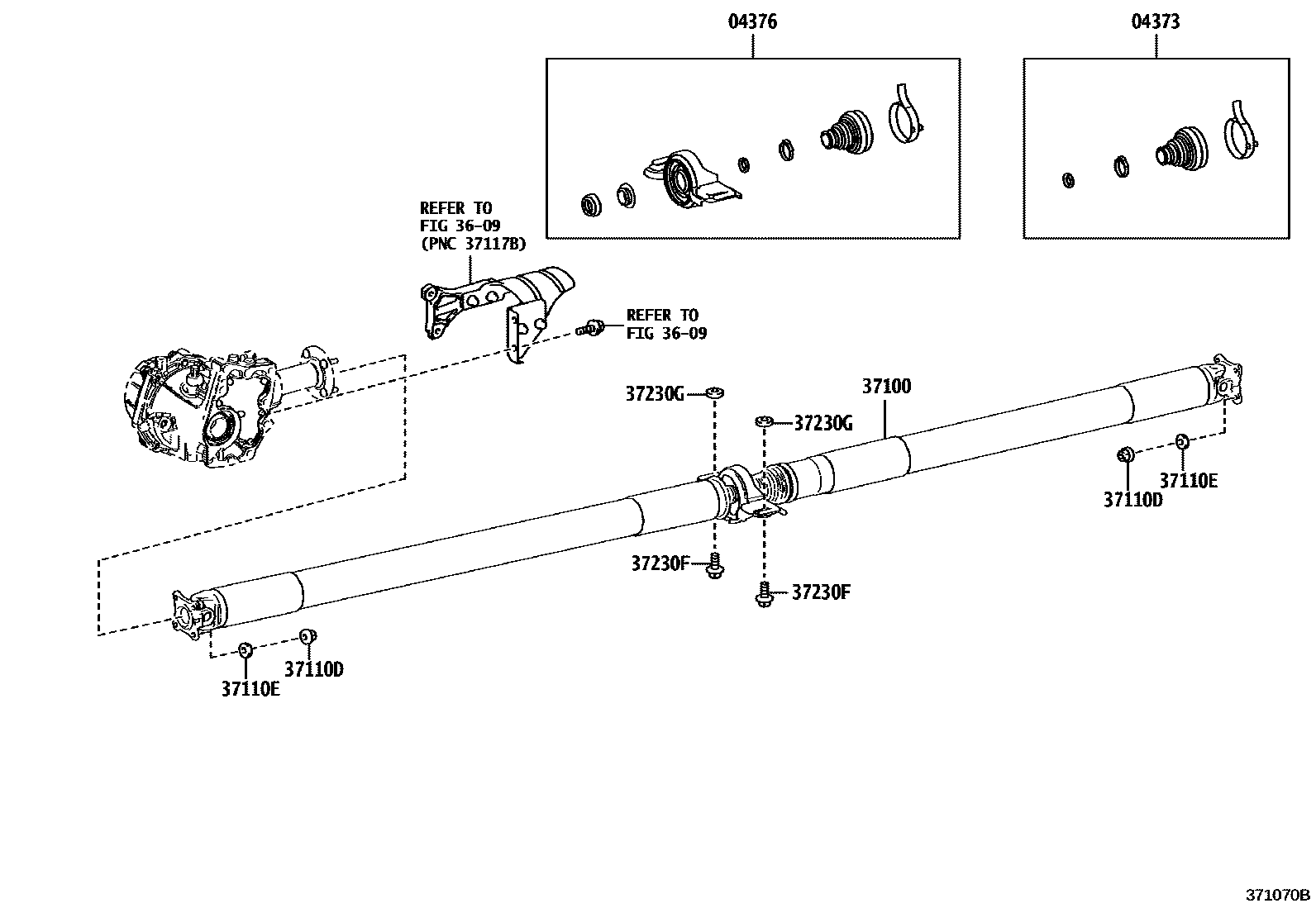

Toyota COROLLA CROSS — PROPELLER SHAFT & UNIVERSAL JOINT
04373BOOT KIT, UNIVERSAL
04376BEARING KIT, CENTER SUPPORT
3609
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
*10-1.25PX35-35
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5
T=6.5
T=9.0
T=11.0
T=2.0
8 parts on this diagram · 2 diagrams in section
