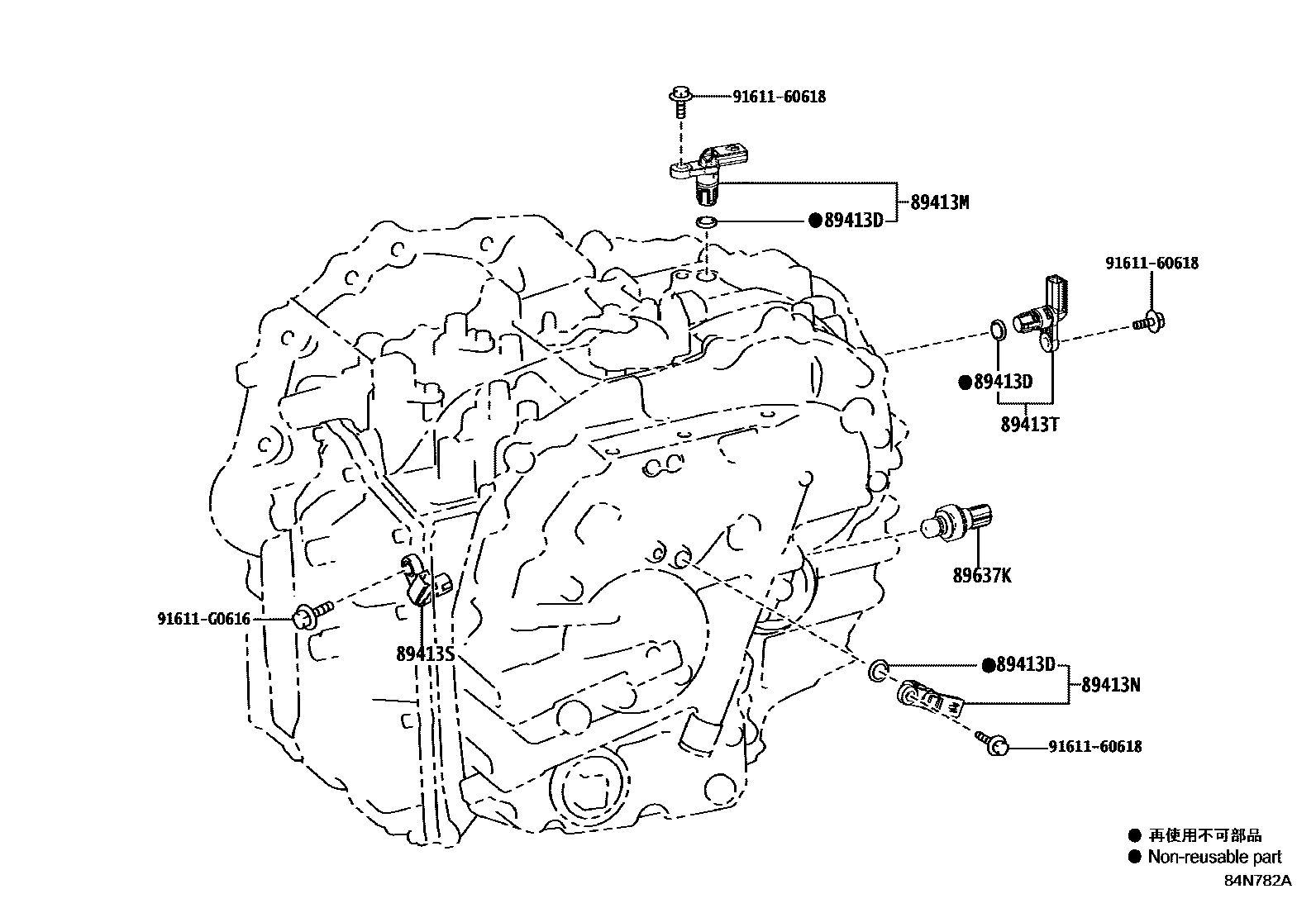

Toyota COROLLA CROSS — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iMXGA1#¥160202109-202412

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-12010iMXGA1#¥4,210202109-202311

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-12010iMXGA1#¥4,210202109-202412

89413SSENSOR, TRANSMISSION REVOLUTION (NC)

main89413-11021iMXGA1#¥4,010202109-202412

89413TSENSOR, TRANSMISSION REVOLUTION (NSS)

main89413-12010iMXGA1#¥4,210202109-202412

89637KSENSOR, OIL PRESSURE

main89637-12040iMXGA1#¥5,700202109-202412

9161160618

main91611-60618¥120

91611G0616

main91611-G0616¥70

8 parts on this diagram · 1 diagram in section
