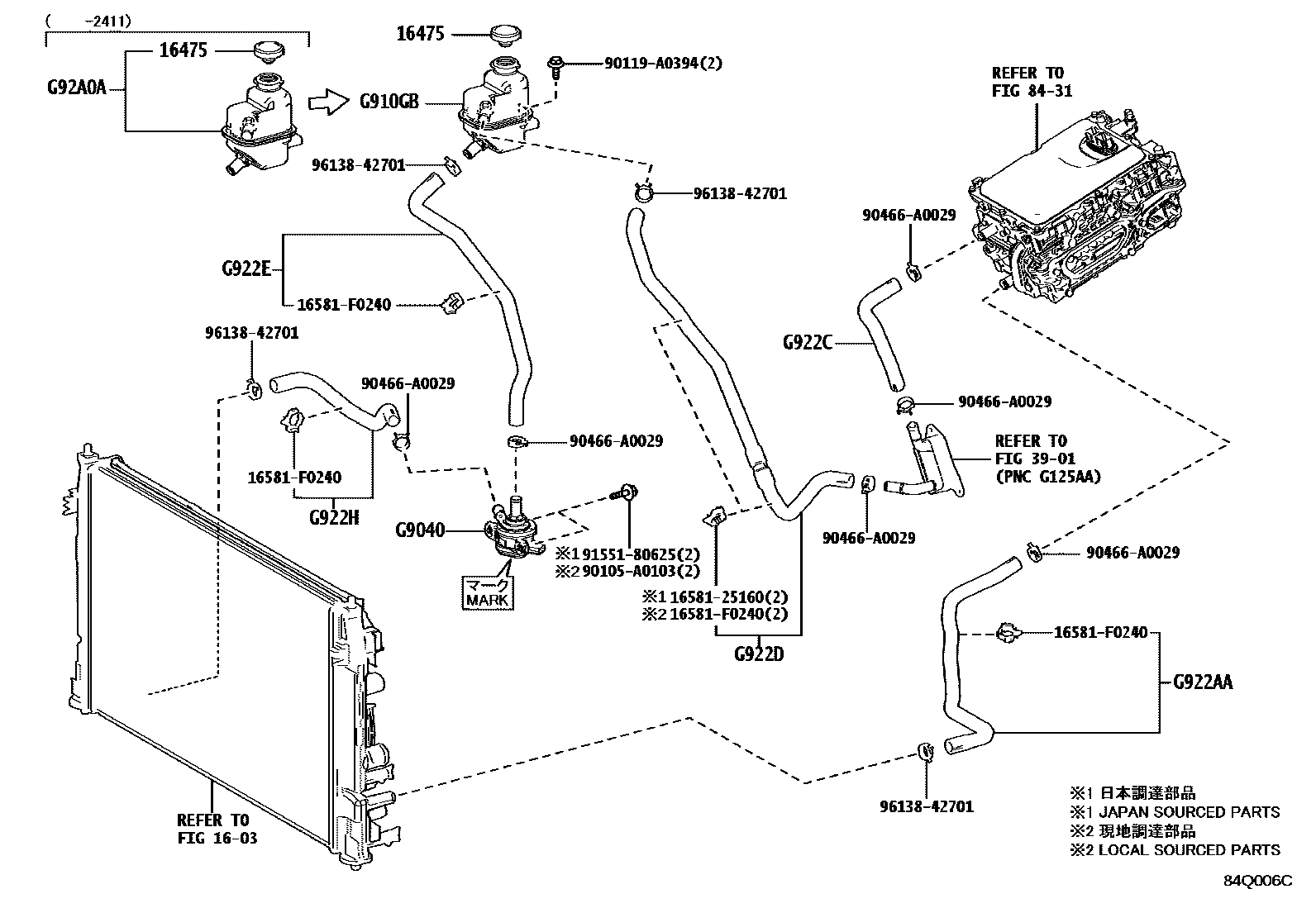

Toyota COROLLA CROSS — INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iM20AFXS..MXGH15¥1,200202305-202412

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG90400A040iMXGH15202311-202404

(L),MARK G9040-0A040

subG9040-0A050

mainG90400A050iMXGH15202404-202412

(L),MARK G9040-0A050,(L),MARK G9040-0A040

mainG904047020iMXGH15202311-202412

(J)

mainG904047020iMXGH15202305-202311

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0A010iMXGH15202411-202412

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A0A010iMXGH15202305-202412

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C0A010iMXGH15202305-202412

G922DHOSE, INVERTER COOLING OUTLET, NO.2

mainG922D0A010iMXGH15202305-202412

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E0A010iMXGH15202305-202412

G922HHOSE, HYBRID RADIATOR INLET

mainG922H0A010iMXGH15202305-202412

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H00A010iMXGH15202305-202411

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

16581F0240CLAMP, HOSE(FOR WATER HOSE)

main16581-F0240

90105A0103

main90105-A0103

90119A0394

main90119-A0394

90466A0029

main90466-A0029

9155180625

main91551-80625¥60

9613842701

main96138-42701¥200

17 parts on this diagram · 1 diagram in section
