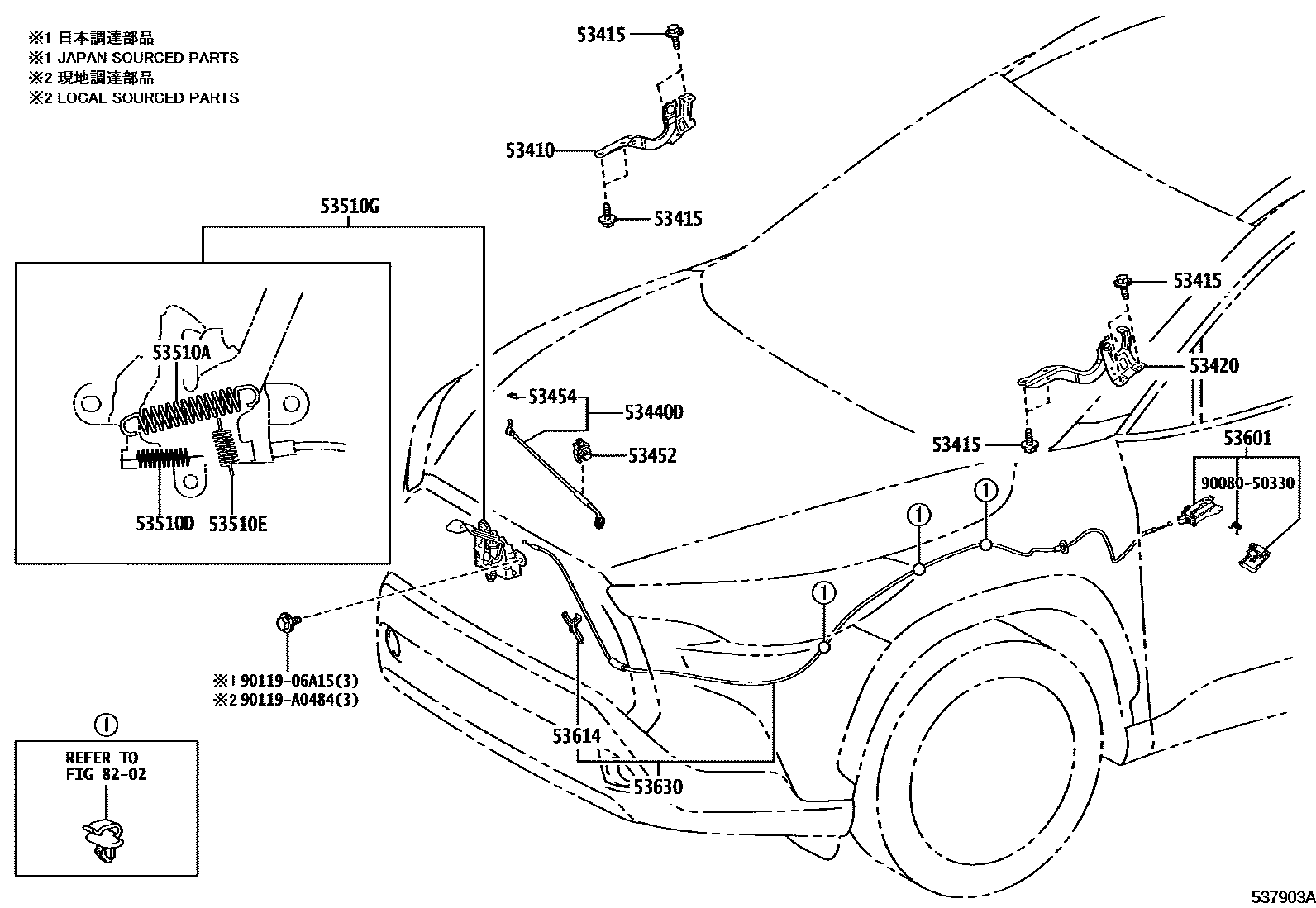

Toyota COROLLA CROSS — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0A120iMXGA1#,MXGH15202109-202412

53415BOLT, HOOD HINGE

main90105-A0068iMXGA1#,MXGH15202109-202412

(L)

main91551-80820iMXGA1#,MXGH15¥80202109-202412

(J)

53420HINGE ASSY, HOOD, LH

main53420-0A120iMXGA1#,MXGH15202109-202412

53440DSUPPORT ASSY, HOOD

main53440-0A040iMXGA1#,MXGH15202109-202412

53452HOLDER, HOOD STAY

main53452-15020iMXGA1#,MXGH15¥340202109-202412

53454CLIP, HOOD SUPPORT ROD

main90480-15025iMXGA1#,MXGH15¥220202109-202412

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iMXGA1#,MXGH15¥90202109-202412

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iMXGA1#,MXGH15¥90202109-202412

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iMXGA1#,MXGH15¥90202109-202412

WD=1.8,CW=13

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

main53510-0A070iMXGA1#,MXGH15202109-202412

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02040-C0iMXGA1#..L,LE202109-202412

BLACK,TRIM0#,2#

main53601-02040-C0iMXGA1#..L,LE202109-202412

BLACK,TRIM1#,2#

main53601-02040-C0iMXGH15..XSE202305-202412

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-16020iMXGA1#,MXGH15¥290202109-202412

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0A070iMXGA1#,MXGH15202109-202501

8202

9008050330

main90080-50330¥50

9011906A15

main90119-06A15¥60

90119A0484

main90119-A0484

17 parts on this diagram · 1 diagram in section
