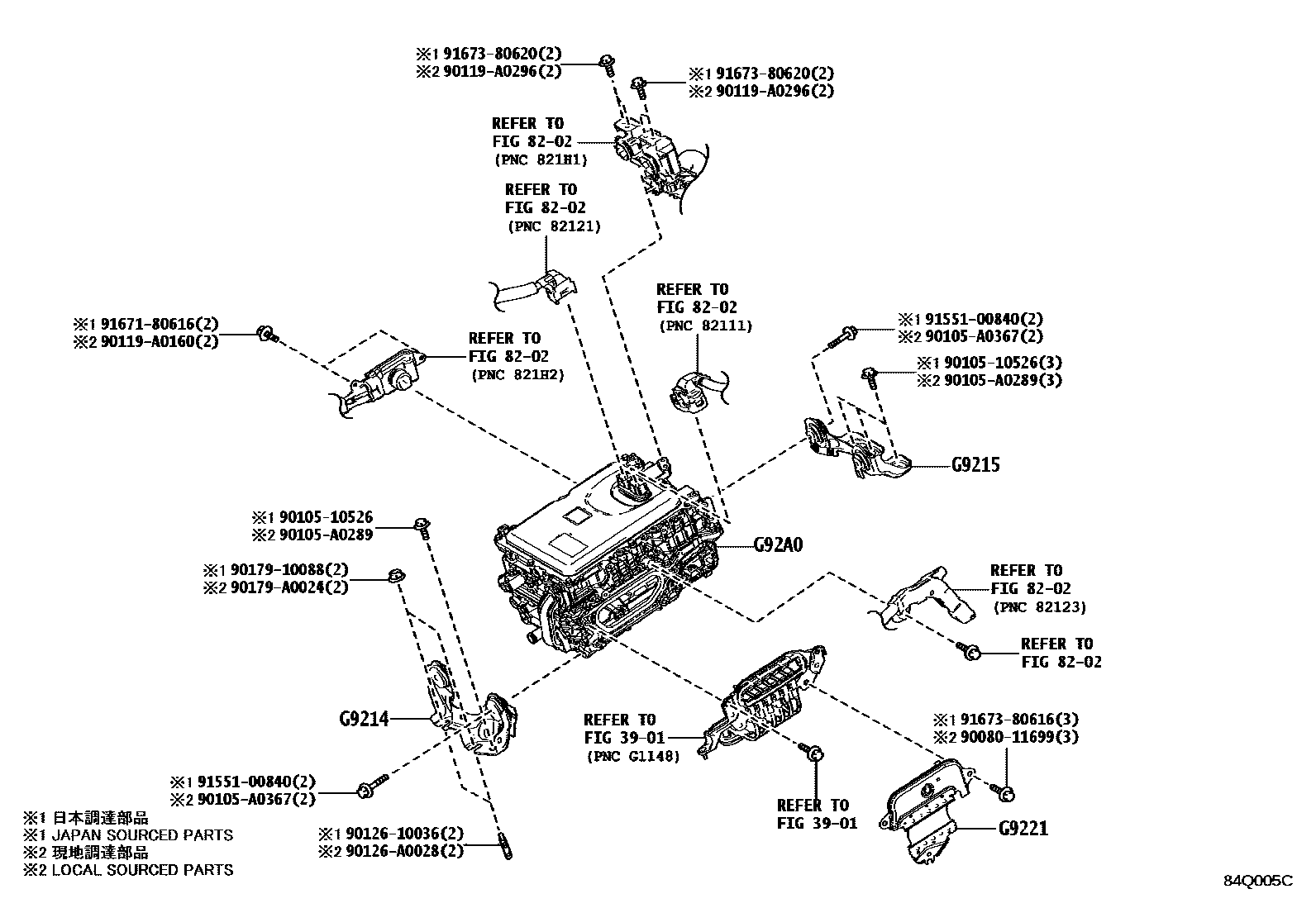

Toyota COROLLA CROSS — HEV INVERTER

3901

8202

G9214BRACKET, INVERTER, NO.1

mainG921463010iMXGH15202305-202412

G9215BRACKET, INVERTER, NO.2

mainG921547060iMXGH15202305-202412

G9221COVER, INVERTER

mainG902228030iMXGH15202305-202412

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A00A020iMXGH15202412

mainG92A016021iMXGH15202305-202307

subG92A0-16022

mainG92A016022iMXGH15202308-202412

9008011699

main90080-11699¥110

9010510526

main90105-10526¥100

90105A0289

main90105-A0289

90105A0367

main90105-A0367

90119A0160

main90119-A0160

90119A0296

main90119-A0296

9012610036

main90126-10036¥100

90126A0028

main90126-A0028

9017910088

main90179-10088¥100

90179A0024

main90179-A0024

9155100840

main91551-00840¥80

9167180616

main91671-80616¥60

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

20 parts on this diagram · 1 diagram in section
