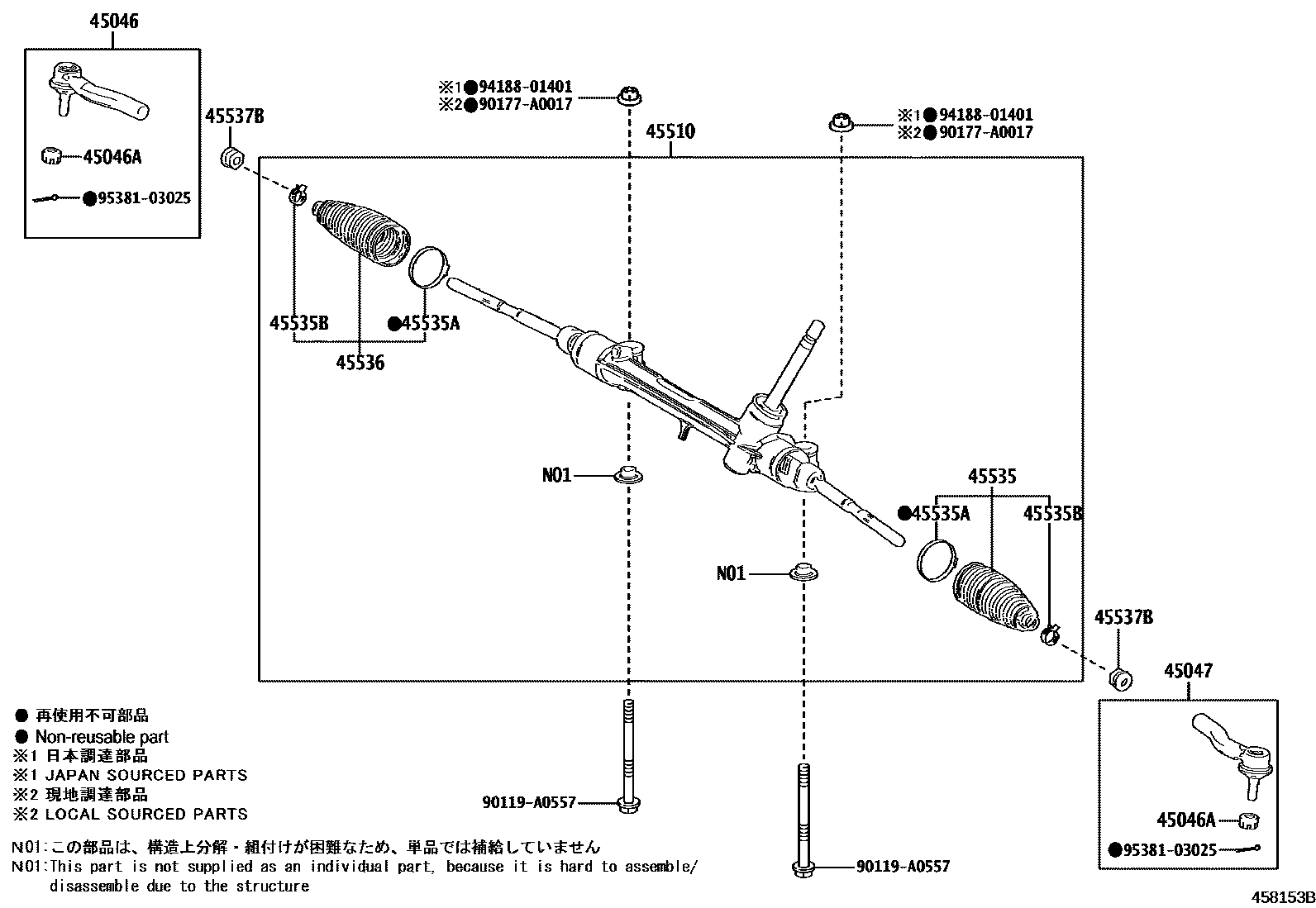

Toyota COROLLA CROSS — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09A00iMXGA1#,MXGH15202109-202412

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220iMXGA1#,MXGH15202109-202412

45047END SUB-ASSY, TIE ROD, LH

main45047-09430iMXGA1#,MXGH15202109-202412

45510GEAR ASSY, STEERING

main45510-0A060iMXGA1#,MXGH15202109-202412

45535BOOT, STEERING RACK, NO.1

main45535-09660iMXGA1#,MXGH15202109-202412

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-0T010iMXGA1#,MXGH15¥290202109-202412

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02020iMXGA1#,MXGH15202109-202412

45536BOOT, STEERING RACK, NO.2

main45535-09660iMXGA1#,MXGH15202109-202412

45537BNUT, RACK END LOCK

main90178-A0013iMXGA1#,MXGH15202109-202412

90119A0557

main90119-A0557

90177A0017

main90177-A0017

9418801401

main94188-01401¥190

9538103025

main95381-03025¥130

13 parts on this diagram · 1 diagram in section
