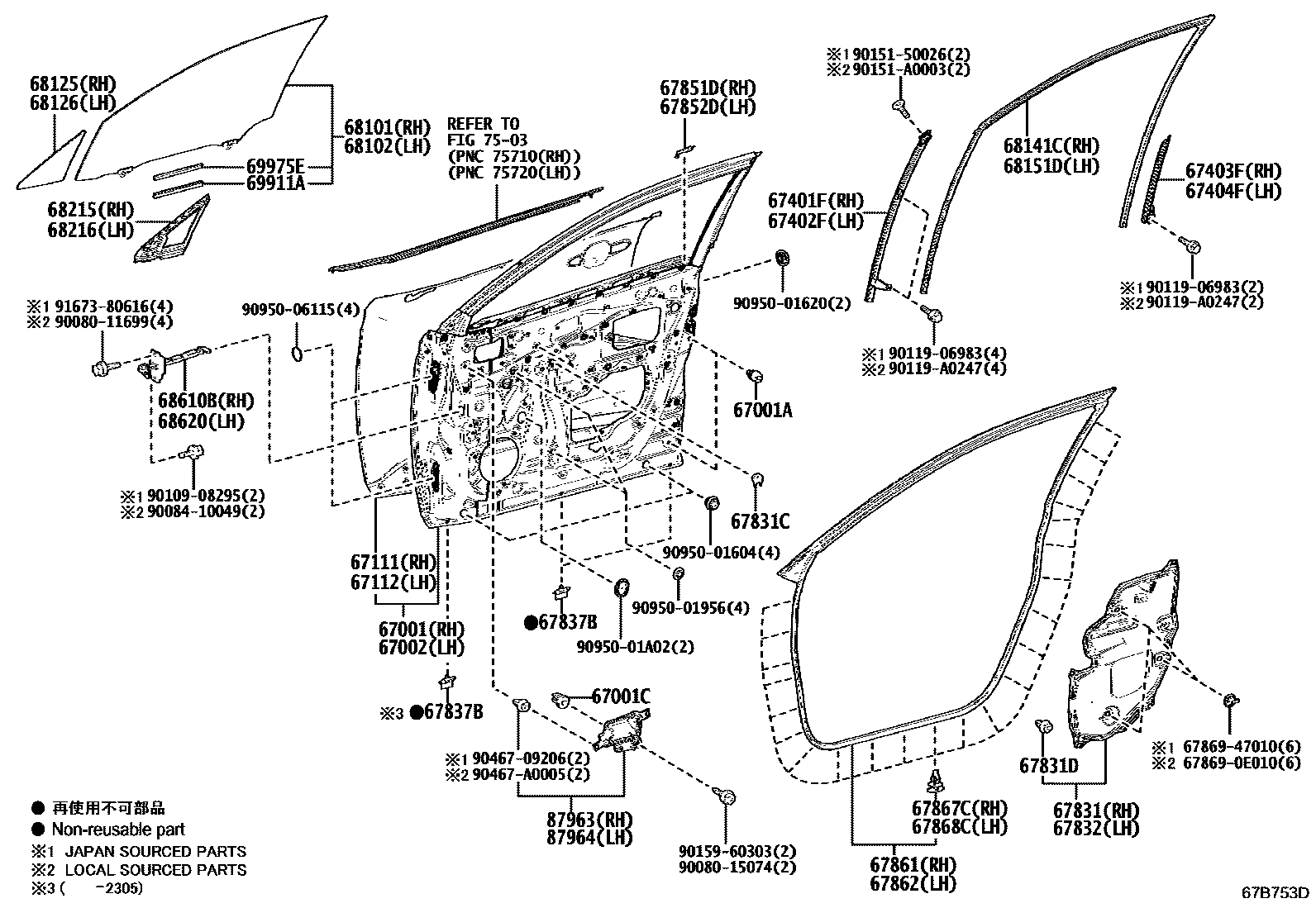

Toyota COROLLA CROSS — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0A040iMXGA1#202109-202412

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iMXGA1#,MXGH15¥100202109-202412

67001CGROMMET(FOR FRONT DOOR PANEL)

main90189-06227iMXGA1#,MXGH15¥70202109-202412

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0A040iMXGA1#,MXGH15202109-202412

67111PANEL, FRONT DOOR, OUTER RH

main67111-0A040iMXGA1#,MXGH15202109-202412

67112PANEL, FRONT DOOR, OUTER LH

main67112-0A040iMXGA1#,MXGH15202109-202412

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0A050iMXGA1#,MXGH15202109-202412

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0A050iMXGA1#,MXGH15202109-202412

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0A040iMXGA1#,MXGH15202109-202412

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0A040iMXGA1#,MXGH15202109-202412

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0A060iMXGA1#,MXGH15202109-202412

67831CCOVER, FRONT DOOR SERVICE HOLE

main67833-47010iMXGA1#,MXGH15¥200202109-202412

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iMXGA1#,MXGH15¥80202109-202412

(J)

main90467-A0005iMXGA1#,MXGH15202109-202412

(L)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0A060iMXGA1#,MXGH15202109-202412

67837BSEAL, FRONT DOOR DUST PROOF

main67837-47060iMXGA1#,MXGH15¥80202109-202412

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-0A040iMXGA1#,MXGH15202109-202412

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-0A040iMXGA1#,MXGH15202109-202412

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0A050iMXGA1#,MXGH15202109-202412

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0A050iMXGA1#,MXGH15202109-202412

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iMXGA1#,MXGH15¥100202109-202412

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iMXGA1#¥100202109-202412

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0A040iMXGA1#,MXGH15202109-202412

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0A040iMXGA1#,MXGH15202109-202412

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0A040iMXGA1#,MXGH15202109-202412

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0A040iMXGA1#,MXGH15202109-202412

68141CRUN, FRONT DOOR GLASS, RH

main68141-0A060iMXGA1#,MXGH15202109-202412

68151DRUN, FRONT DOOR GLASS, LH

main68151-0A060iMXGA1#,MXGH15202109-202412

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-0A040iMXGA1#,MXGH15202109-202412

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-0A040iMXGA1#202109-202412

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0A050iMXGA1#202109-202412

68620CHECK ASSY, FRONT DOOR, LH

main68610-0A050iMXGA1#,MXGH15202109-202412

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69955-0E060iMXGA1#,MXGH15202109-202412

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-0E030iMXGA1#,MXGH15202109-202412

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0A040iMXGA1#,MXGH15202109-202412

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0A040iMXGA1#,MXGH15202109-202412

678690E010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-0E010

6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-47010¥140

9008011699

main90080-11699¥110

9008015074

main90080-15074¥60

9008410049

main90084-10049

9010908295

main90109-08295¥80

9011906983

main90119-06983¥60

90119A0247

main90119-A0247

9015150026

main90151-50026¥60

90151A0003

main90151-A0003¥60

9015960303

main90159-60303¥70

9046709206

main90467-09206¥80

90467A0005

main90467-A0005

9095001604

main90950-01604¥110

9095001620

main90950-01620¥110

9095001956

main90950-01956¥100

9095001A02

main90950-01A02¥100

9095006115

main90950-06115¥110

9167380616

main91673-80616¥60

55 parts on this diagram · 2 diagrams in section
