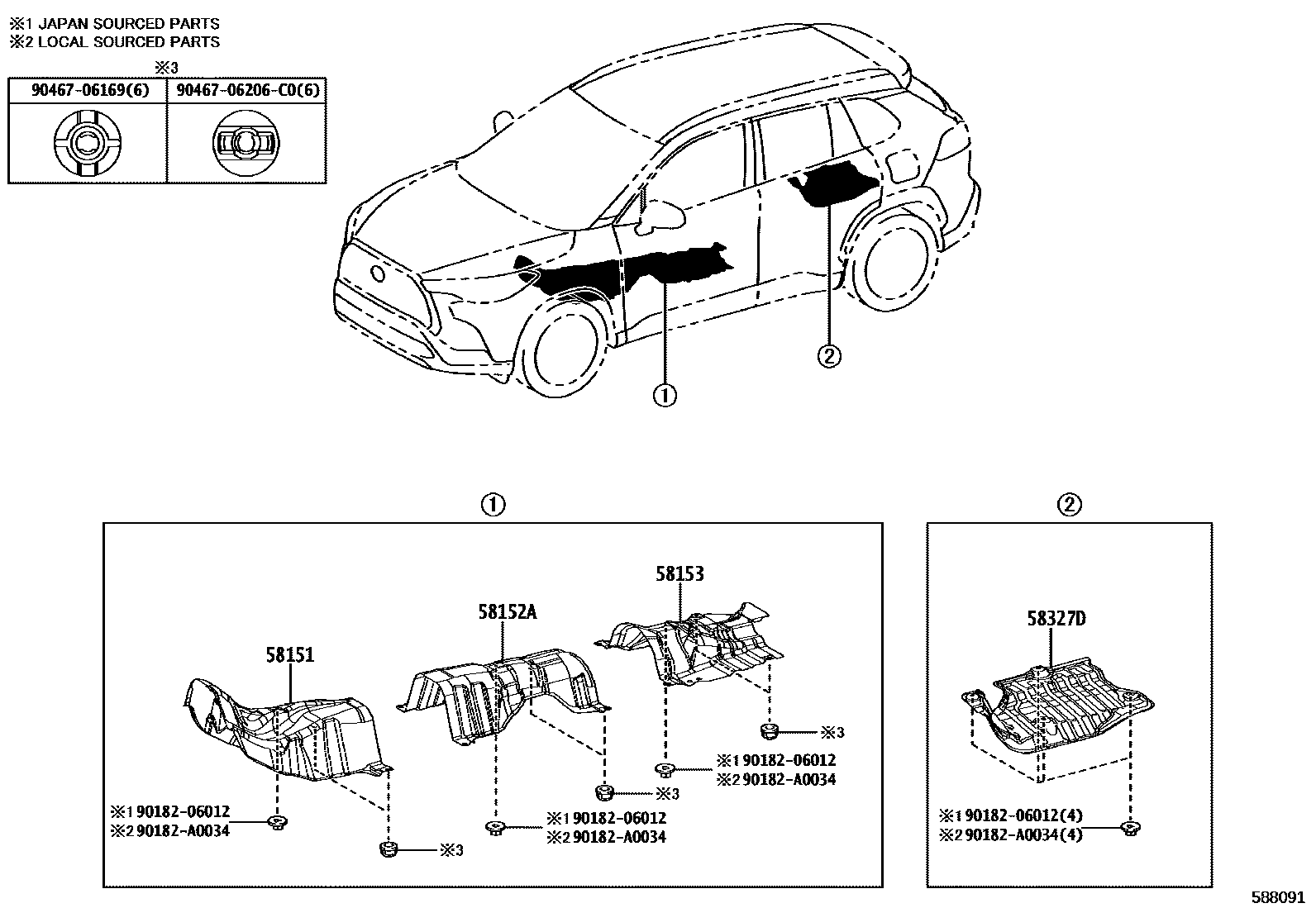

Toyota COROLLA CROSS — FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0A030iMXGA15202412

main58151-0A030iMXGA15202109-202211

main58151-0A030iMXGA15202211-202412

main58151-0A040iMXGA10202211-202412

main58151-0A040iMXGA10202412

main58151-0A040iMXGA10202109-202211

main58151-0A100iMXGH15202412

main58151-0A100iMXGH15202305-202412

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-0A010iMXGA15202412

main58152-0A010iMXGA15202211-202412

main58152-0A010iMXGA15202109-202211

main58152-0A020iMXGA10,MXGH15202211-202412

main58152-0A020iMXGA10,MXGH15202412

main58152-0A020iMXGA10202109-202211

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0A030iMXGA10,MXGH15202412

main58153-0A030iMXGA10202109-202211

main58153-0A030iMXGA10,MXGH15202211-202412

main58153-0A040iMXGA15202412

main58153-0A040iMXGA15202109-202211

main58153-0A040iMXGA15202211-202412

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-0A010iMXGA10¥2,830202412

main58327-0A010iMXGA10¥2,830202109-202211

main58327-0A010iMXGA10¥2,830202211-202412

main58327-0A020iMXGA15202109-202211

main58327-0A020iMXGA15,MXGH15202412

main58327-0A020iMXGA15,MXGH15202211-202412

9018206012

main90182-06012¥60

90182A0034

main90182-A0034

9046706169

main90467-06169¥80

9046706206C0

main90467-06206C0

8 parts on this diagram · 3 diagrams in section
