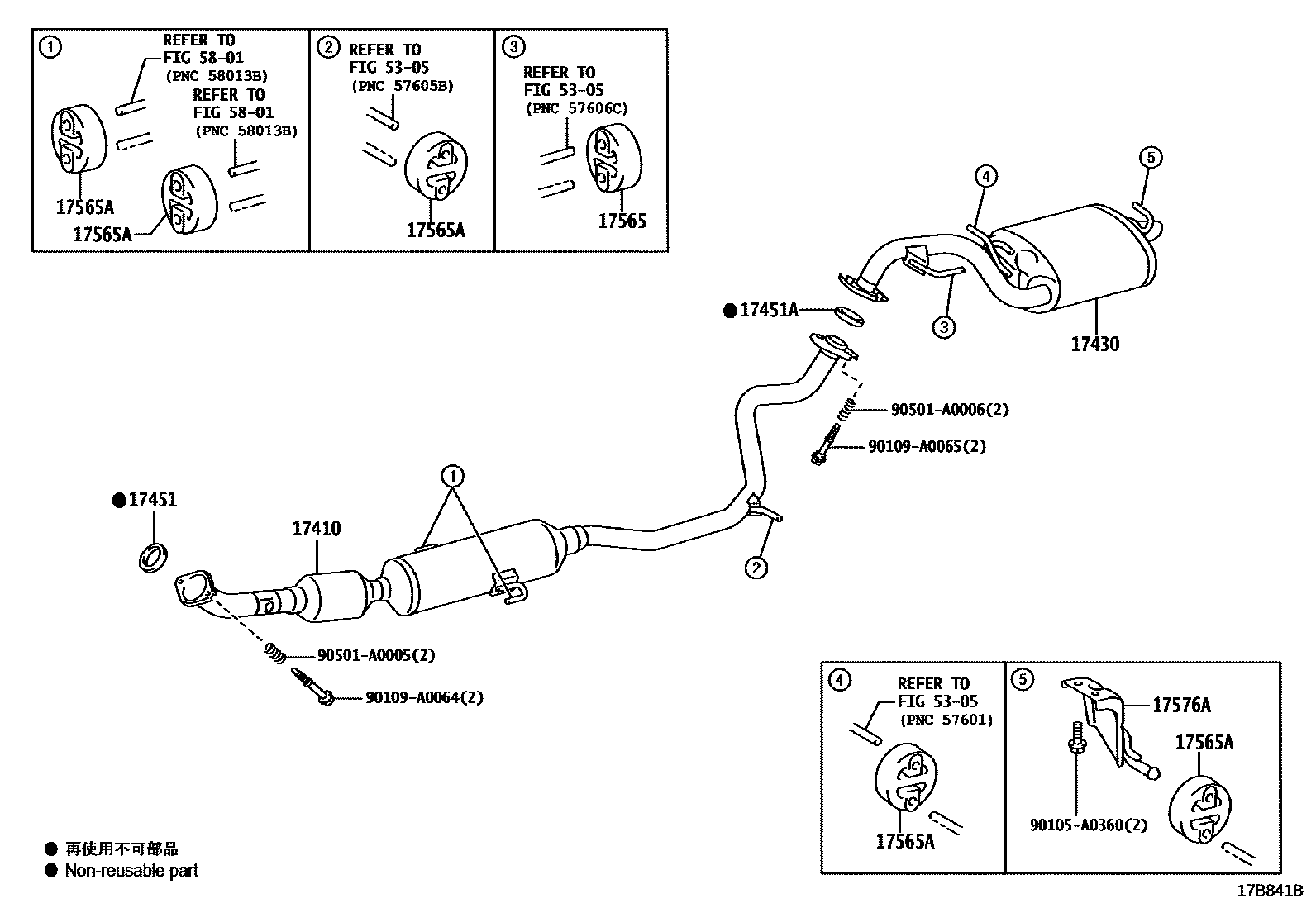

Toyota COROLLA CROSS — EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-F2260iM20AFKS..MXGA10202311-202412

main17410-F2270iM20AFKS..MXGA15202311-202412

main17410-F2290iM20AFKS..MXGA10202109-202206

main17410-F2291iM20AFKS..MXGA10202206-202311

main17410-F2310iM20AFKS..MXGA15202109-202311

main17410-F2470iM20AFXS..MXGH15202305-202412

17430PIPE ASSY, EXHAUST, TAIL

main17430-F2180iM20AFKS..MXGA10202109-202412

main17430-F2190iM20AFKS..MXGA15202109-202412

main17430-F2320iM20AFXS..MXGH15202305-202412

17451GASKET, EXHAUST PIPE

main17451-0D132iM20AFKS..MXGA15202109-202412

main17451-0D140iM20AFKS..MXGA10202109-202412

main17451-24010iM20AFXS..MXGH15¥1,360202305-202412

17451AGASKET, EXHAUST PIPE, NO.2

main17451-24020iM20AFXS..MXGH15¥720202305-202412

main17451-75010iM20AFKS..MXGA15¥1,510202109-202311

sub17451-75011¥1,360

main17451-75011iM20AFKS..MXGA15¥1,360202311-202412

main17451-F2010iM20AFKS..MXGA10202109-202412

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0P031iM20AFKS..MXGA15202109-202412

main17565-0S011iM20AFKS..MXGA10202109-202412

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0P041iM20AFXS..MXGH15202109-202412

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-F2040iM20AFKS..MXGA10202109-202412

5305

5801

90105A0360

main90105-A0360

90109A0064

main90109-A0064

90109A0065

main90109-A0065

90501A0005

main90501-A0005

90501A0006

main90501-A0006

14 parts on this diagram · 4 diagrams in section
