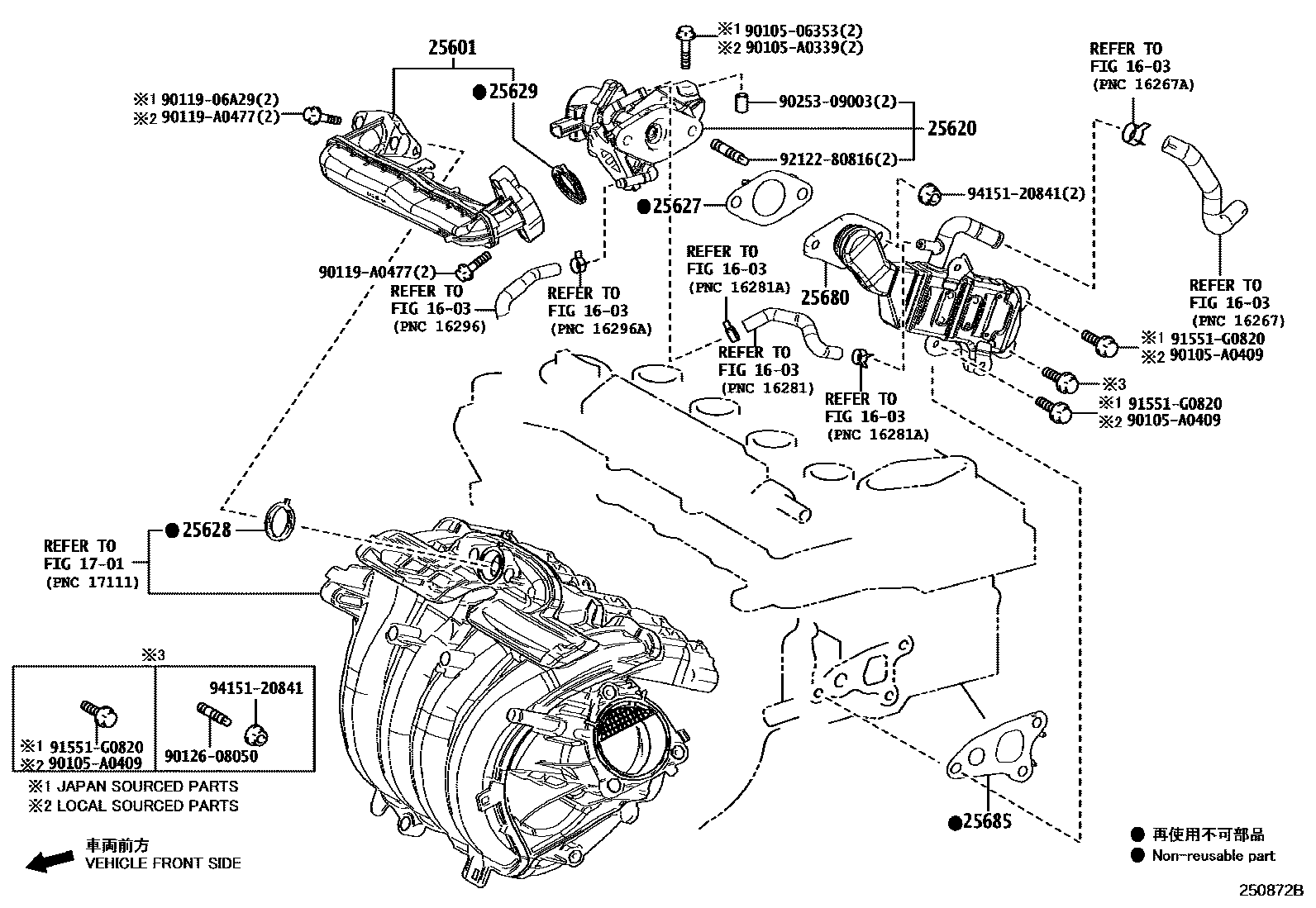

Toyota COROLLA CROSS — EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030iM20AFKS..MXGA1#¥3,140202211-202412

*502

main25601-F2011iM20AFKS..MXGA1#202109-202211

main25601-F2011iM20#..MXGA1#,MXGH15202211-202412

*704

25620VALVE ASSY, EGR

main25620-24050iM20#..MXGA1#,MXGH15¥18,400202211-202412

(J),*704

main25620-24050iM20AFKS..MXGA1#¥18,400202211-202412

*502

main25620-24050iM20AFKS..MXGA1#¥18,400202109-202211

(J)

main25620-F2010iM20AFKS..MXGA1#202109-202211

(L)

main25620-F2010iM20#..MXGA1#,MXGH15202211-202412

(L),*704

25627GASKET, EGR VALVE

main25627-24010iM20AFKS..MXGA1#¥270202211-202412

*502

main25627-F2010iM20#..MXGA1#,MXGH15202211-202412

*704

main25627-F2010iM20AFKS..MXGA1#202109-202211

25628GASKET, EGR INLET

main25628-25010iM20AFXS..MXGH15¥340202211-202412

*704,*502

main25628-25010iM20AFKS..MXGA1#¥340202109-202412

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20AFKS..MXGA1#¥340202211-202412

*502

main25629-25010iM20AFKS..MXGA1#¥340202211-202412

*704

main25629-25010iM20AFKS..MXGA1#¥340202109-202211

25680COOLER ASSY, EGR

main25680-24010iM20AFKS..MXGA1#¥16,700202211-202412

*704,*502

main25680-24010iM20AFKS..MXGA1#¥16,700202109-202211

main25680-24030iM20AFXS..MXGH15¥15,400202305-202412

25685GASKET, EGR COOLER, NO.1

main25685-25011iM20AFKS..MXGA1#¥270202109-202412

main25685-25011iM20AFKS..MXGA1#¥270202211-202412

*704,*502

9010506353

main90105-06353¥60

90105A0339

main90105-A0339

90105A0409

main90105-A0409

9011906A29

main90119-06A29¥60

90119A0477

main90119-A0477

9012608050

main90126-08050¥80

9025309003

main90253-09003¥50

91551G0820

main91551-G0820¥80

9212280816

main92122-80816¥70

9415120841

main94151-20841¥80

19 parts on this diagram · 1 diagram in section
