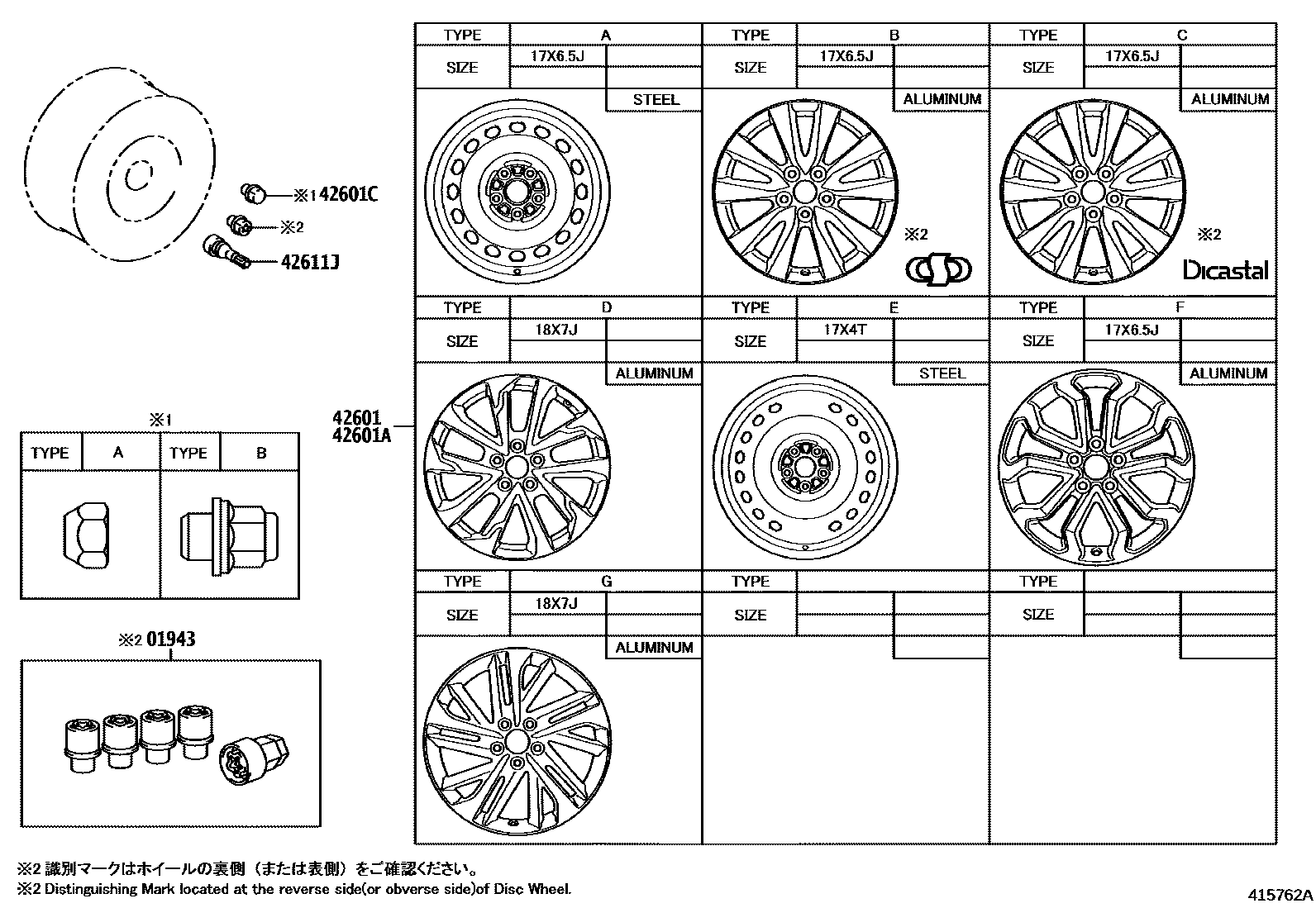

Toyota COROLLA CROSS — DISC WHEEL & WHEEL CAP
01943NUT, WHEEL LOCK W/SOCKET WRENCH
main09143-YY070
42601WHEEL, DISC
17X6.5J,TYPE A:REFER ILLUST.
17X6.5J,TYPE A:REFER ILLUST.
17X6.5J,TYPE A:REFER ILLUST.
17X6.5J,TYPE B:REFER ILLUST.
17X6.5J,TYPE B:REFER ILLUST.
17X6.5J,TYPE B:REFER ILLUST.
18X7J,CANADA SPEC&TIRE & DISC WHEEL-225/55R18 ALUMINUM WHEEL,TYPE D:REFER ILLUST.
18X7J,TYPE D:REFER ILLUST.
18X7J,MEXICO SPEC,TYPE D:REFER ILLUST.
18X7J,TYPE D:REFER ILLUST.
18X7J,TIRE & DISC WHEEL-225/55R18 ALL SEASON TIRE ALUMINUM WHEEL,TYPE D:REFER ILLUST.
18X7J,TYPE D:REFER ILLUST.
18X7J,CANADA SPEC&TIRE & DISC WHEEL-225/55R18 ALL SEASON TIRE ALUMINUM WHEEL,TYPED:REFER ILLUST.
17X6.5J,TYPE C:REFER ILLUST.
17X6.5J,TYPE C:REFER ILLUST.
17X6.5J,TYPE C:REFER ILLUST.
17X6.5J, #,TYPE F:REFER ILLUST.
17X6.5J, #,TYPE F:REFER ILLUST.
18X7J,#,TYPE G:REFER ILLUST.
18X7J,#,CANADA SPEC&TIRE & DISC WHEEL-225/55R18 ALUMINUM WHEEL,TYPE G:REFER ILLUST.
18X7J,#,TYPE G:REFER ILLUST.
18X7J,#,CANADA SPEC&TIRE & DISC WHEEL-225/55R18 ALUMINUM WHEEL SPORT,TYPE G:REFERILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE E:REFER ILLUST.
17X4T,TYPE E:REFER ILLUST.
17X4T,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
WHEEL LOCKS-WITH(ACCESSORY),TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
WHEEL LOCKS-WITH,TYPE B:REFER ILLUST.
(J),T/P A:REF.ILLUST
(J),T/P A:REF.ILLUST
(J),T/P A:REF.ILLUST
(L),T/P A:REF.ILLUST
(L),T/P A:REF.ILLUST
(L),T/P A:REF.ILLUST
WHEEL LOCKS-WITH(ACCESSORY)&TIRE & DISC WHEEL-225/55R18 ALUMINUM WHEEL SPORT BLACK,TYPE B:REFER ILLUST.
WHEEL LOCKS-WITH(ACCESSORY),TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
WHEEL LOCKS-WITH(ACCESSORY),TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
5 parts on this diagram · 2 diagrams in section
