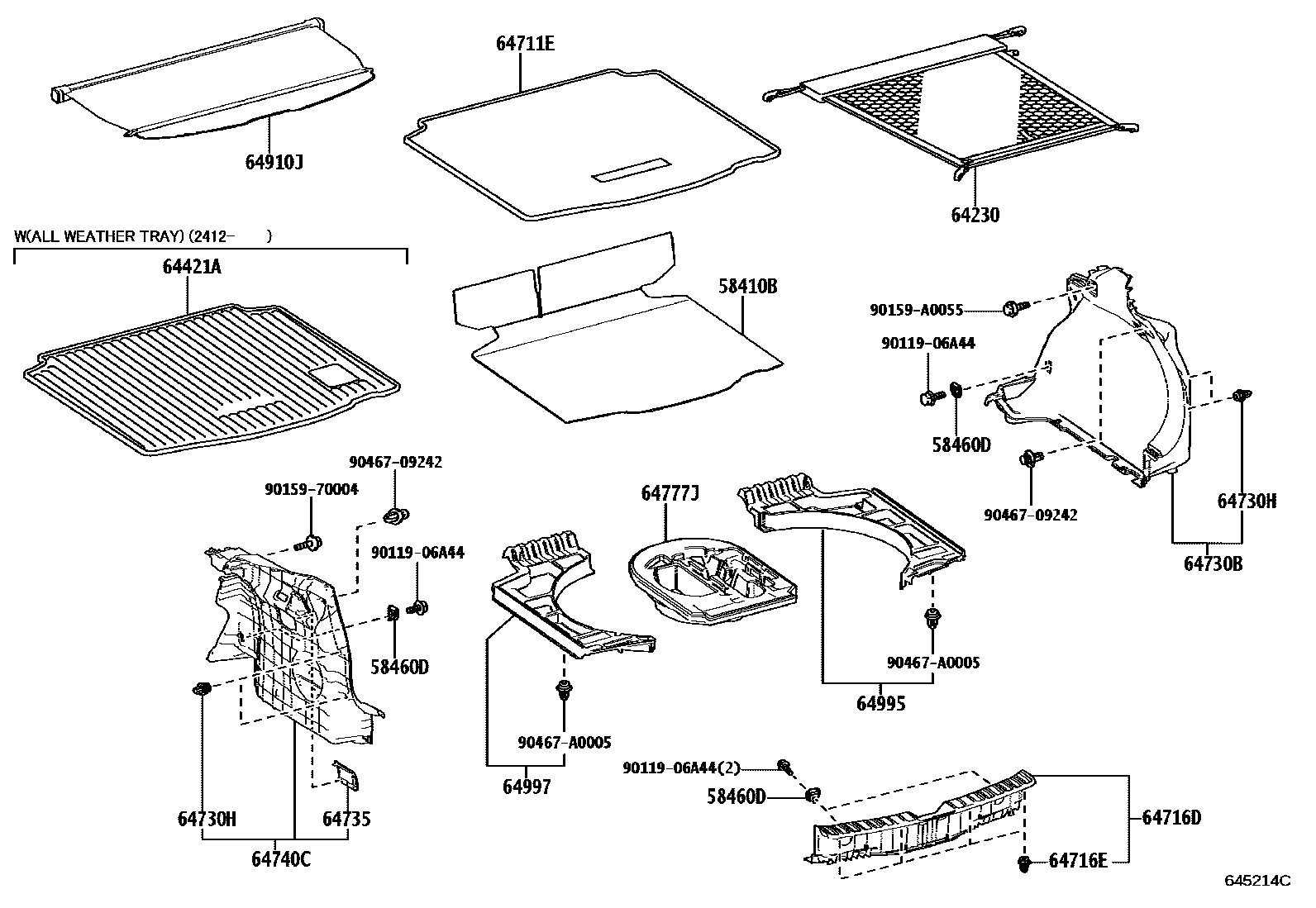

Toyota COROLLA CROSS — DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1

58410BBOARD ASSY, DECK

main58410-0A100-C0iMXGA10..L,LE202109-202412

BLACK,TRIM1#,2#

main58410-0A100-C0iMXGA10..XLE202109-202412

BLACK,TRIM0#,2#

main58410-0A110-C0iMXGA15..XLE202109-202204

BLACK,TRIM1#,2#

sub58410-0A111

main58410-0A110-C0iMXGA15..XLE202109-202204

BLACK,TRIM0#,2#

sub58410-0A111

main58410-0A111-C0iMXGA15..LE202205-202412

BLACK,TRIM1#,2#

main58410-0A111-C0iMXGA15..LE202205-202211

BLACK,TRIM1#

main58410-0A111-C0iMXGA15..L202205-202412

BLACK,TRIM0#,2#

main58410-0A111-C0iMXGH15..XSE202305-202412

BLACK,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMXGA1#¥620202109-202412

64230NET ASSY, ROOM PARTITION

main64230-YY130

64421ATRAY, LUGGAGE COMPARTMENT

64711EMAT, LUGGAGE COMPARTMENT FLOOR

64716DCOVER, DECK TRIM, REAR

main64716-0A040-C0iMXGA1#,MXGH15..XLE202305-202412

BLACK,TRIM2#

main64716-0A040-C0iMXGH15..XSE202109-202412

BLACK,TRIM1#,2#

main64716-0A040-C0iMXGH15..XSE202109-202412

BLACK,TRIM0#,2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-A0006iMXGA1#,MXGH15¥80202109-202412

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0A040-C0iMXGA1#..L,LE202109-202412

BLACK,TRIM1#,2#

main64730-0A090-C0iMXGA1#..XLE202412

AUDIO-ENTRY 8INCH & JBL 9SPEAKER,BLACK,TRIM1#,2#

main64730-0A090-C0iMXGA1#..LE202109-202412

BLACK,TRIM0#,2#

main64730-0A170-C0iMXGH15..LE,S,SE202305-202412

BLACK,TRIM1#,2#

main64730-0A180-C0iMXGH15..XLE202305-202412

BLACK,TRIM0#,2#

main64730-0A180-C0iMXGH15..XLE202412

AUDIO-ENTRY 8INCH & JBL 9SPEAKER,BLACK,TRIM1#,2#

main64730-0A180-C0iMXGH15..LE,SE202305-202412

BLACK,TRIM2#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-A0006iMXGA1#,MXGH15¥80202109-202412

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-0A010-C0iMXGA1#..LE202109-202412

BLACK,TRIM0#,2#

main64735-0A010-C0iMXGA1#,MXGH15..L,LE,S,SE202109-202412

BLACK,TRIM1#,2#

main64735-0A010-C0iMXGA1#,MXGH15..L,LE,S,SE202305-202412

BLACK,TRIM2#

main64735-0A010-C0iMXGA1#..XLE202109-202211

BLACK,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0A040-C0iMXGA1#,MXGH15..L,LE,S,SE202109-202412

BLACK,TRIM1#,2#

main64740-0A090-C0iMXGH15..XSE202305-202412

BLACK,TRIM2#

main64740-0A090-C0iMXGH15..XSE202109-202412

BLACK,TRIM0#,2#

64777JCUSHION, SPARE WHEEL

main64777-0A071iMXGA10202109-202412

main64777-0A110iMXGA15202109-202412

main64777-0A140iMXGH15202305-202412

64910JCOVER ASSY, TONNEAU

main64910-0A020-C0iMXGA1#,MXGH15..LE,SE202109-202412

BLACK,TRIM0#,2#

main64910-0A020-C0iMXGA1#,MXGH15..LE,SE202305-202412

BLACK,TRIM2#

main64910-0A020-C0iMXGA1#,MXGH15..LE,SE202109-202412

TONNEAU COVER-WITH,BLACK,TRIM1#,2#

64995BOX, DECK FLOOR, RH

main64995-0A070-C0iMXGA10..XLE202109-202412

BLACK,TRIM0#,2#

main64995-0A070-C0iMXGA10..XLE202109-202412

BLACK,TRIM1#,2#

main64995-0A100-C0iMXGA15..L,LE202109-202412

BLACK,TRIM0#,2#

main64995-0A100-C0iMXGA15..L,LE202109-202412

BLACK,TRIM1#,2#

main64995-0A150-C0iMXGH15..LE,S,SE202305-202412

BLACK,TRIM1#,2#

main64995-0A150-C0iMXGH15..XSE202305-202412

BLACK,TRIM2#

main64995-0A150-C0iMXGH15..XSE202305-202412

BLACK,TRIM0#,2#

64997BOX, DECK FLOOR, LH

main64997-0A070-C0iMXGA10..XLE202109-202412

BLACK,TRIM1#,2#

main64997-0A070-C0iMXGA10..L,LE202109-202412

BLACK,TRIM0#,2#

main64997-0A100-C0iMXGA15,MXGH15..XLE202109-202412

BLACK,TRIM1#,2#

main64997-0A100-C0iMXGA15,MXGH15..L,LE,S,SE202305-202412

BLACK,TRIM2#

main64997-0A100-C0iMXGA15,MXGH15..L,LE,S,SE202109-202412

BLACK,TRIM0#,2#

9011906A44

main90119-06A44¥60

9015970004

main90159-70004¥60

90159A0055

main90159-A0055

9046709242

main90467-09242¥120

90467A0005

main90467-A0005

20 parts on this diagram · 3 diagrams in section
