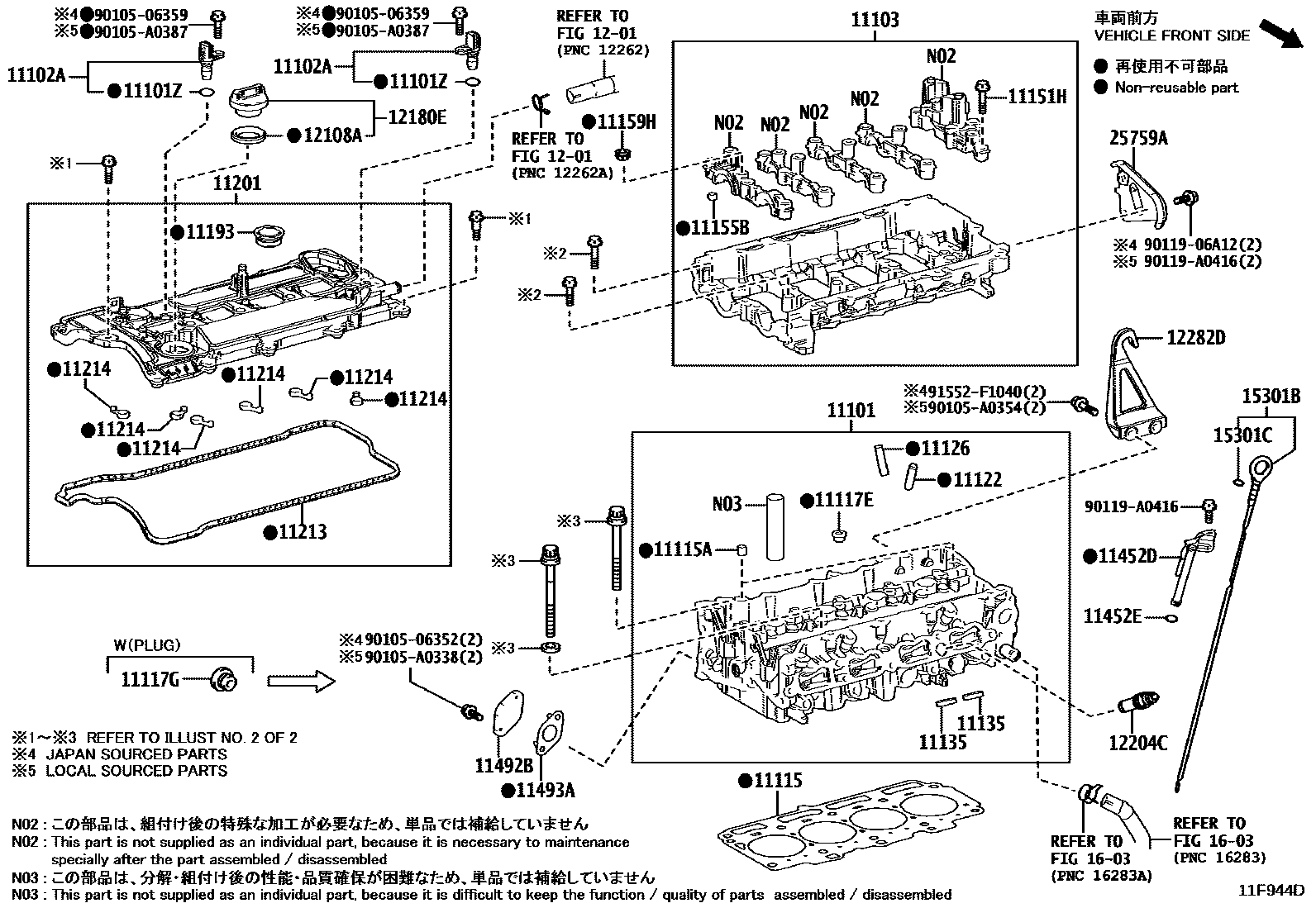

Toyota COROLLA CROSS — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(J),*704
(J),*704
(J)
(J)
(L),*704
(L),*704
*502
(L)
(L)
11101ZO RING, CAM POSITION SENSOR
*704
*704,*502
*502
11102ASENSOR, CAMSHAFT POSITION
*502
*704
11103HOUSING SUB-ASSY, CAMSHAFT
*704
*502
11115GASKET, CYLINDER HEAD
*502
*704
11115APIN, RING
*704
*502
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*502
(J),*704
(J),*704,*502
(J)
(L),*704
(L)
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
*704,*502
11122BUSH, INTAKE VALVE GUIDE
STD
STD,*704,*502
O/S 0.05
O/S 0.05,*704,*502
11126BUSH, EXHAUST VALVE GUIDE
STD,*502
STD
STD,*704
O/S 0.05,*502
O/S 0.05,*704
O/S 0.05
11135SEAT, EXHAUST VALVE
STD,(J),*704
STD,(J)
STD,*502
STD,(L),*704
STD,(L)
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*502
*704
11155BPIN, RING
*704,*502
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*704,*502
11193GASKET, SPARK PLUG TUBE
*502
*704
11213GASKET, CYLINDER HEAD COVER
*704,*502
11214GASKET, CYLINDER HEAD COVER, NO.2
*704,*502
11452DGUIDE, OIL LEVEL GAGE
*502
*704
11452ERING, O(FOR OIL LEVEL GAGE GUIDE)
*502
*704
11492BPLATE, WATER SEAL
*704
*502
11493AGASKET, WATER SEAL PLATE
*502
*704
1201
12108AGASKET(FOR OIL FILLER CAP)
*704
*502
12180ECAP ASSY, OIL FILLER
*502
*704
12204CVALVE SUB-ASSY, VENTILATION
*502
*704
12282DHANGER, ENGINE, NO.2
*502
*704
15301BGAGE SUB-ASSY, OIL LEVEL
*704
*502
15301CRING, O(FOR OIL LEVEL GAGE)
*502
*704
1603
25759ABRACKET, VACUUM SURGE TANK
*704
*502
9010506352
9010506359
90105A0338
main90105-A0338
90105A0354
main90105-A0354
90105A0387
main90105-A0387
9011906A12
90119A0416
main90119-A0416
91552F1040
39 parts on this diagram · 3 diagrams in section
