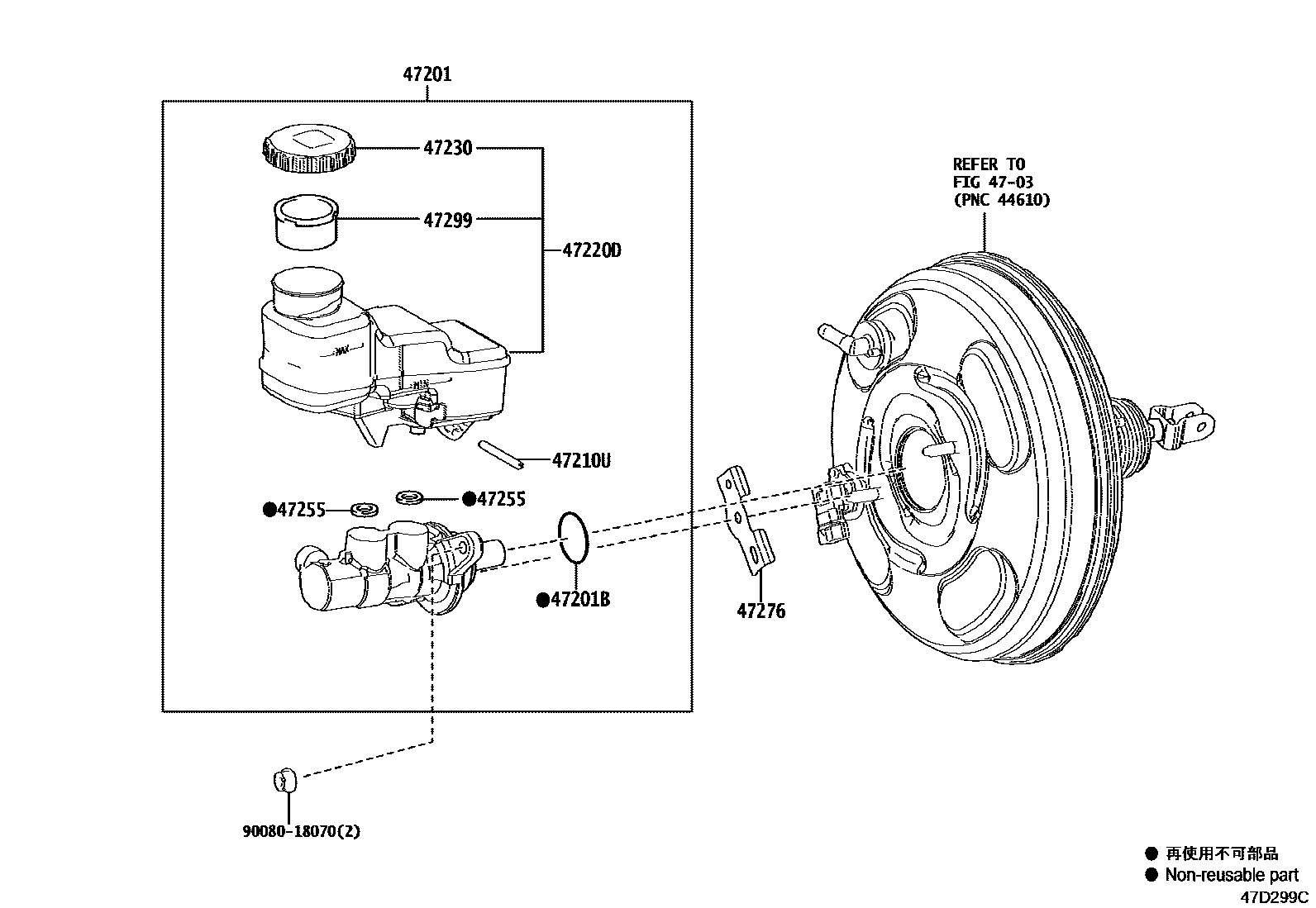

Toyota COROLLA CROSS — BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0A120iMXGA1#202109-202412

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iMXGA1#¥200202109-202412

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iMXGA1#¥130202109-202412

main90069-35007iMXGH15¥130202305-202412

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-02310iMXGA1#202109-202412

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02310iMXGA1#202109-202412

main47230-82090iMXGA15202109-202211

main47230-F4010iMXGH15202305-202412

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iMXGA1#¥360202109-202412

sub90016-AT001¥360

47276BRACKET, BRAKE MASTER CYLINDER

main47276-12050iMXGA1#202109-202412

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iMXGH15¥600202305-202412

main47299-20060iMXGA1#¥140202109-202412

9008018070

main90080-18070¥50

10 parts on this diagram · 2 diagrams in section
