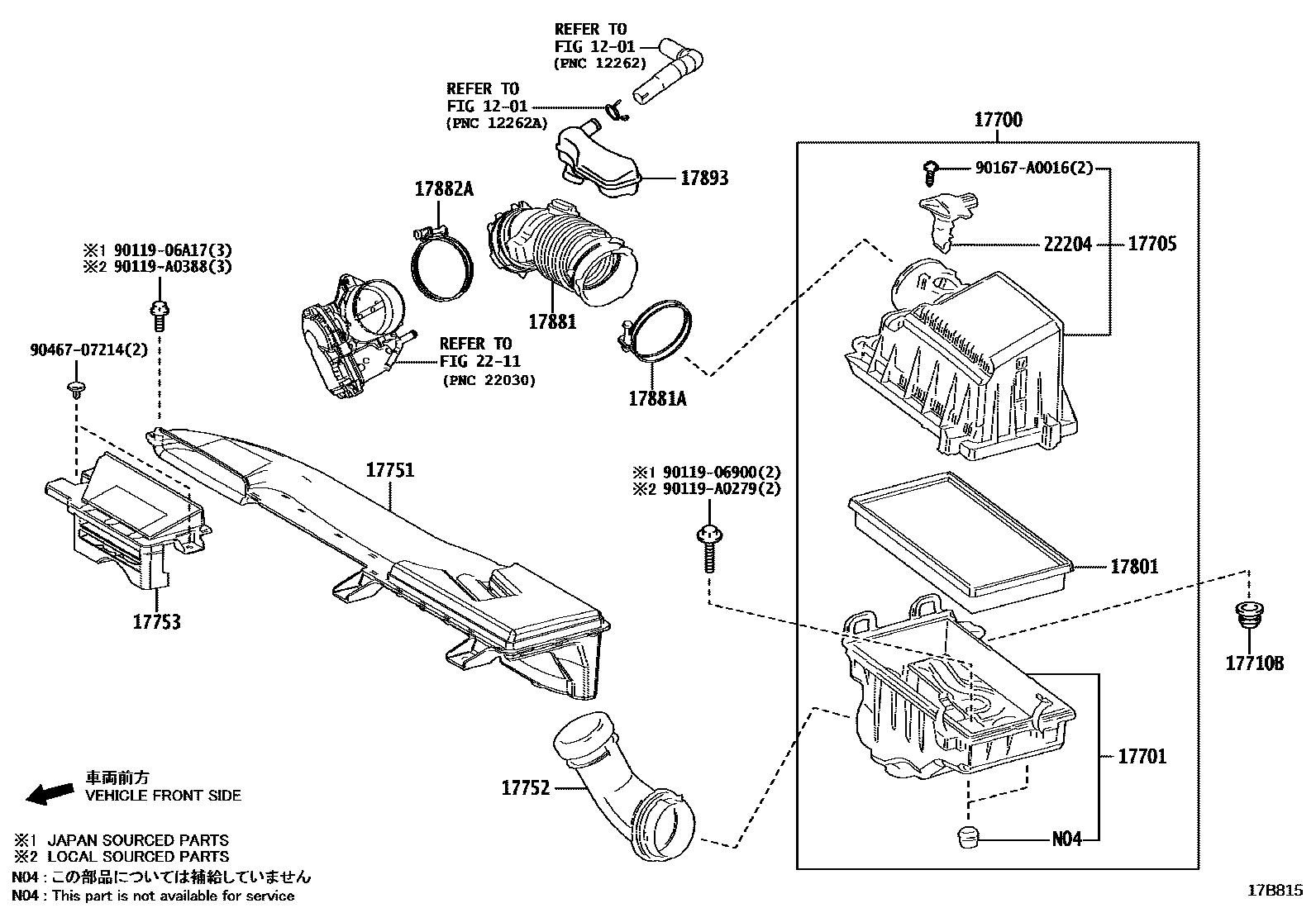

Toyota COROLLA CROSS — AIR CLEANER
1201
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17753INLET, AIR CLEANER, NO.3
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(J)
(J)
(J)
(J)
(J)
(L)
(L)
(L)
(L)
(L)
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
9011906900
9011906A17
90119A0279
main90119-A0279
90119A0388
main90119-A0388
90167A0016
main90167-A0016
9046707214
21 parts on this diagram · 2 diagrams in section
