Toyota COROLLA CROSS — WATER PUMP

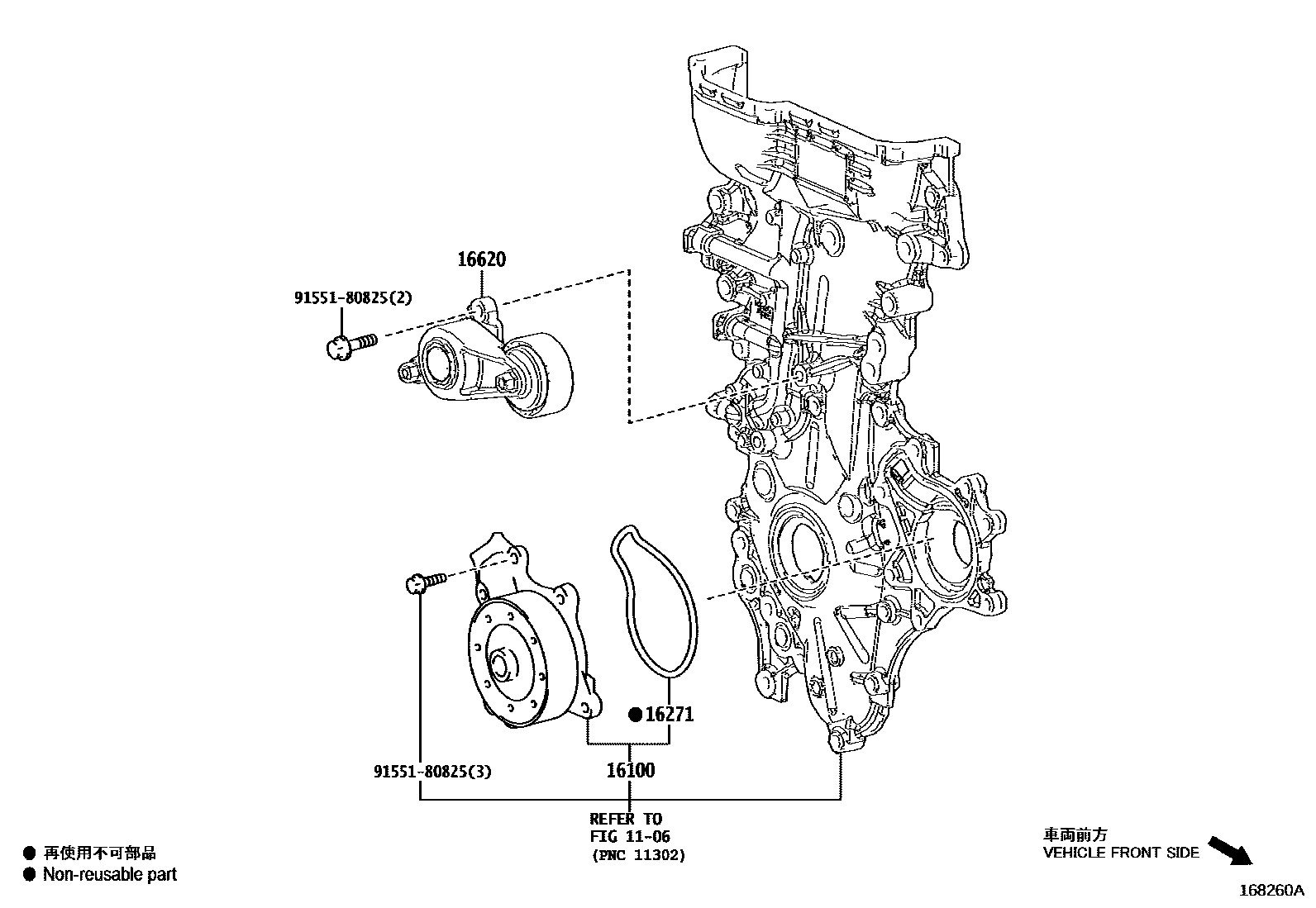

Parts diagram

1106

16100PUMP ASSY, ENGINE WATER

main16100-39565i¥10,500202108-202310

main161A0-39035i¥15,000202108-202310

main161A0-39045i¥15,000202310

16271GASKET, WATER PUMP

main16271-37020i¥470202108-202310

main16271-37030i¥520202108-202310

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0T040i¥11,200202108-202310

9155180825

main91551-80825¥80

5 parts on this diagram · 3 diagrams in section
