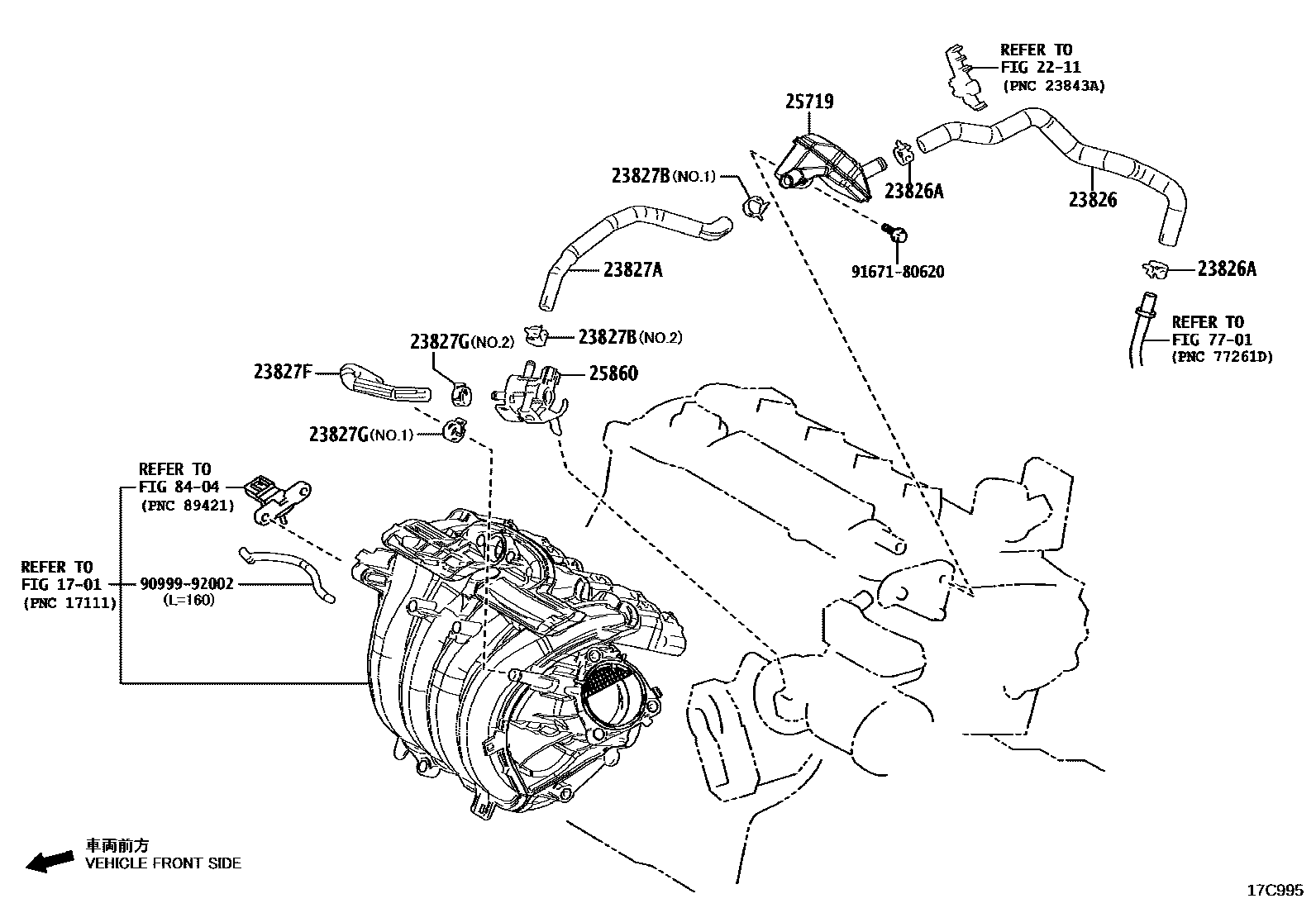

Toyota COROLLA CROSS — VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1701

2211

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-24030iM20AFKS..MXGA10202310

main23826-37220i2ZRFAE..ZSG10¥1,700202108-202310

main23826-37250i2ZRFXE..ZVG1#¥1,300202108-202411

main23826-37340i2ZRFXE..ZVG1#¥820202411

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96136-41901iM20AFKS..MXGA10¥120202310

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-24100iM20AFKS..MXGA10¥1,320202310

main23827-37070i2ZRFXE..ZVG1#¥2,340202108-202310

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96138-41501iM20AFKS..MXGA10¥120202310

main96138-41801iM20AFKS..MXGA10¥120202310

23827FHOSE, FUEL VAPOR FEED, NO.3

main23826-24110iM20AFKS..MXGA10¥640202310

23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)

main96138-41501iM20AFKS..MXGA10¥120202310

main96138-41801iM20AFKS..MXGA10¥120202310

25719TANK, VACUUM SURGE

main25719-24020iM20AFKS..MXGA10¥1,030202310

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-24050iM20AFKS..MXGA10¥3,480202310

7701

8404

9099992002

main90999-92002¥460

9167180620

main91671-80620¥60

14 parts on this diagram · 4 diagrams in section
