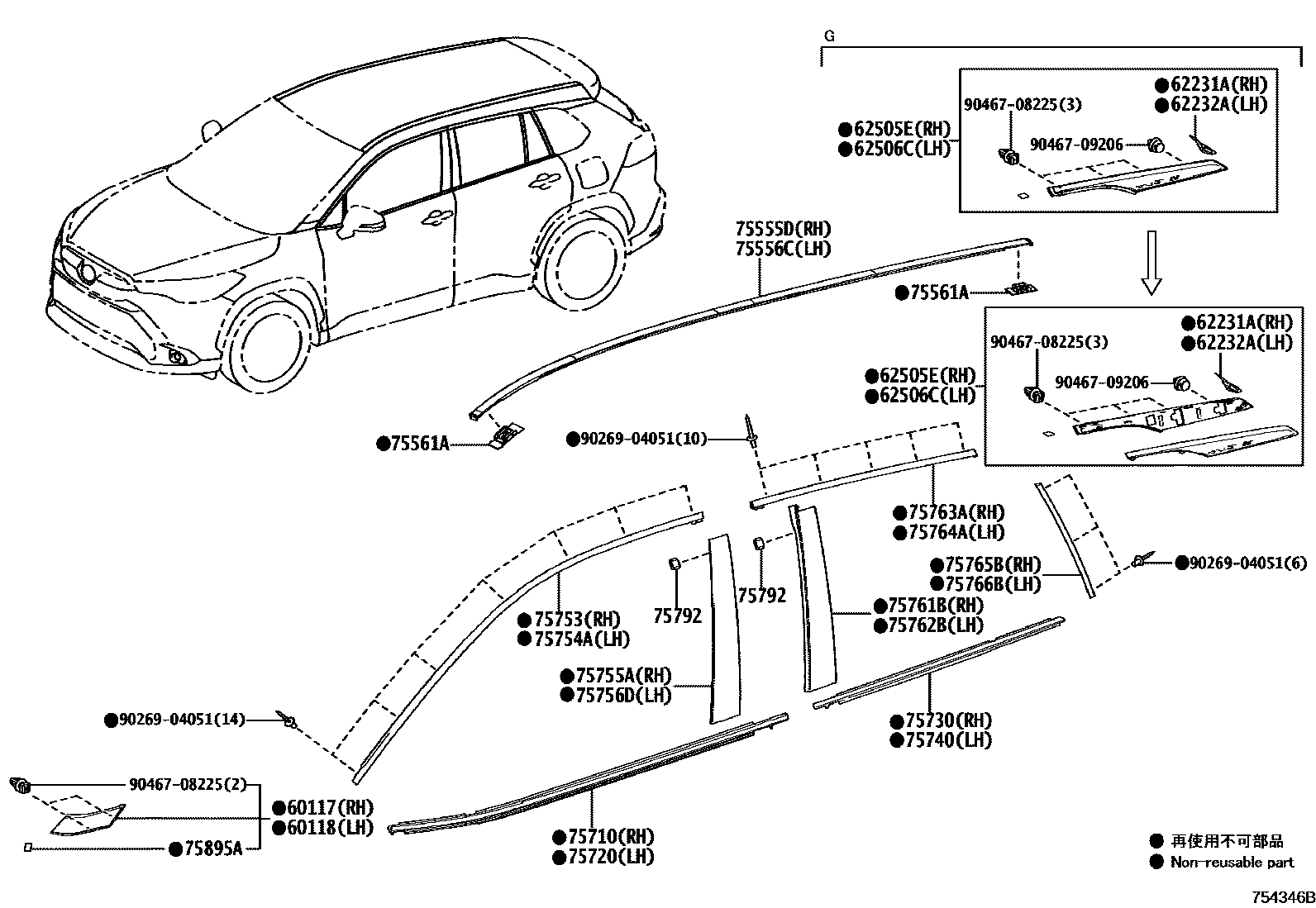

Toyota COROLLA CROSS — SIDE MOULDING

0001 1���� & ������������ 0002 1��� & ������������

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-16010iMXGA10,ZVG1#¥840202108-202310

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-16010iMXGA10,ZVG1#¥840202108-202310

62231APAD, QUARTER PILLAR, RH

main62523-16040iMXGA10,ZVG1#..G¥170202108-202310

main62523-16050iZSG10,ZVG1#..S,Z¥170202108-202310

62232APAD, QUARTER PILLAR, LH

main62524-16040iMXGA10,ZVG1#..G¥170202108-202310

main62524-16050iZSG10,ZVG1#..S,Z¥170202108-202310

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-16010iZSG10,ZVG1#..G¥2,090202108-202310

main62505-16020iZSG10,ZVG1#..S,Z¥5,400202108-202310

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-16010iMXGA10,ZVG1#..G¥2,090202108-202310

main62506-16020iMXGA10,ZVG1#..S,Z¥5,400202108-202310

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-16010iZSG10,ZVG1#..G¥4,580202108-202310

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-16010iMXGA10,ZVG1#..G¥4,580202108-202310

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-48020iMXGA10,ZVG1#..G¥110202108-202310

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-16220iMXGA10,ZVG1#¥2,960202108-202310

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-16220iMXGA10,ZVG1#¥2,960202108-202310

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-16090iZSG10,ZVG1#¥2,400202108-202310

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-16090iMXGA10,ZVG1#¥2,400202108-202310

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-16010iZSG10,ZVG1#..G¥2,960202108-202310

main75753-16010iMXGA10,ZVG1#..G¥2,960202310

main75753-16020iMXGA10,ZVG1#..S,Z¥2,960202310

main75753-16020iZSG10,ZVG1#..S,Z¥2,960202108-202310

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-16010iMXGA10,ZVG1#..G¥2,960202310

main75754-16010iZSG10,ZVG1#..G¥2,960202108-202310

main75754-16020iMXGA10,ZVG1#..S,Z¥2,960202310

main75754-16020iZSG10,ZVG1#..S,Z¥2,960202108-202310

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-16010iZSG10,ZVG1#¥1,120202108-202310

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-16010iMXGA10,ZVG1#¥1,120202108-202310

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-16010iMXGA10,ZVG1#¥1,480202108-202310

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-16010iMXGA10,ZVG1#¥1,480202108-202310

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-16010iMXGA10,ZVG1#..G¥1,850202108-202310

main75763-16020iMXGA10,ZVG1#..S,Z¥1,850202108-202310

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-16010iMXGA10,ZVG1#..G¥1,850202108-202310

main75764-16020iMXGA10,ZVG1#..S,Z¥1,850202108-202310

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-16010iMXGA10,ZVG1#¥1,400202108-202310

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-16010iMXGA10,ZVG1#¥1,400202108-202310

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010iMXGA10,ZVG1#¥70202108-202310

75895ATAPE, MOULDING, NO.1

main75895-16030iMXGA10,ZVG1#¥430202108-202310

9026904051

main90269-04051¥40

9046708225

main90467-08225¥60

9046709206

main90467-09206¥80

28 parts on this diagram · 2 diagrams in section
