Toyota COROLLA CROSS — ROOF PANEL & BACK WINDOW GLASS

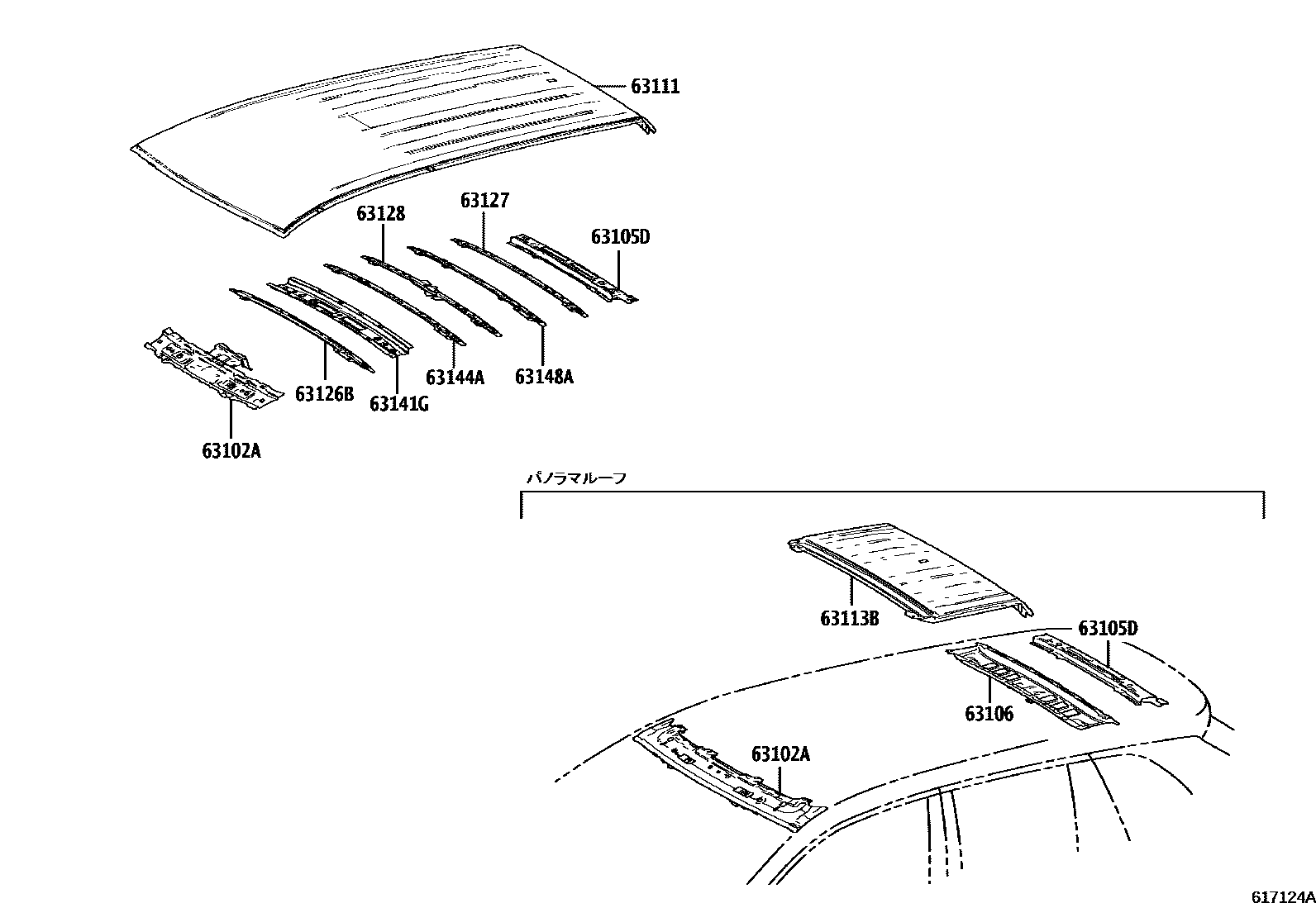

Parts diagram

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-16050i¥4,420202310

main63102-16050i¥4,420202108-202310

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-16070i¥4,420202310

main63105-16070i¥4,420202108-202310

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-16010¥4,420

63111PANEL, ROOF

main63111-16320i¥39,700202310

main63111-16320i¥39,700202108-202310

main63111-16330i¥43,700202108-202310

sub63111-16331¥39,700

sub90333-16003¥80

main63111-16330i¥43,700202310-202401

sub63111-16331¥39,700

sub90333-16003¥80

main63111-16331i¥39,700202401

63113BPANEL, ROOF, REAR

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-16030i¥1,420202108-202310

main63126-16030i¥1,420202310

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-16030i¥1,170202108-202310

main63127-16030i¥1,170202310

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-16010i¥1,390202310

main63128-16010i¥1,390202108-202310

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-16130i¥6,100202310

main63141-16130i¥6,100202108-202310

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-16050i¥1,220202310

main63144-16050i¥1,220202108-202310

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-16040i¥1,240202310

main63148-16040i¥1,240202108-202310

11 parts on this diagram · 4 diagrams in section
