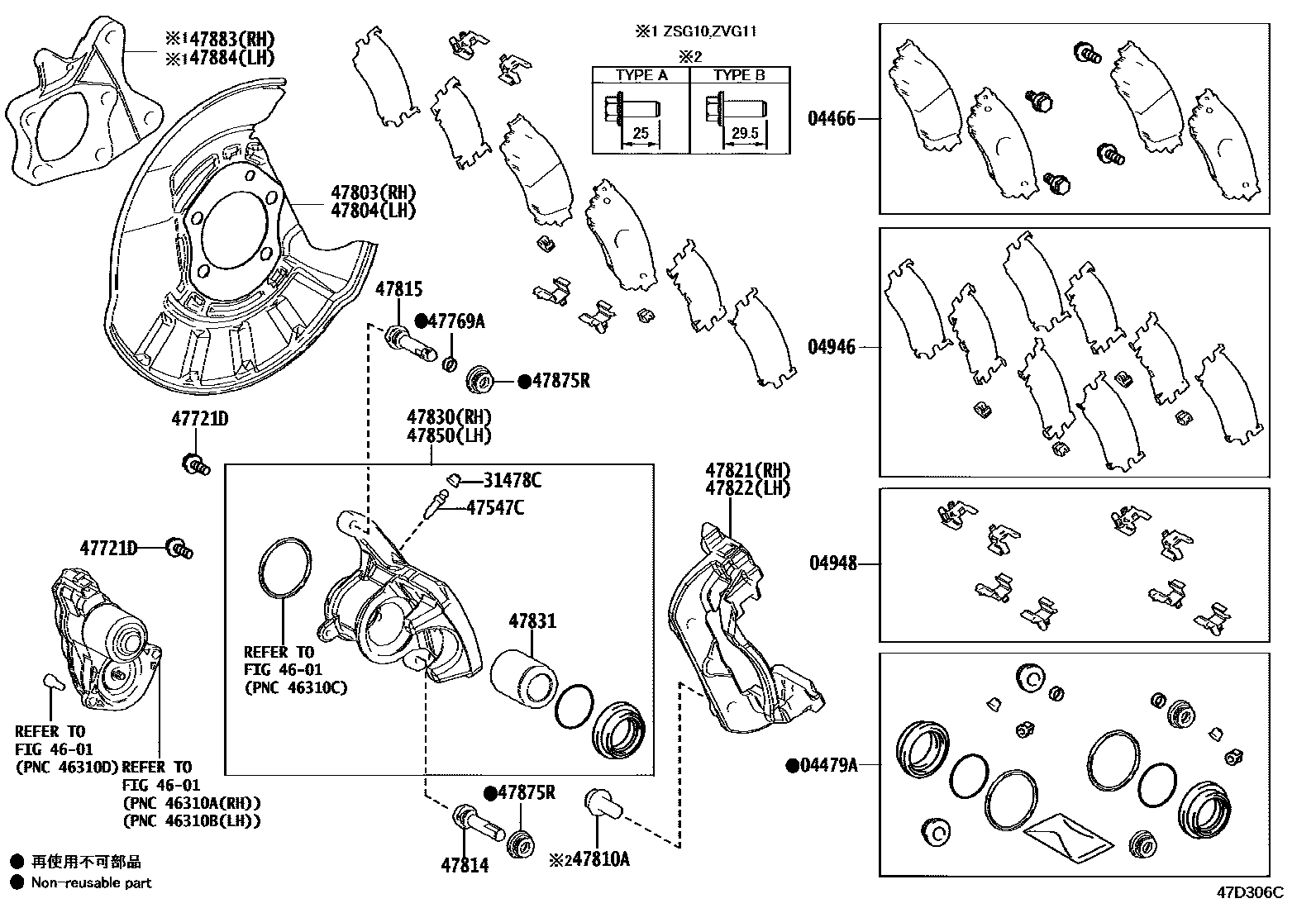

Toyota COROLLA CROSS — REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
�}�[�N�@�m�a�j�@�S�V�W�|�w�`�T
�}�[�N�@�m�a�j�@�S�V�W�|�w�`�T
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
���W�|�P�D�O�O�o�w�Q�R�|�P�Q�D�T
���W�|�P�D�O�O�o�w�Q�R�|�P�Q�D�T
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47821MOUNTING, REAR DISC BRAKE CYLINDER, RH
47822MOUNTING, REAR DISC BRAKE CYLINDER, LH
47830CYLINDER ASSY, DISC BRAKE, REAR RH
47831PISTON, REAR DISC BRAKE
47850CYLINDER ASSY, DISC BRAKE, REAR LH
47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47883BRACKET, CALIPER SUPPORT, REAR RH
47884BRACKET, CALIPER SUPPORT, REAR LH
22 parts on this diagram · 1 diagram in section
