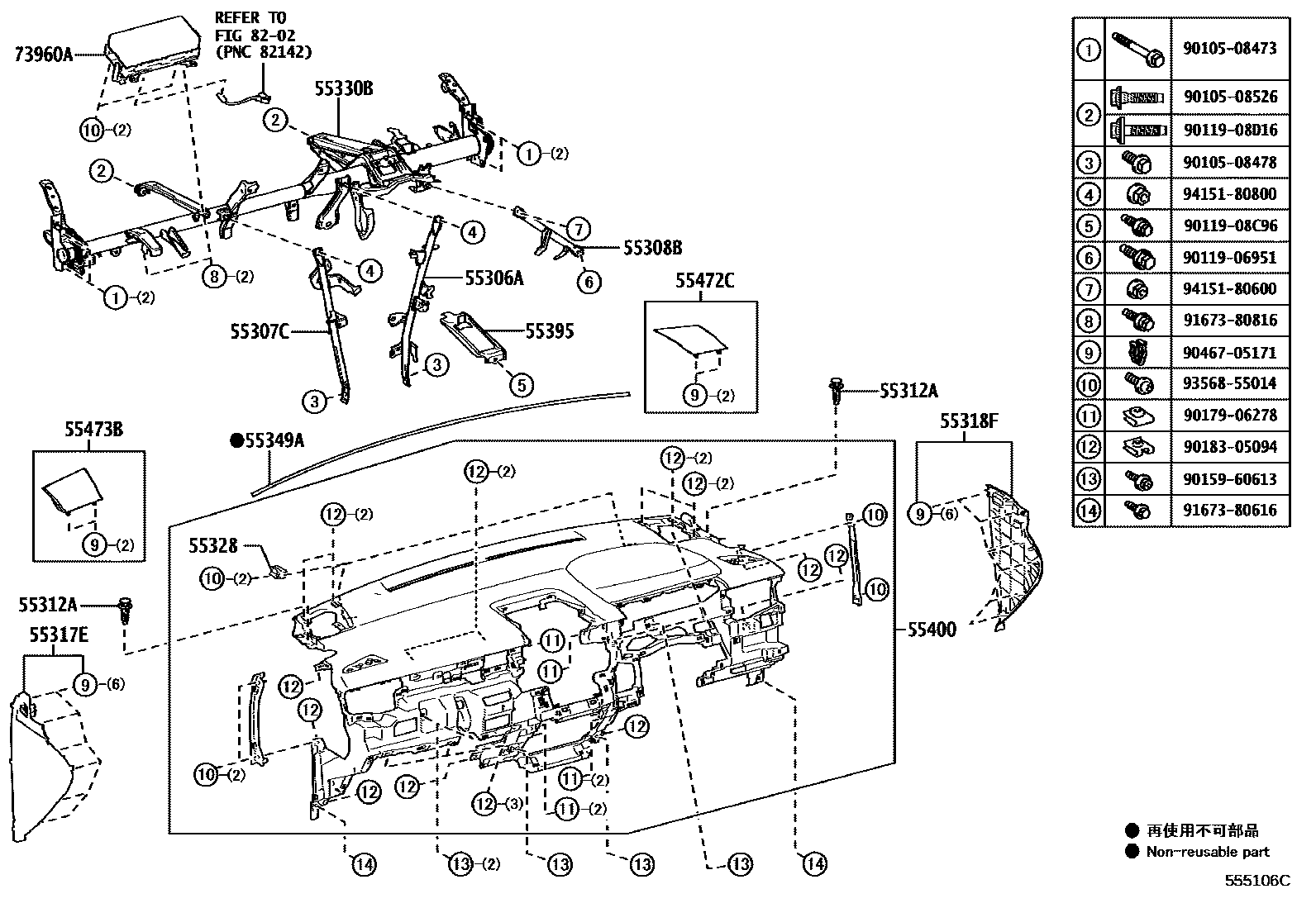

Toyota COROLLA CROSS — INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55312ACLIP, INSTRUMENT PANEL
55317EPANEL, INSTRUMENT SIDE, NO.1
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#,8#
55318FPANEL, INSTRUMENT SIDE, NO.2
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM1#,2#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55395BRACKET, INSTRUMENT PANEL TO PEDAL
55400PAD ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#,8#
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM1#,2#
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM1#,2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9010508473
9010508478
9010508526
9011906951
9011908C96
9011908D16
9015960613
9017906278
9018305094
9046705171
9167380616
9167380816
9356855014
9415180600
9415180800
30 parts on this diagram · 4 diagrams in section
