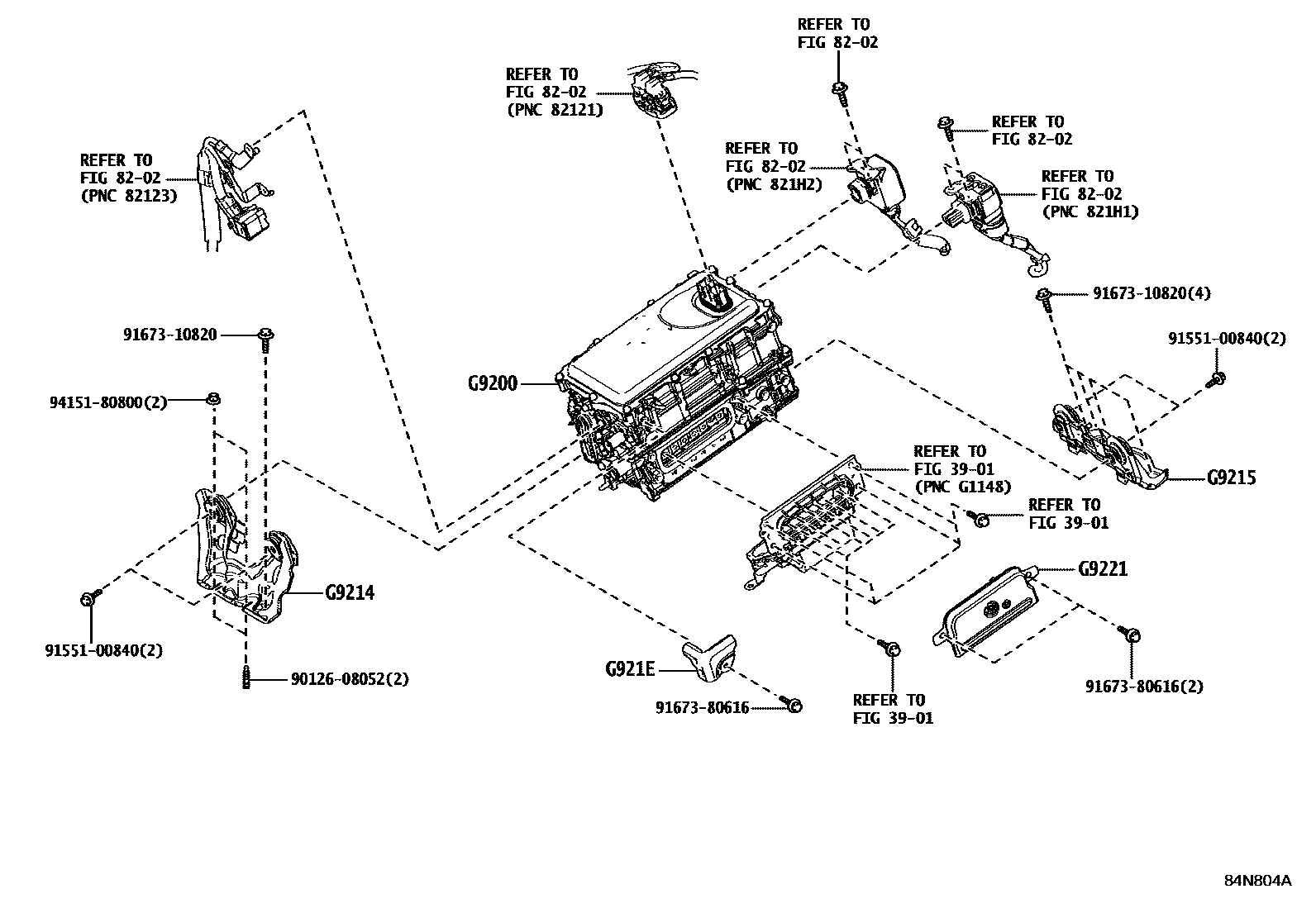

Toyota COROLLA CROSS — HEV INVERTER

0001 1����(���������������) 0002 1����(������ASSY) 0003 1�� 0004 1

3901

8202

G9200INVERTER ASSY, W/CONVERTER

mainG920049136iZVG11202108-202310

mainG920049146iZVG15202108-202310

mainG92A047220iZVG13202310

mainG92A047231iZVG16202310

G9214BRACKET, INVERTER, NO.1

mainG921428090iZVG1#202310

mainG921447070iZVG1#202108-202310

G9215BRACKET, INVERTER, NO.2

mainG921528050iZVG13202310

mainG921528060iZVG16202310

mainG921547050iZVG1#202108-202310

G921EPROTECTOR, INVERTER

mainG921E47010iZVG1#202108-202310

G9221COVER, INVERTER

mainG902228030iZVG1#202310

mainG902247050iZVG1#202108-202310

9012608052

main90126-08052¥80

9155100840

main91551-00840¥80

9167310820

main91673-10820¥80

9167380616

main91673-80616¥60

9415180800

main94151-80800¥80

12 parts on this diagram · 4 diagrams in section
