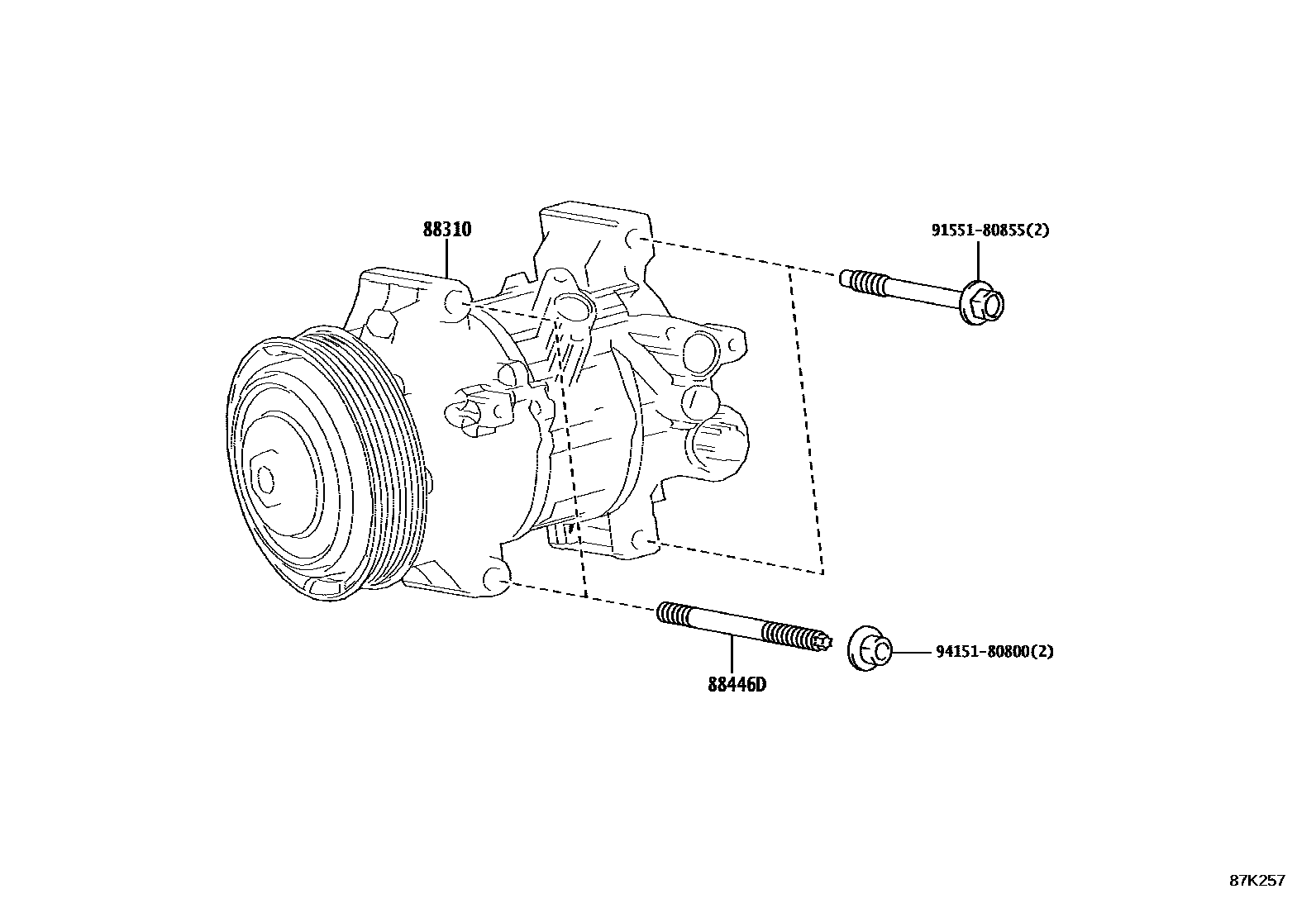

Toyota COROLLA CROSS — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-16700iMXGA10202108-202310

88446DBOLT, COOLER

main90126-08072iMXGA10202108-202310

9155180855

main91551-80855¥100

9415180800

main94151-80800¥80

4 parts on this diagram · 2 diagrams in section
