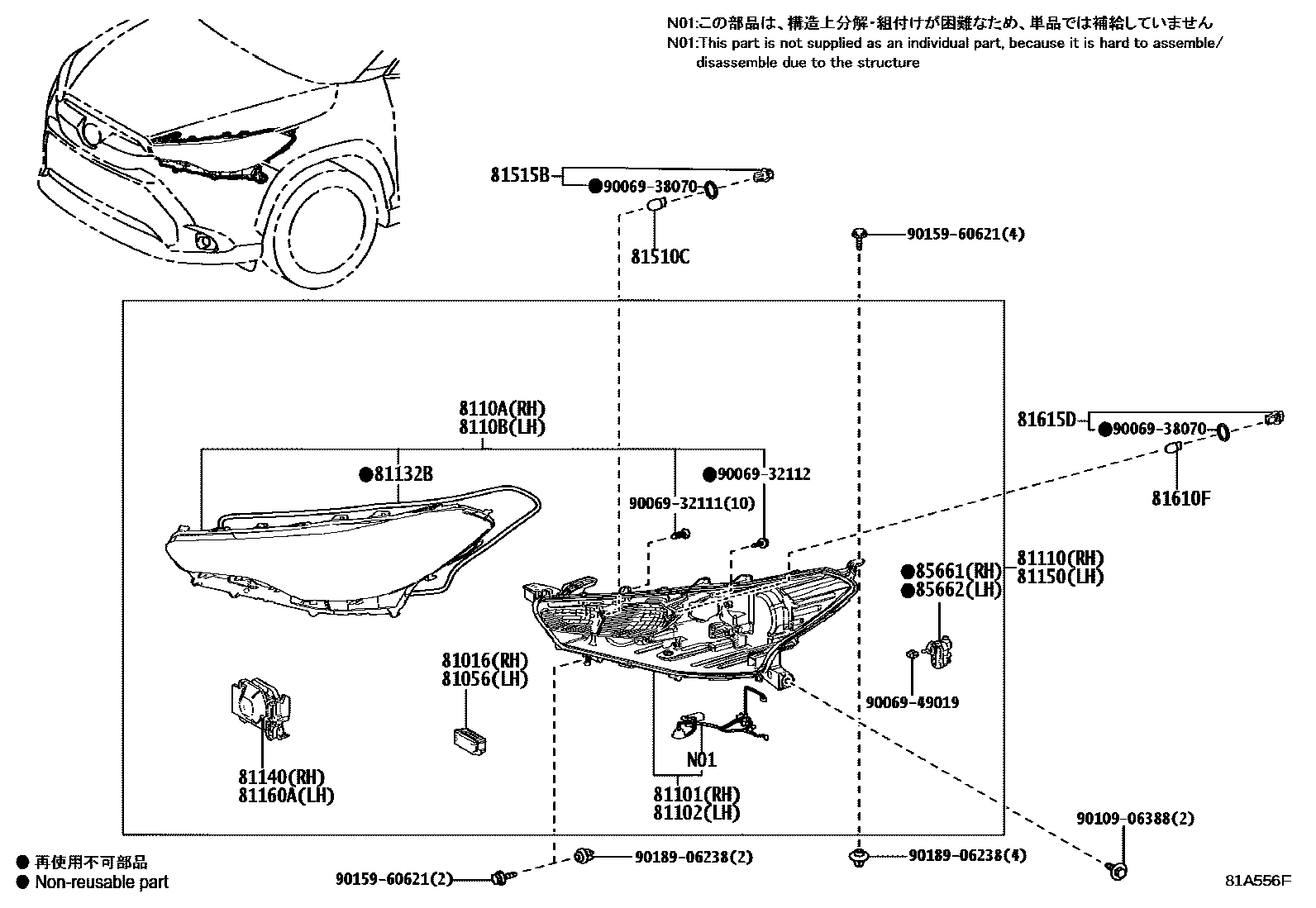

Toyota COROLLA CROSS — HEADLAMP
81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1
81101HOUSING SUB-ASSY, HEADLAMP, RH
�w�b�h�����v�|�@�k�d�c�i�V�[�P���V�����j�@���@���`�g�a
81102HOUSING SUB-ASSY, HEADLAMP, LH
�w�b�h�����v�|�@�k�d�c�i�V�[�P���V�����j�@���@���`�g�a
8110ALENS SUB-ASSY, HEADLAMP, RH
�w�b�h�����v�|�@�k�d�c�i�V�[�P���V�����j�@���@���`�g�a
8110BLENS SUB-ASSY, HEADLAMP, LH
�w�b�h�����v�|�@�k�d�c�i�V�[�P���V�����j�@���@���`�g�a
81110HEADLAMP ASSY, RH
�w�b�h�����v�|�@�k�d�c�i�V�[�P���V�����j�@���@���`�g�a
81132BGASKET, HEADLAMP LENS
81140UNIT ASSY, HEADLAMP LED, RH
�w�b�h�����v�|�@�k�d�c�i�V�[�P���V�����j�@���@���`�g�a
81150HEADLAMP ASSY, LH
�w�b�h�����v�|�@�k�d�c�i�V�[�P���V�����j�@���@���`�g�a
81160AUNIT ASSY, HEADLAMP LED, LH
�w�b�h�����v�|�@�k�d�c�i�V�[�P���V�����j�@���@���`�g�a
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
�P�Q�u�@�Q�P�v
�P�Q�u�@�Q�P�v
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
�P�Q�u�@�Q�P�^�T�v
�P�Q�u�@�Q�P�^�T�v
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
9006932111
9006932112
9006938070
9006949019
9010906388
9015960621
9018906238
24 parts on this diagram · 3 diagrams in section
