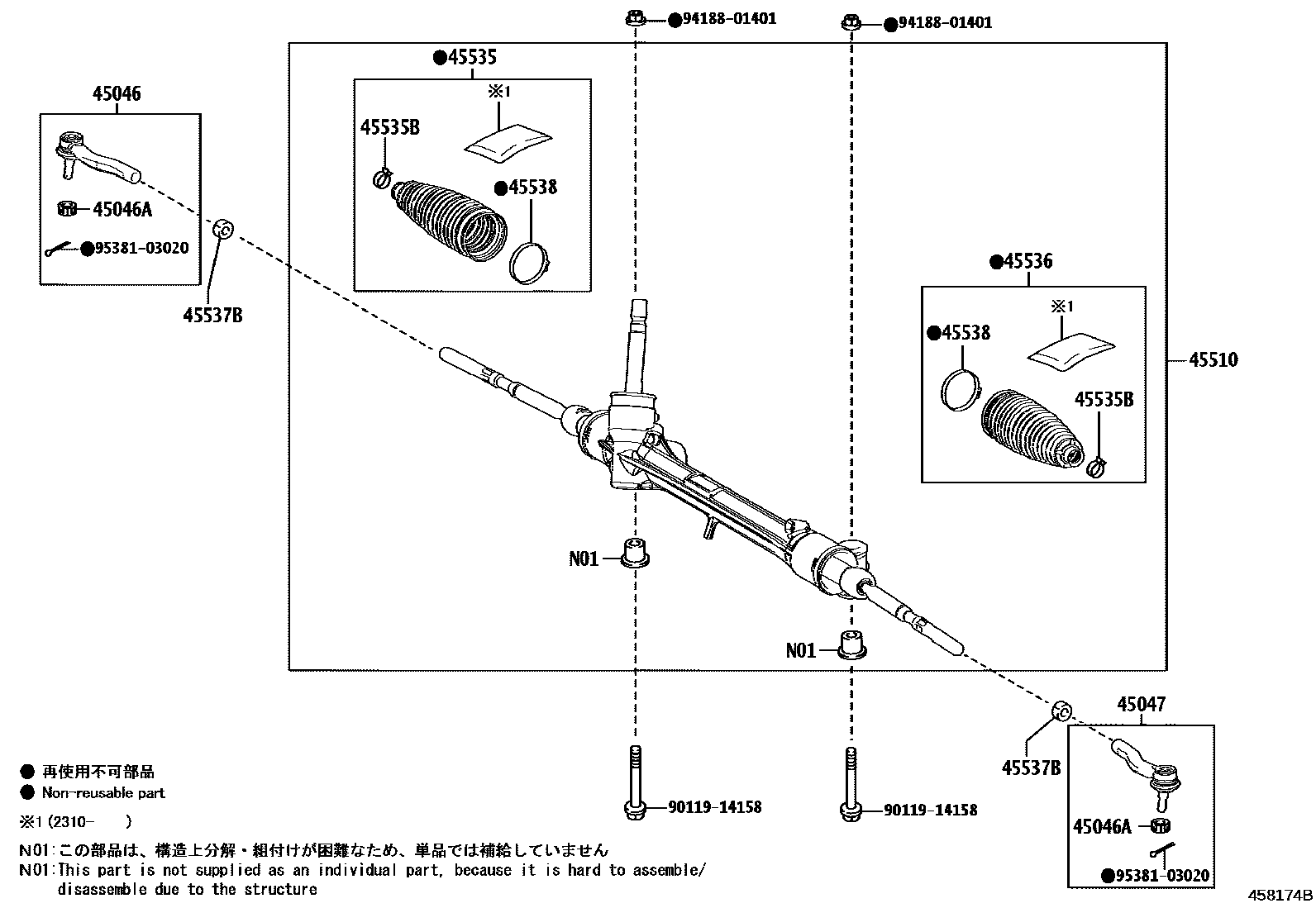

Toyota COROLLA CROSS — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49255iMXGA10,ZVG1#¥2,690202108-202310

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMXGA10,ZVG1#¥130202108-202310

45047END SUB-ASSY, TIE ROD, LH

main45047-49195iMXGA10,ZVG1#¥2,690202108-202310

45510GEAR ASSY, STEERING

main45510-10240iZSG10,ZVG1#¥32,900202108-202310

main45510-16140iMXGA10,ZVG1#¥29,800202310

45535BOOT, STEERING RACK, NO.1

main45535-19035iMXGA10,ZVG1#¥1,040202310

main45535-59075iZSG10,ZVG1#¥790202108-202310

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42020iMXGA10,ZVG1#¥200202310

main90467-19019iZSG10,ZVG1#¥320202108-202310

45536BOOT, STEERING RACK, NO.2

main45535-19035iMXGA10,ZVG1#¥1,040202310

main45535-59075iZSG10,ZVG1#¥790202108-202310

45537BNUT, RACK END LOCK

main90178-16001iMXGA10,ZVG1#¥120202108-202310

45538RETAINER, STEERING RACK BOOT

main45538-42010iMXGA10,ZVG1#¥220202310

main45538-48020iZSG10,ZVG1#¥240202108-202310

9011914158

main90119-14158¥430

9418801401

main94188-01401¥190

9538103020

main95381-03020¥90

12 parts on this diagram · 1 diagram in section
