Toyota COROLLA CROSS — FRONT DOOR WINDOW REGULATOR & HINGE

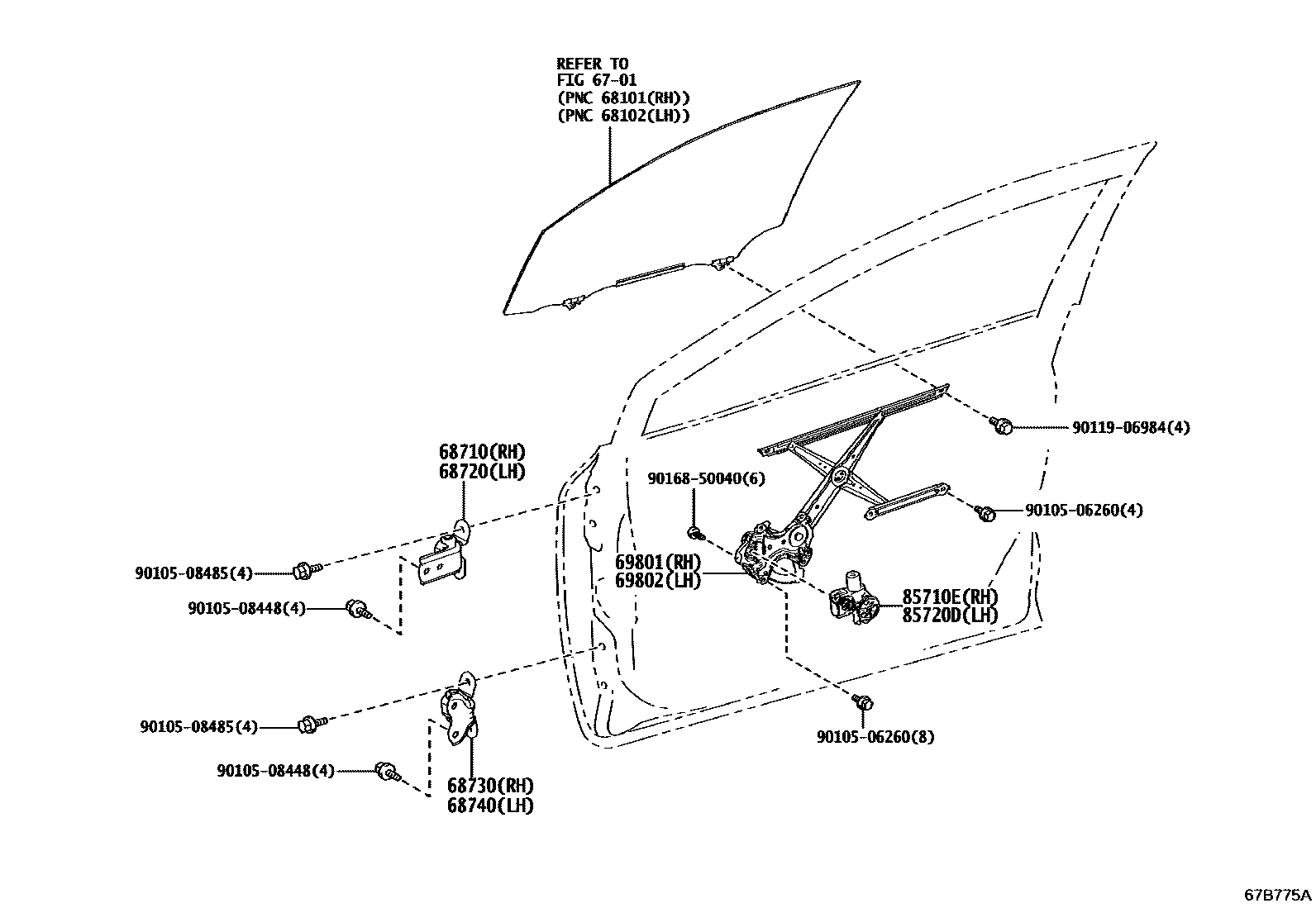

Parts diagram

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i¥2,050202108-202310

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i¥2,050202108-202310

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i¥2,240202108-202310

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i¥2,240202108-202310

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52140i¥3,940202108-202310

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52130i¥3,940202108-202310

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-16210i¥12,500202310

main85710-30610i¥20,900202108-202310

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-16190i¥12,500202310

main85720-30550i¥20,900202108-202310

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

14 parts on this diagram · 1 diagram in section
