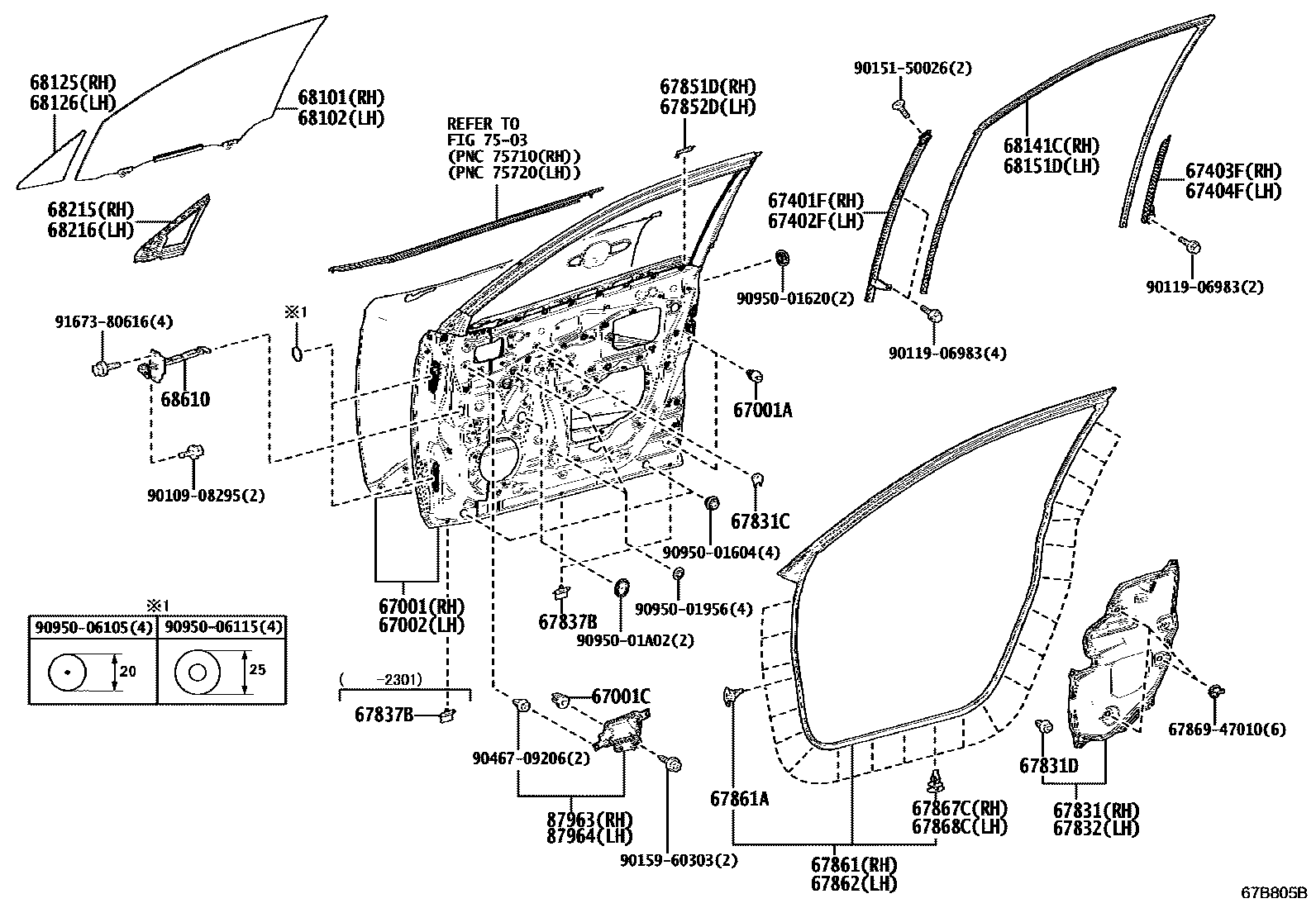

Toyota COROLLA CROSS — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67001CGROMMET(FOR FRONT DOOR PANEL)
67002PANEL SUB-ASSY, FRONT DOOR, LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831CCOVER, FRONT DOOR SERVICE HOLE
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
67851DSEAL, FRONT DOOR REAR OUTSIDE, RH
67852DSEAL, FRONT DOOR REAR OUTSIDE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68610CHECK ASSY, FRONT DOOR
7503
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
9010908295
9011906983
9015150026
9015960303
9046709206
9095001604
9095001620
9095001956
9095001A02
9095006105
9095006115
9167380616
45 parts on this diagram · 2 diagrams in section
