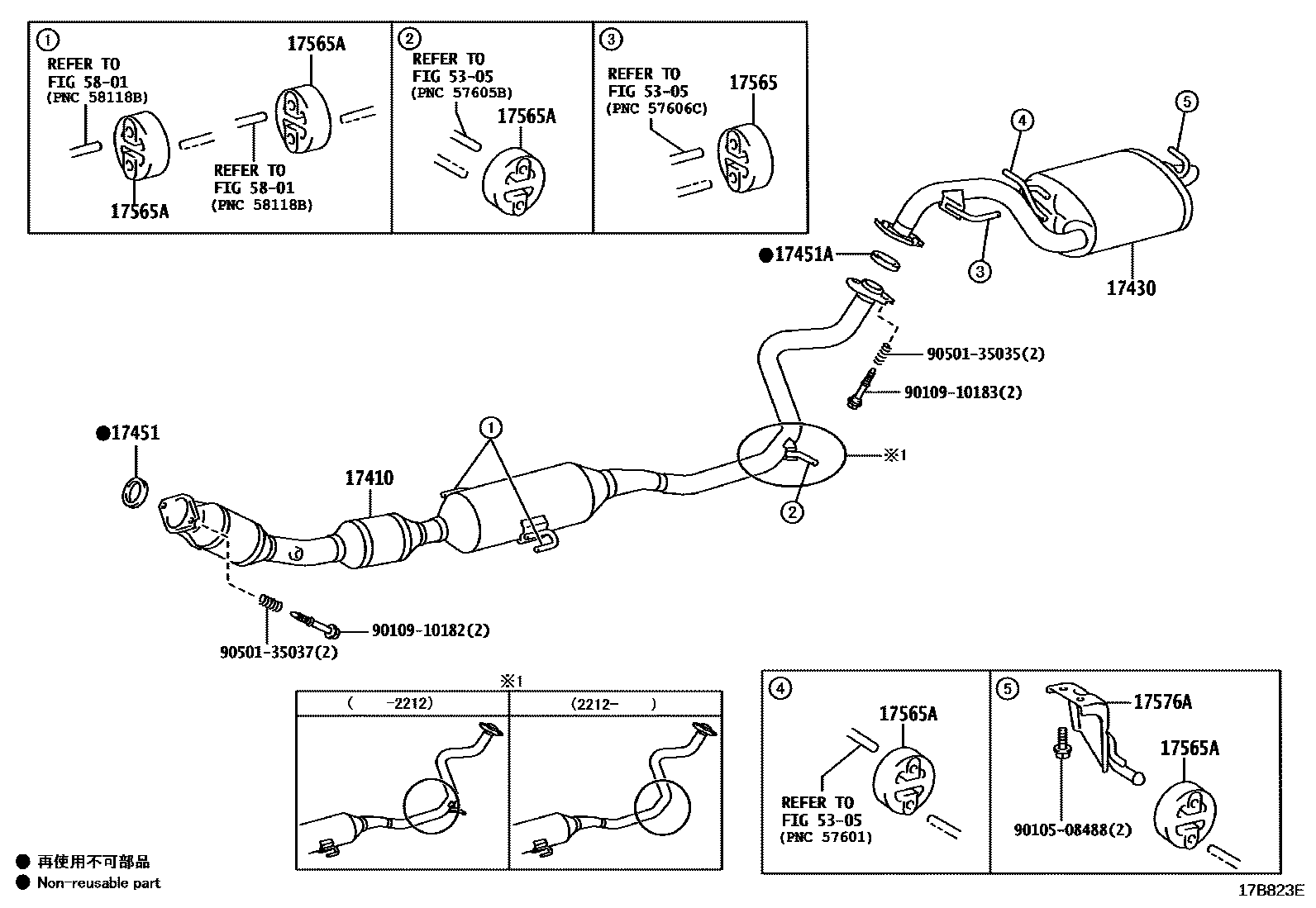

Toyota COROLLA CROSS — EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-37B31i2ZRFXE..ZVG15¥76,600202108-202310

main17410-37D60i2ZRFAE..ZSG10¥94,400202108-202212

main17410-37D70i2ZRFXE..ZVG11¥76,600202108-202310

main17410-37F00i2ZRFAE..ZSG10¥94,400202212-202310

main17410-37F30iM20AFKS..MXGA10¥56,600202310

main17410-37F40i2ZRFXE..ZVG13¥69,600202310

main17410-37F50i2ZRFXE..ZVG16¥76,600202310-202403

sub17410-37G00¥69,600

main17410-37G00i2ZRFXE..ZVG16¥69,600202404

17430PIPE ASSY, EXHAUST, TAIL

main17430-24510iM20AFKS..MXGA10¥21,100202310

main17430-37B80i2ZRFAE..ZSG10¥23,300202108-202310

main17430-37B90i2ZRFXE..ZVG11¥21,100202108-202310

main17430-37C00i2ZRFXE..ZVG15¥27,000202108-202310

17451GASKET, EXHAUST PIPE

main17451-24010i2ZRFXE..ZVG1#¥1,360202108-202310

main17451-28040i2ZRFAE..ZSG10¥1,510202108-202311

sub17451-28041¥1,510

main17451-28041iM20AFKS..MXGA10¥1,510202311

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042iM20AFKS..MXGA10¥790202108-202311

sub17451-23043¥720

main17451-23043iM20AFKS..MXGA10¥720202311

main17451-24020i2ZRFXE..ZVG1#¥720202108-202310

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010i2ZR#..ZSG10,ZVG1#¥670202108-202310

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i2ZRFXE..ZVG1#¥670202108-202310

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17575-37030i2ZRFXE..ZVG16¥590202108-202310

main17576-37010iM20AFKS,2ZRFXE..MXGA10,ZVG13¥870202108-202310

5305

5801

9010508488

main90105-08488¥80

9010910182

main90109-10182¥190

9010910183

main90109-10183¥190

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

14 parts on this diagram · 4 diagrams in section
