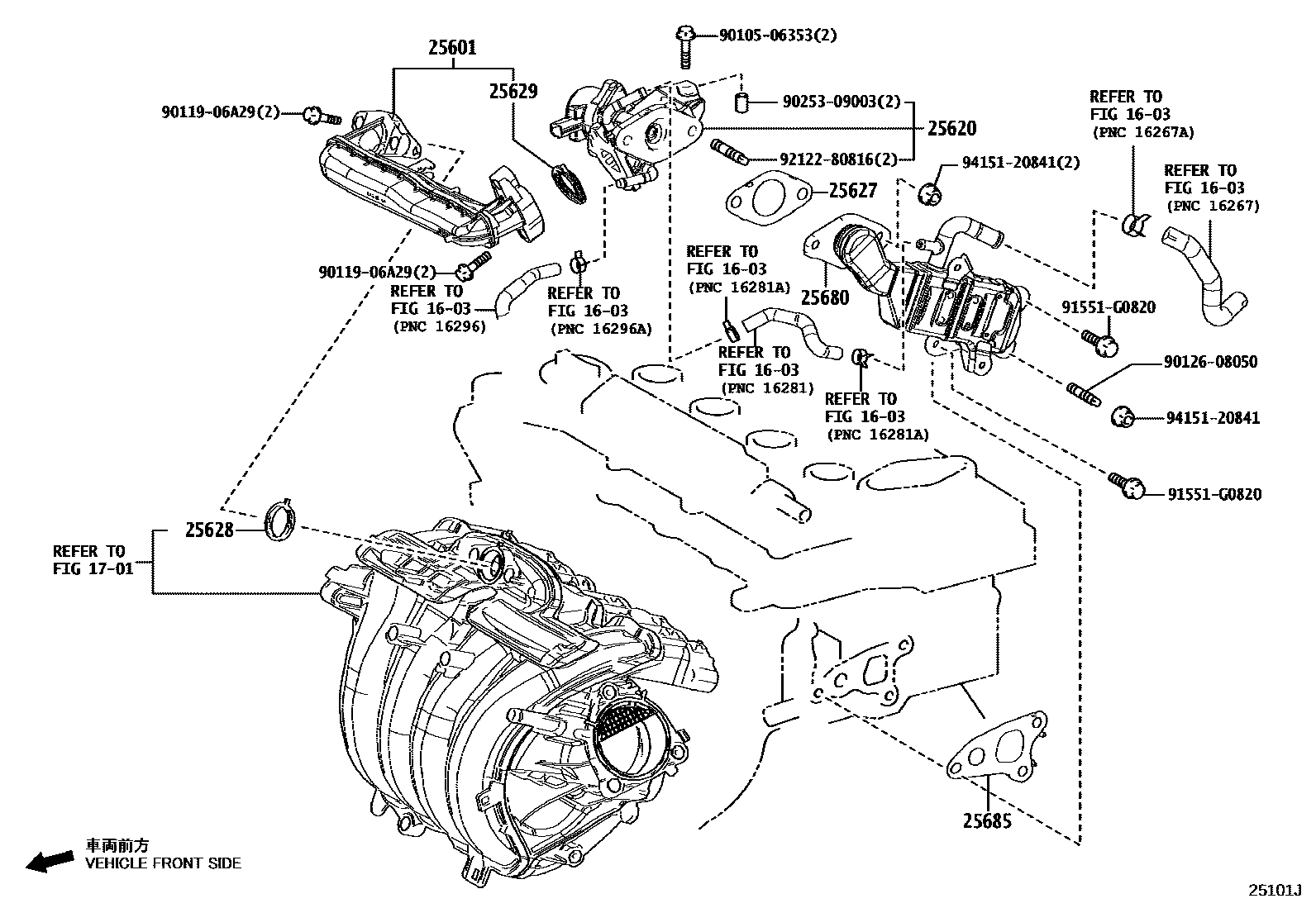

Toyota COROLLA CROSS — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030iM20AFKS..MXGA10¥3,140202310

25620VALVE ASSY, EGR

main25620-24050iM20AFKS..MXGA10¥18,400202310

main25620-37140i2ZRFXE..ZVG1#¥18,400202108-202310

25627GASKET, EGR VALVE

main25627-24010iM20AFKS..MXGA10¥270202310

main25627-37020i2ZRFXE..ZVG1#¥270202108-202310

25628GASKET, EGR INLET

main25628-25010iM20AFKS..MXGA10¥340202310

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20AFKS..MXGA10¥340202310

25680COOLER ASSY, EGR

main25680-24010iM20AFKS..MXGA10¥16,700202310

25685GASKET, EGR COOLER, NO.1

main25685-25011iM20AFKS..MXGA10¥270202310

main25685-37020i2ZRFXE..ZVG1#¥210202108-202310

9010506353

main90105-06353¥60

9011906A29

main90119-06A29¥60

9012608050

main90126-08050¥80

9025309003

main90253-09003¥50

91551G0820

main91551-G0820¥80

9212280816

main92122-80816¥70

9415120841

main94151-20841¥80

16 parts on this diagram · 3 diagrams in section
