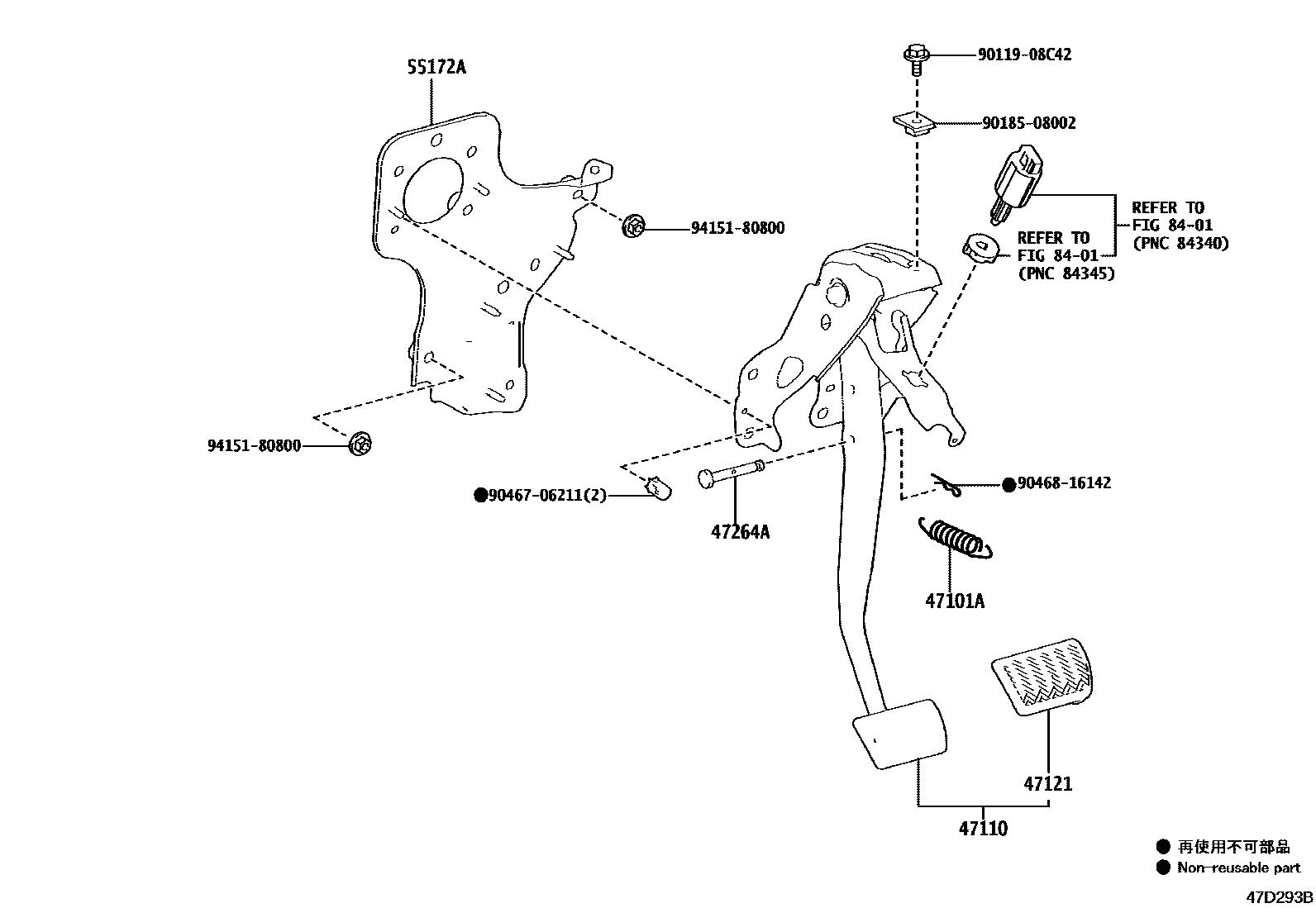

Toyota COROLLA CROSS — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iZSG10¥180202108-202310

main90507-16030iZVG1#¥180202108-202310

47110SUPPORT ASSY, BRAKE PEDAL

main47110-10040iZSG10¥10,200202108-202310

main47110-10050iZVG1#¥6,800202108-202310

main47110-16180iZVG1#¥6,800202310

47121PAD, BRAKE PEDAL

main47121-16020iZVG1#¥400202310

main47121-47010iMXGA10¥400202108-202310

47264APIN(FOR PUSH ROD)

main90249-08221iMXGA10,ZVG1#¥220202108-202310

55172ABASE, BRAKE PEDAL SUPPORT

main55172-10040iMXGA10,ZVG1#¥3,620202108-202310

8401

9011908C42

main90119-08C42¥80

9018508002

main90185-08002¥200

9046706211

main90467-06211¥80

9046816142

main90468-16142¥70

9415180800

main94151-80800¥80

11 parts on this diagram · 2 diagrams in section
