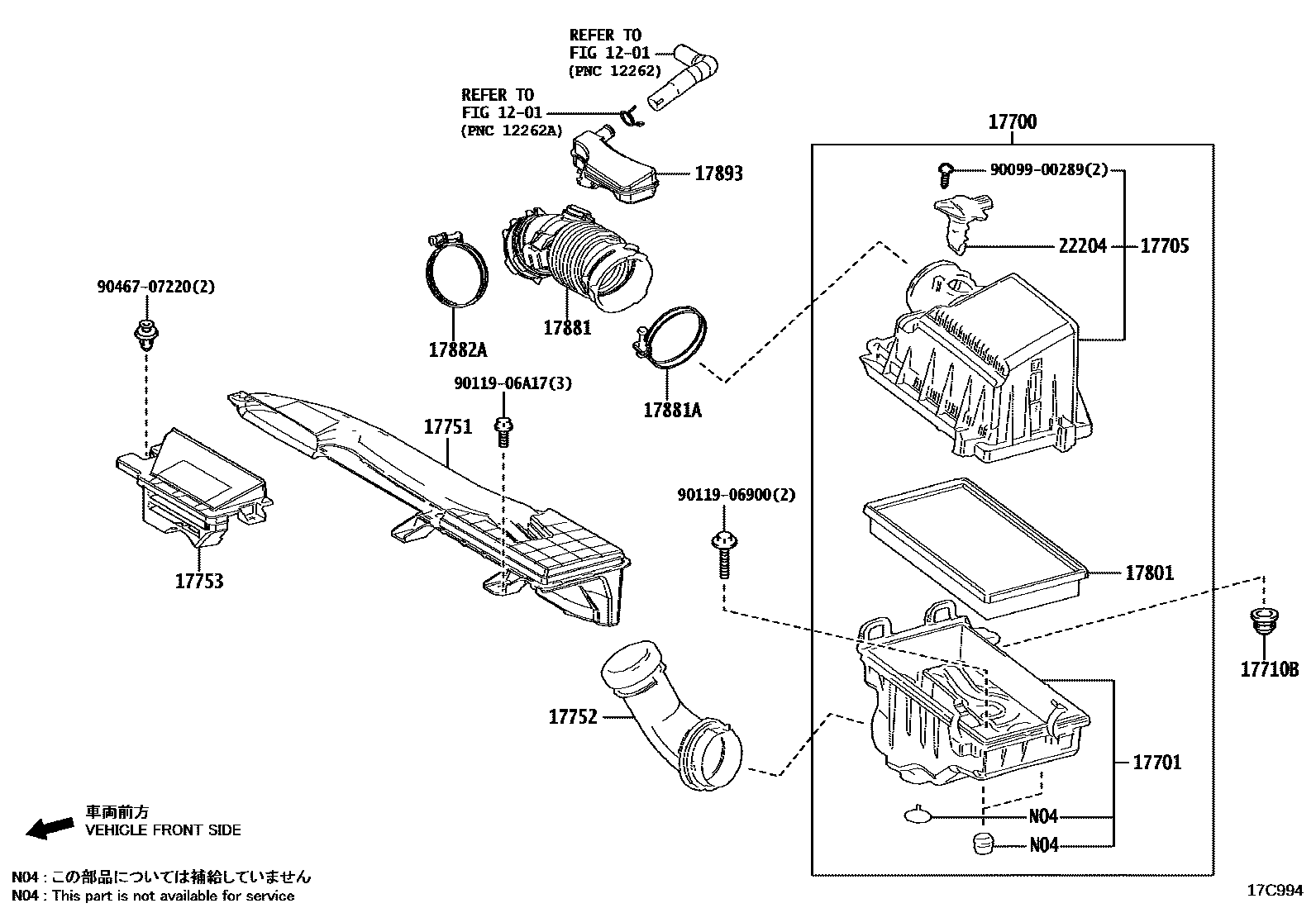

Toyota COROLLA CROSS — AIR CLEANER
1201
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17753INLET, AIR CLEANER, NO.3
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
22204METER SUB-ASSY, INTAKE AIR FLOW
9009900289
9011906900
9011906A17
9046707220
18 parts on this diagram · 4 diagrams in section
