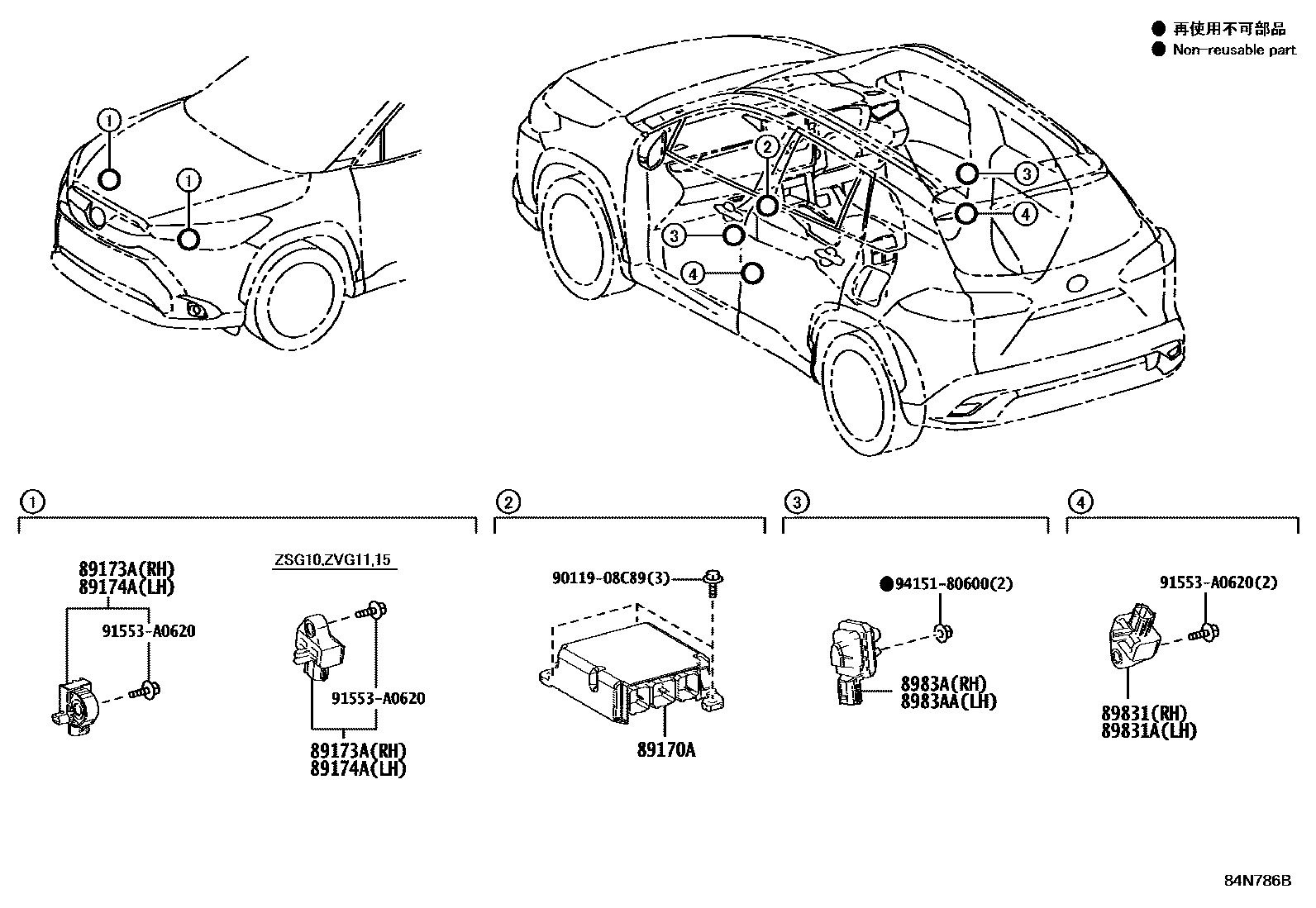

Toyota COROLLA CROSS — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-16160iZSG10¥37,300202108-202310

main89170-16170iZVG1#¥37,300202108-202310

main89170-16240iMXGA10,ZVG1#¥25,400202310

89173ASENSOR, AIRBAG, FRONT RH

main89173-49505iZSG10,ZVG1#¥4,110202108-202310

main89173-59415iMXGA10,ZVG1#¥4,110202310

89174ASENSOR, AIRBAG, FRONT LH

main89173-49505iZSG10,ZVG1#¥4,110202108-202310

main89173-59415iMXGA10,ZVG1#¥4,110202310

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-42060iZSG10,ZVG1#¥4,110202108-202310

main89831-47050iMXGA10,ZVG1#¥8,200202310

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-42060iZSG10,ZVG1#¥4,110202108-202310

main89831-47050iMXGA10,ZVG1#¥8,200202310

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iMXGA10,ZVG1#¥4,110202310

main8983A-52011iZSG10,ZVG1#¥4,110202108-202310

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iMXGA10,ZVG1#¥4,110202310

main8983A-52011iZSG10,ZVG1#¥4,110202108-202310

9011908C89

main90119-08C89¥80

91553A0620

main91553-A0620¥60

9415180600

main94151-80600¥60

10 parts on this diagram · 1 diagram in section
