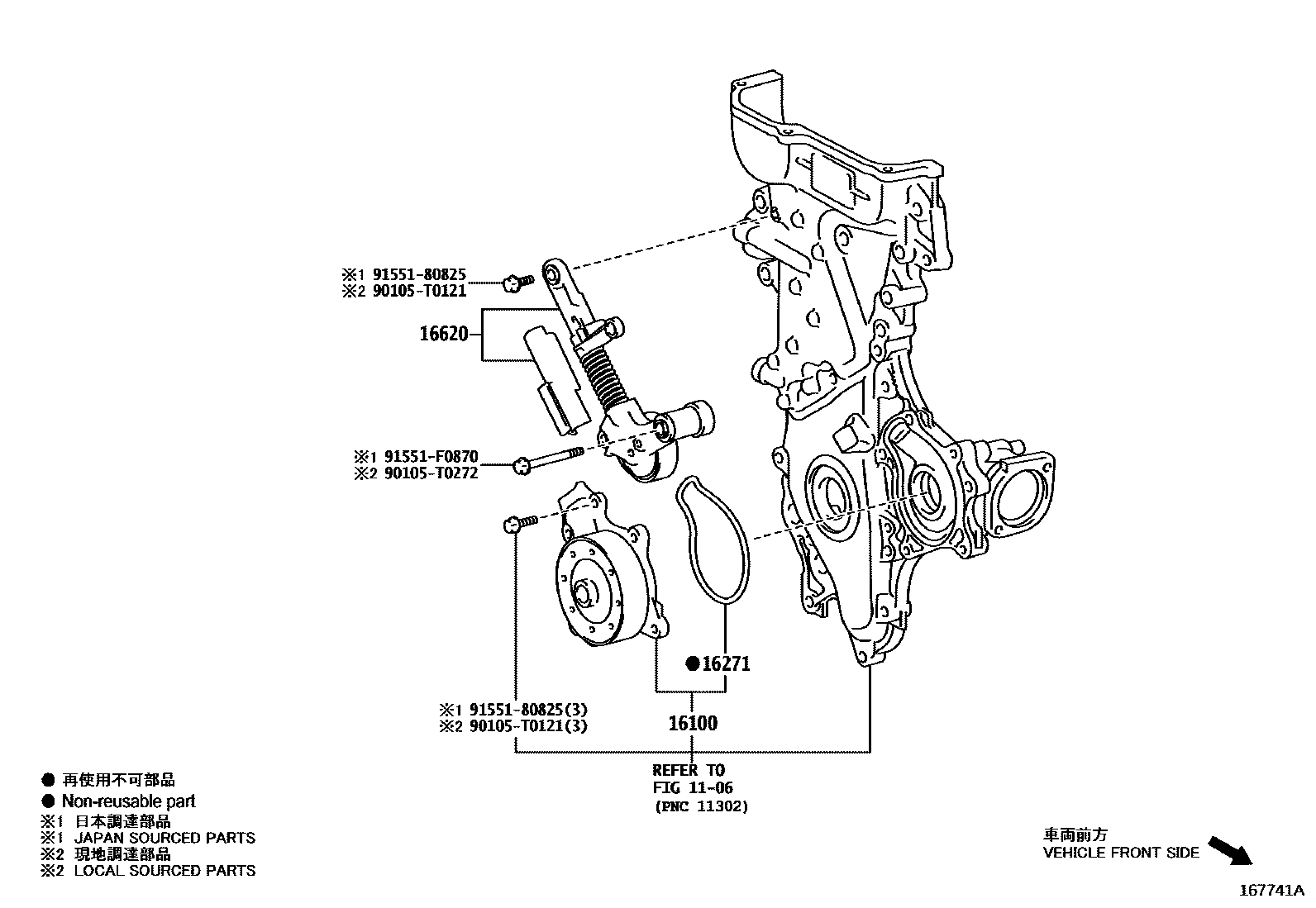

Toyota COROLLA CROSS — WATER PUMP

0001 1 0002 1 0003 1 0004 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09670i2ZRFE..ZSG10..SAP202110-202411

(L)

main16100-09740i2ZRFE..ZSG10..TWP..G;2ZRFBE,2ZRFE..ZSG10..RHD..THP;2ZRFE..ZSG10..(E,M,N)..(MA,TAIW,VN);2ZRFE..ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)202007-202411

(L)

main16100-39565i2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)¥10,500202007-202411

(J)

main161A0-39035i2ZRFXE..ZVG10..BZP¥15,000202007-202411

16271GASKET, WATER PUMP

main16271-37020i2ZRFXE..ZVG10..BZP¥470202007-202412

main16271-37030i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)¥520202007-202512

16620TENSIONER ASSY, V-RIBBED BELT

main16620-37030i2ZRFE..ZSG10..IDN¥10,100202007-202512

main16620-37040i2ZRFE..ZSG10..J..GCC;2ZRFE..ZSG10..(G,N)..SA;2ZRFE..ZSG10..LHD..SAP..N;2ZRFE..ZSG10..E..(GEN,SA);2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE..ZSG10..LHD..(SAP,TWP)..G..(GCC¥10,100202007-202411

90105T0121

main90105-T0121

90105T0272

main90105-T0272

9155180825

main91551-80825¥80

91551F0870

main91551-F0870¥100

8 parts on this diagram · 4 diagrams in section
