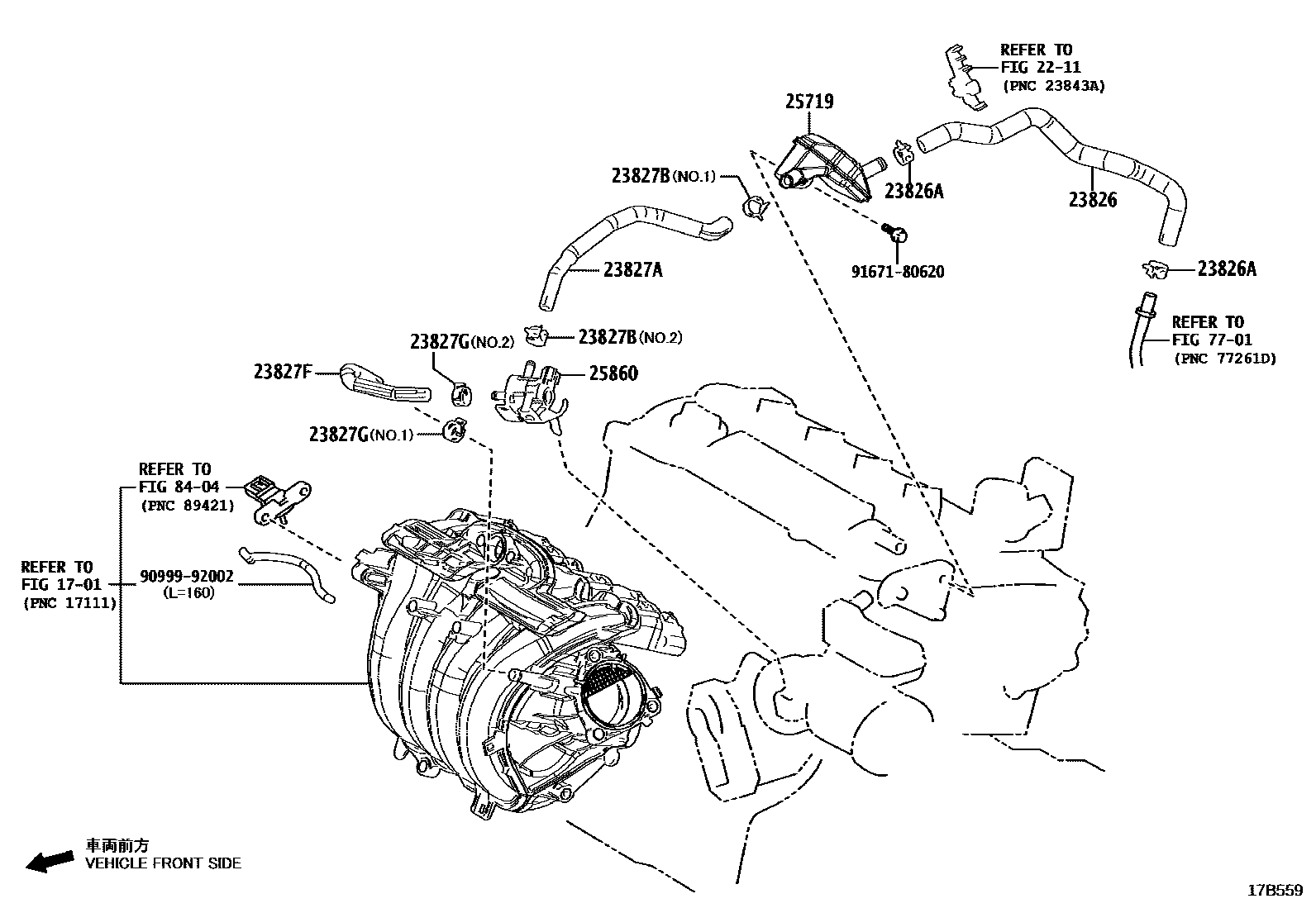

Toyota COROLLA CROSS — VACUUM PIPING
1701
2211
23826HOSE, FUEL VAPOR FEED, NO.1
(L)
NO.2
NO.2
NO.2
NO.2
NO.2
NO.2
(L),NO.1
(L),NO.1
NO.2
NO.1
(J)
main23826-37250i2ZRFXE..ZVG10..E..PH;2ZRFXE..ZVG10..(MAP,THP,TWP)..(GCC,GEN,IDN,MA,TAIW,TH,VN)¥1,300202007-202411
(J),NO.1
PARAGUAY SPEC,NO.1
NO.1
main23826-37331i2ZRFE..ZSG10..TWP..G;2ZRFBE,2ZRFE..ZSG10..RHD..THP;2ZRFE..ZSG10..(E,M,N)..(MA,TAIW,VN);2ZRFE..ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)202012-202411
NO.1
NO.1
(J)
(J),NO.1
PARAGUAY SPEC,NO.1
NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
PARAGUAY SPEC&ENGINE-M20A-FKB
(L)
(L)
(L)
(J)
(J)
PARAGUAY SPEC
PARAGUAY SPEC
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
PARAGUAY SPEC&ENGINE-M20A-FKB,NO.1 & NO.2:REF ILL.
NO.1 & NO.2:REF ILL.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
23827FHOSE, FUEL VAPOR FEED, NO.3
PARAGUAY SPEC&ENGINE-M20A-FKB
23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
NO.1 & NO.2:REF ILL.
PARAGUAY SPEC&ENGINE-M20A-FKB,NO.1 & NO.2:REF ILL.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
25719TANK, VACUUM SURGE
25860VALVE ASSY, VACUUM SWITCHING, NO.1
PARAGUAY SPEC&ENGINE-M20A-FKB
7701
8404
9099992002
9167180620
14 parts on this diagram · 7 diagrams in section
