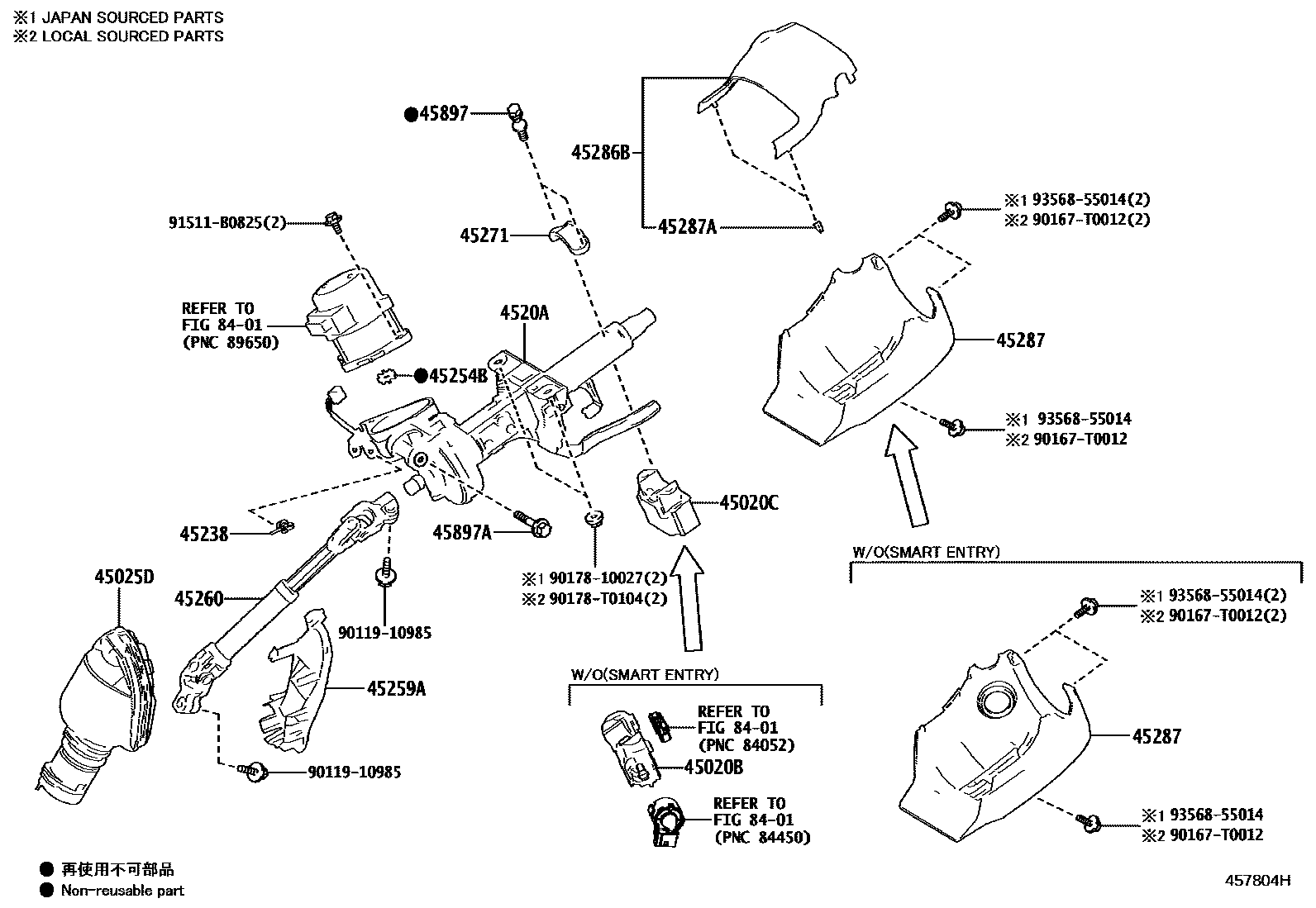

Toyota COROLLA CROSS — STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-02420iZSG10..N..SA;ZSG10..J..GEN202110-202411

WIRELESS DOOR LOCK-WITH & WITHOUT(PANIC BUTTON)

main45280-02560iZSG10..J..TAIW202010-202205

main45280-02560iZSG10..J..GCC202010-202410

main45280-02560iZSG10..J..GCC202410

main45280-12420iMXGA10..E..GEN202201-202403

UP GRADE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45280-12420iMXGA10..E..GEN202201-202403

GR SPORT&WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45280-12420iMXGA10..(E,G)..GEN202501

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45280-12420iMXGA10..G,N;MXGA10..E..GEN202404-202412

main45280-12420iMXGA10..G,N;MXGA10..E..(AGT,GEN)202103-202112

main45280-12420iMXGA10..G,N;MXGA10..E..(AGT,GEN)202201-202403

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45280-12420iZSG10..J..TAIW202205-202410

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-02790iZSG10,ZVG10..(E,G)..SA;ZSG10..SAP..(E,G,N)..GEN202110-202411

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&WITHOUT(PANIC BUTTON)

main45020-02830iZSG10,ZVG10..THP..(GEN,IDN,PH,TH,VN)202007-202212

main45020-02830iZSG10..MAP..G202007-202411

main45020-02830iZSG10,ZVG10..MAP..E202007-202410

main45020-02830iZSG10,ZVG10..MA202007-202111

main45020-12550iZVG10..BZP..GEN¥14,900202010-202112

main45020-12550iZVG10..AGT,BZ;MXGA10..E..BZ¥14,900202010-202107

main45020-12550iZSG10,ZVG10..TWP..(E,G,L,M,N)¥14,900202010-202205

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0A010iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202402

main45025-0A010iZSG10..LHD..SAP202007-202411

main45025-0A010iZSG10..VN;ZVG10..LHD..THP;ZSG10..LHD..E..GEN;ZSG10..LHD..SAP..(G,N)202401

main45025-0A020iZSG10,ZVG10..TWP202410

main45025-0A020iZSG10,ZVG10..TWP202010-202410

main45025-0A030iMXGA10,ZVG10..BZP202103-202112

main45025-0A030iMXGA10,ZVG10..BZP202201-202403

main45025-0A030iMXGA10,ZVG10..BZP202501

main45025-0A030iMXGA10,ZVG10..BZP202404-202412

main45025-F4030iZSG10,ZVG10..MA202007-202111

main45025-F4030iZSG10..IDN202007-202212

main45025-F4030iZSG10..MAP..G;ZSG10,ZVG10..RHD..SAP202007-202411

main45025-F4030iZSG10..RHD..E;ZSG10..(G,N)..SA;ZVG10..RHD..(E,G,R);ZSG10..RHD..THP..(G,N)..GEN202401

main45025-F4030iZSG10,ZVG10..MAP..E202007-202410

main45025-F4030iZVG10..RHD..(GEN,IDN,TH);ZSG10..RHD..THP..(GEN,TH)202007-202402

main45025-F4030iZSG10..TH202401-202512

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-02390iZSG10..LHD..SAP..N202110-202411

WIRELESS DOOR LOCK-WITH & WITHOUT(PANIC BUTTON)

main4520A-02400iZSG10..LHD..SAP202411

main4520A-02400iZSG10..LHD..SAP..(G,N)202110-202411

main4520A-0A010iZVG10..RHD..(GEN,IDN,TH);ZSG10..RHD..THP..(GEN,TH)202007-202402

main4520A-0A010iZSG10..IDN202007-202212

main4520A-0A010iZSG10..TH202401-202512

main4520A-0A010iZSG10..E..MA;ZSG10..RHD..THP..GEN;ZVG10..RHD..(MAP,THP)..(E,G,R)202401

main4520A-0A010iZSG10,ZVG10..MA202007-202111

main4520A-0A010iZSG10..MAP..G202007-202411

main4520A-0A010iZSG10,ZVG10..MAP..E202007-202410

main4520A-0A020iZSG10..VN;ZVG10..LHD..THP;ZSG10..LHD..E..GEN202401

main4520A-0A020iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202402

main4520A-0A030iZSG10..TWP..J202010-202410

main4520A-0A030iZSG10..J..GCC202410

main4520A-0A040iZSG10,ZVG10..TWP..(E,G,L,M,N)202010-202410

main4520A-0A040iZSG10,ZVG10..TWP..(E,G,L,M,N)202410

main4520A-0A060iZVG10..BZP..GEN202103-202112

sub4520A-0A061

main4520A-0A060iMXGA10..E..(AGT,GEN)202103-202107

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

sub4520A-0A061

main4520A-0A110iZSG10..N..SA;ZSG10..RHD..J202110-202411

main4520A-0A120iZSG10,ZVG10..(E,G)..SA;ZSG10..RHD..SAP..(E,G,N)..GEN202110-202411

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&WITHOUT(PANIC BUTTON)

main4520A-0A120iZSG10,ZVG10..RHD..SAP202411

main4520A-0A140iZVG10..AGT,BZ;MXGA10..E..BZ202107-202112

STARTING SYSTEM-PUSH START SWITCH & W/O(STEERING LOCK)

sub4520A-0A141

main4520A-0A140iMXGA10,ZVG10..BZP202404-202412

sub4520A-0A141

main4520A-0A140iMXGA10,ZVG10..BZP202201-202403

sub4520A-0A141

main4520A-0A140iMXGA10..G,N;MXGA10..E..(AGT,GEN)202103-202112

sub4520A-0A141

main4520A-0A141iMXGA10,ZVG10..BZP202501

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iZSG10..MAP..G;ZSG10,ZVG10..SAP¥70202007-202411

main45238-52010iMXGA10,ZVG10..BZP¥70202501

main45238-52010iZSG10,ZVG10..MA¥70202007-202111

main45238-52010iMXGA10,ZVG10..BZP¥70202007-202112

main45238-52010iZSG10,ZVG10..THP..(GEN,IDN,PH,TH,VN)¥70202007-202212

main45238-52010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥70202007-202410

main45238-52010iMXGA10,ZVG10..BZP¥70202201-202403

main45238-52010iMXGA10,ZVG10..BZP¥70202401-202412

main45238-52010iZSG10..LHD..SAP..(G,N);ZSG10..(SAP,TWP)..(E,M);ZSG10..(E,G,J)..(GCC,VN);ZVG10..GCC,PH,SA,TAIW,VN;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10,ZVG10..LHD..THP..E..GEN¥70202401

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMXGA10,ZVG10..BZP¥220202401-202412

main45254-28040iZSG10..MAP..G;ZSG10,ZVG10..SAP¥220202007-202411

main45254-28040iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥220202007-202410

main45254-28040iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥220202007-202402

main45254-28040iZSG10..IDN¥220202007-202212

main45254-28040iMXGA10,ZVG10..BZP¥220202007-202112

main45254-28040iZSG10,ZVG10..MA¥220202007-202111

main45254-28040iMXGA10,ZVG10..BZP¥220202501

main45254-28040iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥220202401

main45254-28040iZSG10..TH¥220202401-202512

main45254-28040iMXGA10,ZVG10..BZP¥220202201-202403

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0A010iZSG10..VN;ZVG10..LHD..THP;ZSG10..LHD..E..GEN;ZSG10..LHD..SAP..(G,N)202401

main45259-0A010iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202402

main45259-0A010iZSG10..LHD..SAP202007-202411

main45259-0A020iZSG10,ZVG10..TWP202010-202410

main45259-0A020iZSG10,ZVG10..TWP202410

main45259-0A030iMXGA10,ZVG10..BZP202501

main45259-0A030iMXGA10,ZVG10..BZP202404-202412

main45259-0A030iMXGA10,ZVG10..BZP202103-202112

main45259-0A030iMXGA10,ZVG10..BZP202201-202403

main45259-0A050iZSG10,ZVG10..MAP..E202007-202410

main45259-0A050iZSG10..MAP..G;ZSG10,ZVG10..RHD..SAP202007-202411

main45259-0A050iZSG10..TH202401-202512

main45259-0A050iZSG10..RHD..E;ZSG10..(G,N)..SA;ZVG10..RHD..(E,G,R);ZSG10..RHD..THP..(G,N)..GEN202401

main45259-0A050iZVG10..RHD..(GEN,IDN,TH);ZSG10..RHD..THP..(GEN,TH)202007-202402

main45259-0A050iZSG10..IDN202007-202212

main45259-0A050iZSG10,ZVG10..MA202007-202111

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0A010iZSG10..LHD..SAP202007-202411

main45260-0A010iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202402

main45260-0A010iZSG10..VN;ZVG10..LHD..THP;ZSG10..LHD..E..GEN;ZSG10..LHD..SAP..(G,N)202401

main45260-0A020iZSG10,ZVG10..TWP202410

main45260-0A020iZSG10,ZVG10..TWP202010-202410

main45260-0A030iMXGA10,ZVG10..BZP202501

main45260-0A030iMXGA10,ZVG10..BZP202404-202412

main45260-0A030iMXGA10,ZVG10..BZP202103-202112

main45260-0A030iMXGA10,ZVG10..BZP202201-202403

main45260-0A070iZSG10,ZVG10..MA202411

main45260-0A070iZSG10,ZVG10..E..MA202112-202410

main45260-0A070iZSG10..G..MA202112-202411

main45260-F4030iZSG10,ZVG10..RHD..SAP202007-202411

main45260-F4030iZSG10..TH202401-202512

main45260-F4030iZVG10..RHD..(GEN,IDN,TH);ZSG10..RHD..THP..(GEN,TH)202007-202402

main45260-F4030iZSG10..(G,N)..SA;ZSG10..RHD..E..(GEN,SA);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..RHD..(SAP,THP)..(E,G)202401

main45260-F4030iZSG10..IDN202007-202212

main45260-F4030iZSG10,ZVG10..MA202007-202111

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMXGA10..G,N;MXGA10..E..(AGT,GEN)¥440202201-202403

GR SPORT&WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45271-52030iMXGA10..G,N;MXGA10..E..GEN¥440202501

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45271-52030iZVG10..AGT,BZ;MXGA10..E..BZ¥440202007-202107

main45271-52030iZSG10,ZVG10..MA¥440202007-202111

main45271-52030iMXGA10..G,N;ZVG10..BZP..GEN;MXGA10..E..(AGT,GEN)¥440202007-202112

main45271-52030iZSG10,ZVG10..TWP..(E,G,L,M,N)¥440202007-202205

main45271-52030iZSG10,ZVG10..THP..(GEN,IDN,PH,TH,VN)¥440202007-202212

main45271-52030iZVG10..MAP;ZSG10..(MAP,TWP)..(E,J)¥440202007-202410

main45271-52030iZSG10..MAP..G;ZSG10,ZVG10..SAP¥440202007-202411

main45271-52030iMXGA10..G,N;MXGA10..E..(AGT,GEN)¥440202201-202403

UP GRADE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45271-52030iMXGA10..G,N;MXGA10..E..(AGT,GEN)¥440202201-202403

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45271-52030iMXGA10..G,N;MXGA10..E..GEN¥440202404-202412

main45271-52030iZSG10..J..GCC¥440202404

45286BCOVER, STEERING COLUMN, UPR

main45286-02640-C0iZSG10..LHD..SAP..N202110-202411

WIRELESS DOOR LOCK-WITH & WITHOUT(PANIC BUTTON),BLACK,TRIM2#

main45286-02640-C0iZSG10..LHD..SAP..N202110-202411

BLACK,TRIM2#

main45286-02650-C0iZSG10..SAP..N..GEN202110-202411

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&WITHOUT(PANIC BUTTON),BLACK,TRIM2#

main45286-02650-C0iZSG10..N..SA202110-202411

BLACK,TRIM2#

main45286-02650-C0iZSG10,ZVG10..MA202007-202111

BLACK,TRIM2#,3#

main45286-02650-C0iZSG10,ZVG10..MAP..E202007-202410

BLACK,TRIM2#,3#

main45286-02650-C0iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

BLACK,TRIM2#,3#

main45286-02650-C0iZSG10..IDN202007-202212

BLACK,TRIM2#,3#

main45286-02650-C0iZSG10..MAP..G;ZSG10,ZVG10..SAP..(E,G)202007-202411

BLACK,TRIM2#,3#

main45286-02650-C0iZSG10..N..SA;ZSG10..RHD..THP..N;ZSG10..LHD..SAP..N;ZVG10..(G,R)..(MA,PH)202401

BLACK,TRIM2#

main45286-02650-C0iZSG10..VN;ZSG10..G..SA;ZVG10..E..PH;ZSG10..LHD..SAP..G;ZSG10..LHD..E..GEN;ZSG10..(MAP,SAP)..E;ZSG10..RHD..THP..(E,G);ZVG10..(MAP,SAP,THP)..(E,G)..(GEN,IDN,MA,SA,TH,202401

BLACK,TRIM2#,3#

main45286-02660-C0iZSG10..TWP..J202010-202410

BLACK,TRIM2#,3#

main45286-02660-C0iZSG10..J..GCC202410

BLACK,TRIM2#,3#

main45286-02670-C0iZSG10,ZVG10..TWP..(E,G,N)202410

BLACK,TRIM2#,3#

main45286-02670-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM2#,3#

main45286-02670-C0iZSG10,ZVG10..TWP..(E,G,N)202410

BLACK,TRIM2#

main45286-02670-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main45286-02670-C0iZSG10..N..GCC;ZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(G,N)..TAIW202010-202410

BLACK,TRIM0#,2#,3#

main45286-02710-C0iMXGA10..G,N202404-202412

BLACK,TRIM0#,2#

main45286-02710-C0iMXGA10..E..GEN202103-202112

BLACK,TRIM0#,2#

main45286-02710-C0iMXGA10..E..GEN202103-202112

BLACK,TRIM2#

main45286-02710-C0iMXGA10..E..GEN202201-202403

BLACK,TRIM2#

main45286-02710-C0iMXGA10..E..GEN202201-202403

BLACK,TRIM0#,2#

main45286-02710-C0iMXGA10..G,N202404-202412

BLACK,TRIM2#

main45286-02710-C0iMXGA10..E..GEN202501

BLACK,TRIM0#,2#

main45286-02710-C0iMXGA10..G,N202501

BLACK,TRIM2#

main45286-02720-C0iZVG10..G..AGT202103-202112

BLACK,TRIM0#,2#

main45286-02720-C0iZVG10..G..AGT202501

BLACK,TRIM2#

main45286-02720-C0iZVG10..G..AGT202501

BLACK,TRIM0#,2#

main45286-02720-C0iZVG10..G..AGT202501

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM0#,2#

main45286-02720-C0iZVG10..G..AGT202501

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM2#

main45286-02720-C0iZVG10..G..AGT202103-202112

BLACK,TRIM2#

main45286-02720-C0iZVG10..G..AGT202103-202112

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM0#,2#

main45286-02720-C0iZVG10..G..AGT202201-202403

BLACK,TRIM2#

main45286-02720-C0iZVG10..G..AGT202201-202403

BLACK,TRIM0#,2#

main45286-02720-C0iZVG10..G..AGT202201-202403

UP GRADE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM0#,2#

main45286-02720-C0iZVG10..G..AGT202201-202403

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM0#,2#

main45286-02720-C0iZVG10..G..AGT202404-202412

BLACK,TRIM2#

main45286-02720-C0iZVG10..G..AGT202404-202412

BLACK,TRIM0#,2#

main45286-02720-C0iZVG10..G..AGT202404-202412

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM0#,2#

main45286-02720-C0iZVG10..G..AGT202404-202412

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-02640-C0iZSG10..N..SA;ZSG10..J..GEN202110-202411

WIRELESS DOOR LOCK-WITH & WITHOUT(PANIC BUTTON),BLACK,TRIM2#

main45287-02640-C0iZSG10..N..SA;ZSG10..J..GEN202110-202411

BLACK,TRIM2#

main45287-02650-C0iZSG10..N..SA202110-202411

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&WITHOUT(PANIC BUTTON),BLACK,TRIM2#

main45287-02650-C0iZSG10..VN;ZSG10..G..SA;ZVG10..E..PH;ZSG10..LHD..SAP..G;ZSG10..LHD..E..GEN;ZSG10..(MAP,SAP)..E;ZSG10..RHD..THP..(E,G);ZVG10..(MAP,SAP,THP)..(E,G)..(GEN,IDN,MA,SA,TH,202401

BLACK,TRIM2#

main45287-02650-C0iZSG10..VN;ZSG10..G..SA;ZVG10..E..PH;ZSG10..LHD..SAP..G;ZSG10..LHD..E..GEN;ZSG10..(MAP,SAP)..E;ZSG10..RHD..THP..(E,G);ZVG10..(MAP,SAP,THP)..(E,G)..(GEN,IDN,MA,SA,TH,202401

BLACK,TRIM2#,3#

main45287-02650-C0iZSG10,ZVG10..MA202007-202111

BLACK,TRIM2#,3#

main45287-02650-C0iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

BLACK,TRIM2#,3#

main45287-02650-C0iZSG10,ZVG10..MAP..E202007-202410

BLACK,TRIM2#,3#

main45287-02650-C0iZSG10..MAP..G;ZSG10,ZVG10..SAP..(E,G)202007-202411

BLACK,TRIM2#,3#

main45287-02650-C0iZSG10..IDN202007-202212

BLACK,TRIM2#,3#

main45287-02650-C0iZSG10..SAP..N..GEN202110-202411

BLACK,TRIM2#

main45287-02660-C0iZSG10..J..GCC202410

BLACK,TRIM2#,3#

main45287-02660-C0iZSG10..TWP..J202010-202410

BLACK,TRIM2#,3#

main45287-02670-C0iZSG10,ZVG10..TWP..(E,G,N)202410

BLACK,TRIM2#,3#

main45287-02670-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM0#,2#,3#

main45287-02670-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM2#,3#

main45287-02670-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main45287-02670-C0iZSG10,ZVG10..L,M202410

BLACK,TRIM2#

main45287-02710-C0iMXGA10..E..GEN202501

BLACK,TRIM2#

main45287-02710-C0iMXGA10..G,N202501

BLACK,TRIM0#,2#

main45287-02710-C0iMXGA10..G,N;MXGA10..E..AGT202201-202403

BLACK,TRIM0#,2#

main45287-02710-C0iMXGA10..E..GEN202103-202112

BLACK,TRIM0#,2#

main45287-02710-C0iMXGA10..E..GEN202103-202112

BLACK,TRIM2#

main45287-02710-C0iMXGA10..E..GEN202201-202403

BLACK,TRIM2#

main45287-02710-C0iMXGA10..G,N202404-202412

BLACK,TRIM2#

main45287-02710-C0iMXGA10..G,N202404-202412

BLACK,TRIM0#,2#

main45287-02720-C0iMXGA10..E..BZ;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202201-202403

UP GRADE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM0#,2#

main45287-02720-C0iMXGA10..E..BZ;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202201-202403

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM0#,2#

main45287-02720-C0iMXGA10..E..AGT202201-202403

BLACK,TRIM2#

main45287-02720-C0iMXGA10..E..AGT202201-202403

BLACK,TRIM0#,2#

main45287-02720-C0iZVG10..G..AGT202404-202412

BLACK,TRIM2#

main45287-02720-C0iZVG10..G..AGT202404-202412

BLACK,TRIM0#,2#

main45287-02720-C0iZVG10..G..AGT202404-202412

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM0#,2#

main45287-02720-C0iZVG10..G..AGT202404-202412

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM2#

main45287-02720-C0iMXGA10..E..AGT202103-202112

BLACK,TRIM0#,2#

main45287-02720-C0iZVG10..G..AGT202501

BLACK,TRIM2#

main45287-02720-C0iZVG10..G..AGT202501

BLACK,TRIM0#,2#

main45287-02720-C0iZVG10..G..AGT202501

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM0#,2#

main45287-02720-C0iZVG10..G..AGT202501

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM2#

main45287-02720-C0iZVG10..G..AGT202103-202112

BLACK,TRIM2#

main45287-02720-C0iZVG10..G..AGT202103-202112

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON),BLACK,TRIM0#,2#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-05171iMXGA10,ZVG10..BZP¥60202501

main90467-05171iZSG10,ZVG10..MA¥60202007-202111

main90467-05171iMXGA10,ZVG10..BZP¥60202007-202112

main90467-05171iZSG10..IDN¥60202007-202212

main90467-05171iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥60202007-202402

main90467-05171iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥60202007-202410

main90467-05171iZSG10..MAP..G;ZSG10,ZVG10..SAP¥60202007-202411

main90467-05171iMXGA10,ZVG10..BZP¥60202201-202403

main90467-05171iZVG10..TWP..N;ZSG10..RHD..THP;ZVG10..E,G,L,M,R;ZSG10..LHD..E..GEN;ZSG10..(E,G,J)..(GCC,VN);ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..(MAP,SAP,TWP)..(E,M);MXGA10,ZSG10..LHD.¥60202401

45897BOLT, STEERING LOCK SET

main45897-12020iMXGA10..G,N;MXGA10..E..GEN¥210202501

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45897-12020iZVG10..AGT,BZ;MXGA10..E..BZ¥210202007-202107

main45897-12020iZSG10,ZVG10..MA¥210202007-202111

main45897-12020iMXGA10..G,N;ZVG10..BZP..GEN;MXGA10..E..(AGT,GEN)¥210202007-202112

main45897-12020iZSG10,ZVG10..TWP..(E,G,L,M,N)¥210202007-202205

main45897-12020iZSG10,ZVG10..THP..(GEN,IDN,PH,TH,VN)¥210202007-202212

main45897-12020iZVG10..MAP;ZSG10..(MAP,TWP)..(E,J)¥210202007-202410

main45897-12020iZSG10..MAP..G;ZSG10,ZVG10..SAP¥210202007-202411

main45897-12020iMXGA10..G,N;MXGA10..E..(AGT,GEN)¥210202201-202403

UP GRADE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45897-12020iMXGA10..G,N;MXGA10..E..(AGT,GEN)¥210202201-202403

GR SPORT&WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45897-12020iMXGA10..G,N;MXGA10..E..(AGT,GEN)¥210202201-202403

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main45897-12020iMXGA10..G,N;MXGA10..E..GEN¥210202404-202412

main45897-12020iZSG10..J..GCC¥210202404

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iMXGA10,ZVG10..BZP¥190202501

main90119-10981iZSG10,ZVG10..MA¥190202007-202111

main90119-10981iMXGA10,ZVG10..BZP¥190202007-202112

main90119-10981iZSG10..IDN¥190202007-202212

main90119-10981iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥190202007-202402

main90119-10981iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥190202007-202410

main90119-10981iZSG10..MAP..G;ZSG10,ZVG10..SAP¥190202007-202411

main90119-10981iMXGA10,ZVG10..BZP¥190202201-202403

main90119-10981iMXGA10,ZVG10..BZP¥190202401-202412

main90119-10981iZSG10..TH¥190202401-202512

main90119-10981iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥190202401

8401

9011910985

main90119-10985¥100

90167T0012

main90167-T0012

9017810027

main90178-10027¥100

90178T0104

main90178-T0104

91511B0825

main91511-B0825¥140

9356855014

main93568-55014¥70

21 parts on this diagram · 2 diagrams in section
